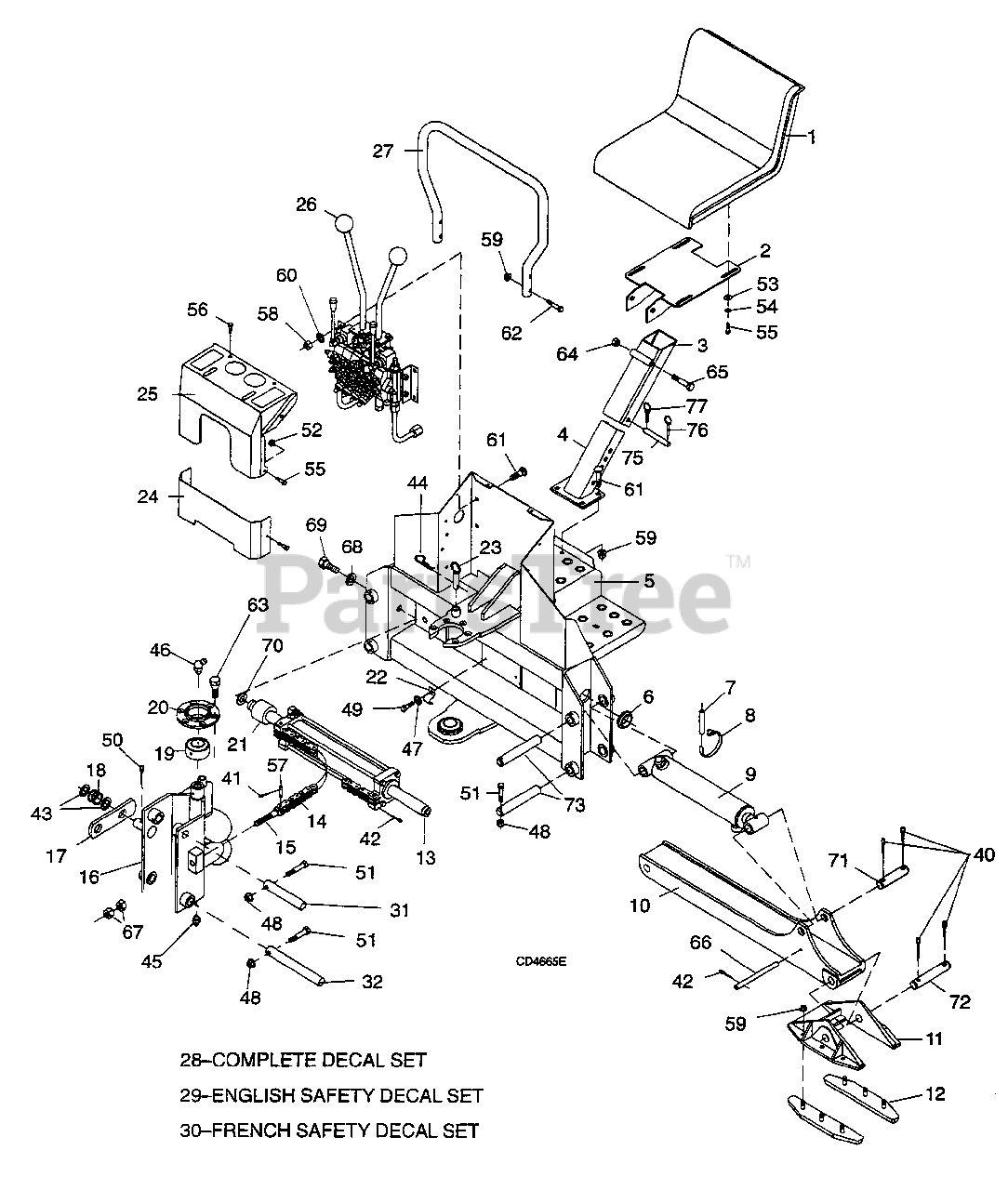

458 (590-458-100) - Cub Cadet Backhoe Main Frame Parts Diagram

Backhoe

Main Frame Parts Diagram

  • Title

1

Cub Cadet WM-33500

High back seat

$

$

Not available

2

Seat bracket

Note: Not serviceable

$

$

Not available

3

Upper seat support

Note: Not serviceable

$

$

Not available

4

Lower seat support

Note: Not serviceable

$

$

Not available

5

Cub Cadet WM-37601

Main frame

$

$

Not available

6

Cub Cadet WM-2

Rubber grommet

$

$

Not available

7

Cub Cadet WM-62321

Hose protector shield

$

$

Not available

8

Cub Cadet WM-34181

2-1/2" - 3-1/2" Hose clamp

$

$

Not available

9

Cub Cadet WM-37593

Hydraulic cylinder, double-acting 2-1/2 x 11

Note: (See "Hydraulic Cylinder" illustration & parts list)

$

$

Not available

10

Cub Cadet WM-37767

Machined stabilizer arm

$

$

Not available

11

Cub Cadet WM-37766

Machined stabilizer pad

$

$

Not available

12

Cub Cadet WM-37614

Stabilizer rubber pad
(Superseded to WM-1006610)

$94.99

$

Usually ships in 3-6 days

0

13

Cub Cadet WM-37594

Hydraulic cylinder, double-acting, 2.50 x 10.63

Note: (See "Hydraulic Cylinder" illustration & parts list)

$

$

Not available

14

Cub Cadet WM-62405

Swing Chain

$

$

Not available

15

Cub Cadet WM-62404

Chain tension bolt

$

$

Not available

16

Cub Cadet WM-37545

Backhoe swing frame
(Superseded to WM-55232)

$1390.99

$

Usually ships in 3-6 days

0

17

Cub Cadet WM-37526

Link - .38 x 2.0 x 7.1

$

$

Not available

18

Cub Cadet WM-62072

Spring - Compression 1.19 x .07 x .627

$

$

Not available

19

Cub Cadet WM-62383

1-1/2 ID Ball bushing

$

$

Not available

20

Cub Cadet WM-62327

Cap weld assembly

$239.99

$

Usually ships in 3-6 days

0

21

Cub Cadet WM-37566

Bumper - 1.25 x 2.25 x 1.75

$

$

Not available

22

Cub Cadet WM-62269

Hose clamp

$

$

Not available

23

Cub Cadet WM-37599

.62 x 3.31 Swing lock pin

$

$

Not available

24

Cub Cadet WM-38678

11 GA x 5.13 x 12.9 Cover

$

$

Not available

25

Cub Cadet WM-38651

Cub Cadet console cover

$

$

Not available

26

Valve and console assembly

$

$

Not available

27

Cub Cadet WM-37600

1.05 x 13.3 x 15.5 Handle

$

$

Not available

28

Complete English decal set

$

$

Not available

29

Cub Cadet 38627

English safety decal set

$

$

Currently unavailable

30

Cub Cadet 58627

French safety decal set

$

$

Currently unavailable

31

Cub Cadet 62292

Bar Dr 1.00 x 4.55 x 6.00

$

$

Currently unavailable

32

Cub Cadet 37690

Bar Dr 1.00 x 7.30 x 7.69

$

$

Currently unavailable

40

Cub Cadet WM-1266

3/16 x 1-1/2 Cotter pin
(Superseded to 714-0142)

$6.49

$

Usually ships in 3-6 days

0

41

Cub Cadet WM-3145

3/32 x 1/2 Cotter pin

Note: Obtain Locally

$

$

Currently unavailable

42

Cub Cadet WM-62531

3/32 x 1-1/2 Cotter pin

Note: Obtain Locally

$

$

Not available

43

Cub Cadet WM-62075

10 GA x 1 Bushing

$

$

Not available

44

Cub Cadet WM-15036

3/16 Safety pin

$

$

Not available

45

Cub Cadet WM-1972

1/4-28 Tapered thread grease fitting
(Superseded to 937-0146)

Note: Obtain Locally

$5.49

$

In Stock, only 2 left!

0

46

Cub Cadet WM-3584

45ø 1/4 Tapered thread grease fitting

$

$

Not available

47

Cub Cadet WM-1985

1/4 Standard lockwasher
(Superseded to 936-0329)

Note: Obtain Locally

$4.49

$

In Stock, Qty 11

0

48

Cub Cadet WM-6128

1/4 NC Hex locknut
(Superseded to 912-0117)

Note: Obtain Locally

$2.49

$

In Stock, only 2 left!

0

49

Cub Cadet WM-2457

1/4 NC x 3/4 Hex head cap screw GR5

Note: Obtain Locally

$

$

Not available

50

Cub Cadet WM-1285

1/4 x 1-1/2 Cotter pin

Note: Obtain Locally

$

$

Currently unavailable

51

Cub Cadet WM-37531

1/4 NC x 2-1/4 Hex head cap screw GR8

$

$

Not available

52

Cub Cadet WM-14139

5/16 NC Flange locknut

$

$

Not available

53

Cub Cadet WM-4378

5/16 Standard flat washer

Note: Obtain Locally

$

$

Currently unavailable

54

Cub Cadet WM-2472

5/16 Standard lockwasher
(Superseded to 936-0119)

Note: Obtain Locally

$4.99

$

In Stock, Qty 20+

0

55

Cub Cadet WM-6096

5/16 NC x 3/4 Hex head cap screw GR5
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet WM-27610

.31 x .75 Sheet metal screw

$

$

Not available

57

Cub Cadet WM-62399

.312 x 1.45 Chain pin

$16.99

$

Usually ships in 3-6 days

0

58

Cub Cadet WM-835

3/8 NC Hex nut plated
(Superseded to 712-0798)

Note: Obtain Locally

$4.49

$

In Stock, only 2 left!

0

59

Cub Cadet WM-14350

3/8 NC Flange hex locknut

$

$

Not available

60

Cub Cadet WM-838

3/8 Standard lockwasher

Note: Obtain Locally

$3.99

$

Usually ships in 3-6 days

0

61

Cub Cadet WM-6697

3/8 NC x 1 Carriage bolt GR5

Note: Obtain Locally

$

$

Not available

62

Cub Cadet WM-62528

7/16 NF Hex locknut

Note: Obtain Locally

$

$

Not available

63

Cub Cadet WM-21016

7/16 NF x 1-1/4 Wheel bolt

$

$

Not available

64

Cub Cadet WM-765

1/2 NC Hex locknut

Note: Obtain Locally

$

$

Not available

65

Cub Cadet WM-10380

1/2 NC x 4 Hex head cap screw GR5

Note: Obtain Locally

$

$

Not available

66

Cub Cadet WM-37544

.50 x 4.45 Headless pin

$

$

Not available

67

Cub Cadet WM-230

5/8 NC Hex nut
(Superseded to 912-3015)

Note: Obtain Locally

$4.99

$

In Stock, only 2 left!

0

68

Cub Cadet WM-2522

3/4 Standard lockwasher
(Superseded to 936-0364)

Note: Obtain Locally

$

$

Not available

69

Cub Cadet WM-4616

3/4 NC x 1-1/2 Hex head cap screw HT

$

$

Not available

70

Cub Cadet WM-11204

13/16 x .010 Shim washer

$

$

Not available

71

Cub Cadet WM-53910

1.0 x 3.80 Headless pin

$

$

Not available

72

Cub Cadet WM-53920

1.0 x 5.84 Headless pin

$

$

Not available

73

Cub Cadet WM-62295

1.00 x 5.92 x 6.31 Drilled bar

$

$

Not available

?74

Cub Cadet WM-976

3/8 NC x 3.80 Hex head cap screw GR5

Note: Obtain Locally

$

$

Currently unavailable

75

UNKNOWN

$

$

Not available

76

UNKNOWN

$

$

Not available

77

UNKNOWN

$

$

Not available
