458 (590-458-100) - Cub Cadet Backhoe 2-1/2" Hydraulic Cylinder - Stabilizer Parts Diagram

Backhoe

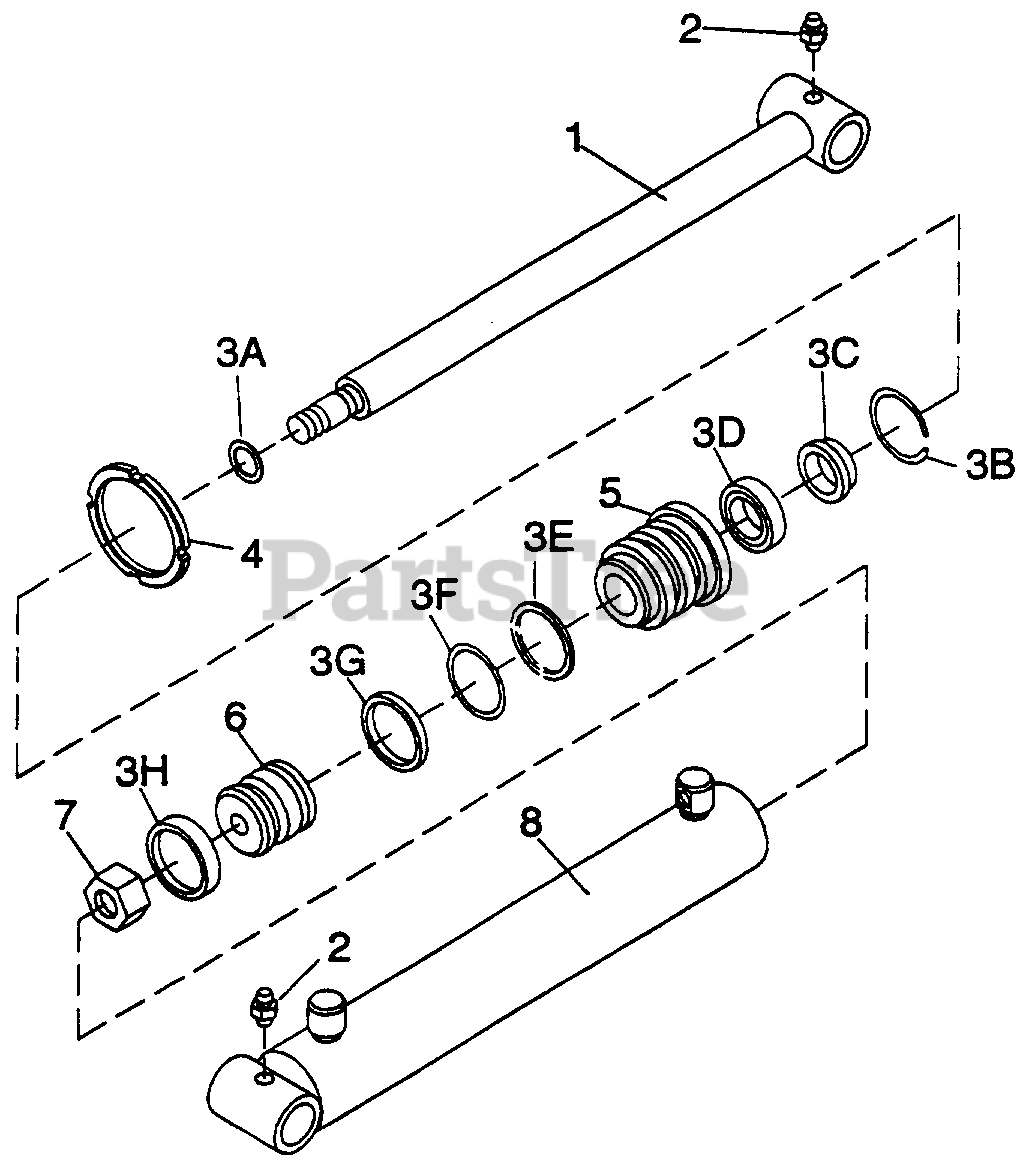

2-1/2" Hydraulic Cylinder - Stabilizer Parts Diagram

  • Title

Cub Cadet WM-37593

Complete hydraulic cylinder

$

$

Not available

1

Cub Cadet WM-37868

Piston rod

$218.99

$

In Stock, only 2 left!

0

2

Grease fitting

Note: Not Serviceable

$

$

Not available

?3

Cub Cadet WM-37865

Seal kit

Note: (Includes 3A - 3H)

$

$

Not available

3A

3/4 x 7/8 O-Ring

$

$

Not available

3B

2-1/2 Internal retaining ring

$

$

Not available

3C

1-1/4 Wiper ring

$

$

Not available

3D

1-1/4 x 1-5/8 x 5/16 U-Cupseal

$

$

Not available

3E

2-1/4 x 2-1/2 Backup ring

$

$

Not available

3F

2-1/4 x 2-1/2 O-Ring

$

$

Not available

3G

2-1/2 Piston seal

$

$

Not available

3H

2-1/2 x 1/4 x 1/8 Wear ring

$

$

Not available

4

Cub Cadet WM-64978

1/4 x 2-7/8 Spanner nut

$

$

Not available

5

Cub Cadet WM-64935

2-1/2 OD x 1-1/4 ID Guide

$

$

Not available

6

Cub Cadet WM-37866

2-1/2 OD Piston

$

$

Not available

7

Cub Cadet WM-64874

7/8 NF - 14 Locknut
(Superseded to 712-0682)

$13.99

$

Usually ships in 3-6 days

0

8

2-1/2 ID Cylinder body

Note: Not Serviceable

$

$

Not available
