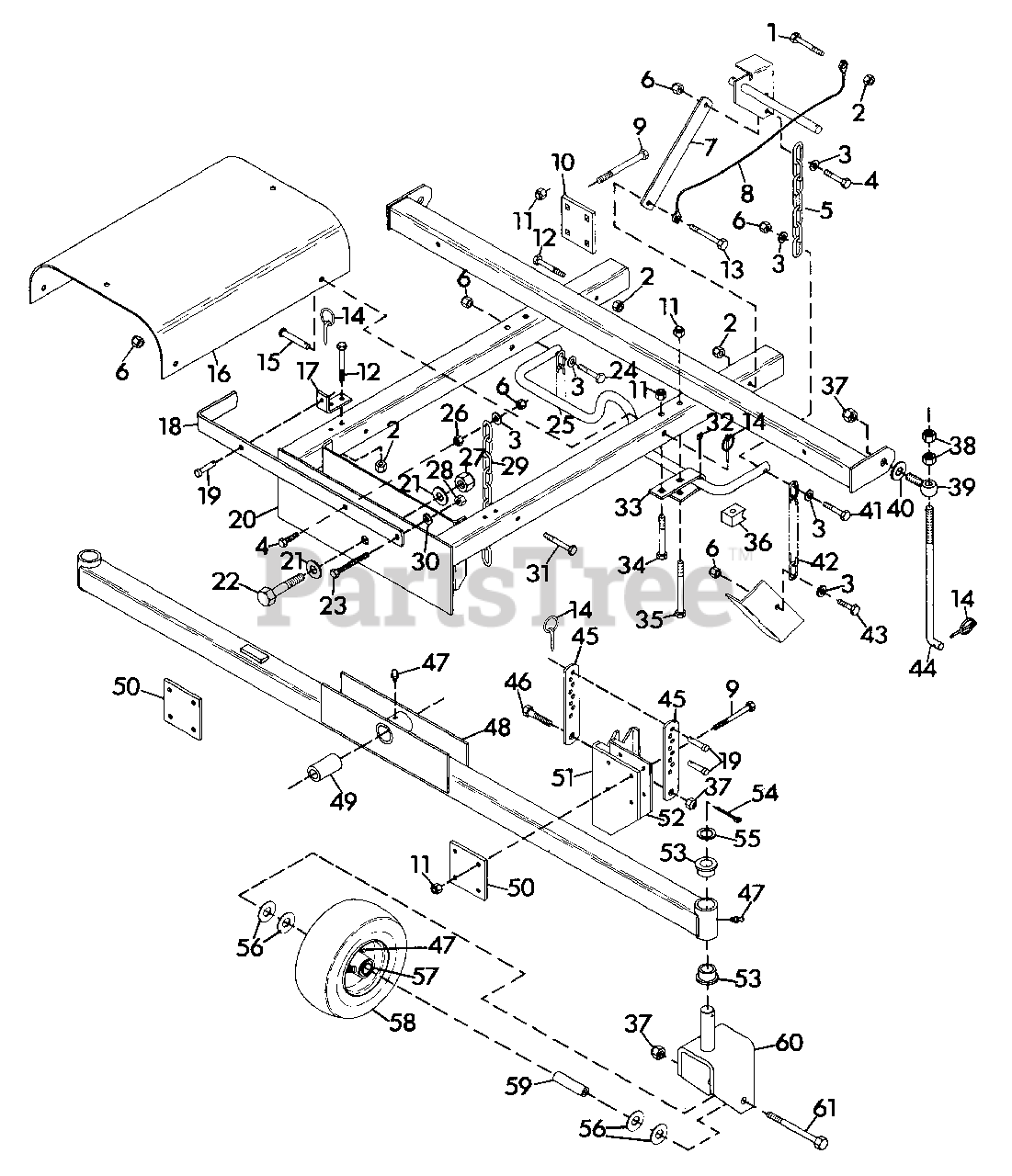

45764 - Gravely 50" Deck for Gear Drive Pro-Master Mower MOWER FRAME Parts Diagram

50" Deck for Gear Drive Pro-Master Mower

MOWER FRAME Parts Diagram

  • Title
1

Gravely 181621

Bolt, Hex 5/16-24x2.25
(Superseded to 05937100)

$

$

Not available

2

Gravely 190139

Nut, Lock 5/16-24
(Superseded to 06526500)

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 180081

Bolt, Hex 5/16-18x1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

5

Gravely 037041

Chain, Lift
(Superseded to 09031400)

$

$

Not available

6

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 035659

Bar, Deck Lift
(Superseded to 08923200)

$

$

Not available

8

Gravely 035517

Cable, Stop
(Superseded to 06924900)

$

$

Not available

9

Gravely 189304

Bolt, Hex 3/8-16x3.25
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

10

Gravely 035628

Plate, Attachment Clamp
(Superseded to 08737953)

$

$

Not available

11

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

12

Gravely 181623

Bolt, Hex 5/16-24x2.75
(Superseded to 05937200)

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 189323

Bolt, Hex 5/16-24x3.5
(Superseded to 05938700)

$

$

Not available

14

Gravely 023468

Klik Pin
(Superseded to 07014500)

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 022113

Pin, Clevis 3/8x2.62
(Superseded to 06811100)

$

$

Not available

16

Gravely 035447

Guard, PTO Shaft
(Superseded to 08915900)

$

$

Not available

17

Gravely 035685

Bracket, Lift Pivot
(Superseded to 08923800)

$

$

Not available

18

Gravely 035684

Bar, Lift
(Superseded to 08923700)

$

$

Not available

19

Gravely 035683

Pin, Clevis
(Superseded to 06810500)

$

$

Not available

20

Gravely 038068

Weldment, Mower Frame
(Superseded to 08926800)

$

$

Not available

21

Gravely 035640

Washer, Flat .812x1.469x.130
(Superseded to 06427600)

$5.99

$

In Stock, only 1 left!

0

22

Gravely 271781

Bolt, Hex 3/4-10x4.50
(Superseded to 05968800)

$9.49

$

In Stock, only 1 left!

0

23

Gravely 014718

Bolt, Hex 3/8-16x3.00 Special
(Superseded to 05901815)

$3.49

$

In Stock, only 1 left!

0

24

Gravely 180083

Bolt, Hex 5/16-18x1.50
(Superseded to 05901710)

$1.49

$

In Stock, Qty 12

0

25

Gravely 035656

Arm, Pivot
(Superseded to 09027800)

$41.99

$

Usually ships in 4-12 days

0

26

Gravely 124824

Nut, Jam 5/16-18
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 456007

Nut, Lock 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

28

Gravely 124829

Nut, Jam 3/8-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 038255

Chain, Height Adjustment
(Superseded to 09031600)

$

$

Not available

30

Gravely 120382

Washer, Lock 3/8
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 180091

Bolt, Hex 5/16-18x2.50
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 120123

Pin, Cotter 1/8x1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 011264

Bracket, Axle Support
(Superseded to 03349000)

$16.99

$

Usually ships in 4-12 days

0

34

Gravely 180138

Bolt, Hex 3/8-16x3.00
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

35

Gravely 191163

Bolt, Hex 3/8-16x4.00
(Superseded to 05965400)

$3.99

$

In Stock, only 1 left!

0

36

Gravely 011260

Stop, Nylon
(Superseded to 07519500)

$10.99

$

In Stock, only 2 left!

0

37

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

38

Gravely 120238

Nut, Jam 1/2-13 Hex
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 035165

Bolt, Eye
(Superseded to 07015300)

$32.99

$

In Stock, only 1 left!

0

40

Gravely 120389

Washer, Flat .500x1.250x.083
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

41

Gravely 180085

Bolt, Hex 5/16-18x1.75
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

42

Gravely 035663

Chain, Lift
(Superseded to 00921200)

$

$

Not available

43

Gravely 180079

Bolt, Hex 5/16-18x1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 035690

Rod, Height Adjustment
(Superseded to 08599000)

$93.99

$

Usually ships in 4-12 days

0

45

Gravely 035686

Strap, Adjustment
(Superseded to 08923900)

$

$

Not available

46

Gravely 180181

Bolt, Hex 1/2-13x2.00
(Superseded to 05901929)

$

$

Not available

47

Gravely 411027

Fitting, Lube 1/4-28
(Superseded to 07012600)

$

$

Not available

48

Gravely 038067

Weldment, Axle
(Superseded to 08926700)

$

$

Not available

49

Gravely 034920

Tube, Pivot
(Superseded to 08911800)

$

$

Not available

50

Gravely 035497

Plate, Adjustment Clamp
(Superseded to 08737853)

$

$

Not available

51

Gravely 035698

Plate, Height Adjustment-L.H.
(Superseded to 08924500)

$

$

Not available

51

Gravely 035697

Plate, Height Adjustment-R.H.
(Superseded to 08924400)

$

$

Not available

52

Gravely 035696

Plate, Height Adjustment-L.H.
(Superseded to 08924300)

$

$

Not available

52

Gravely 035695

Plate, Height Adjustment-R.H.
(Superseded to 08924200)

$

$

Not available

53

Gravely 018355

Bushing, Pivot
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

54

Gravely 137253

Pin, Cotter .187x1.62
(Superseded to 06705800)

$2.99

$

Usually ships in 4-12 days

0

55

Gravely 019340

Race, Bearing Thrust
(Superseded to 06435300)

$4.99

$

Usually ships in 4-12 days

0

56

Gravely 415543

Washer, Flat .531x1.250x.100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

57

Gravely 037823

Bearing, Gauge Wheel
(Superseded to 05408900)

$18.99

$

In Stock, only 3 left!

0

58

Gravely 045205

Wheel, Gauge
(Superseded to 07130100)

$108.99

$

In Stock, only 4 left!

0

59

Gravely 011950

Bushing, Wheel .520x.750x3.312
(Superseded to 09023500)

$25.99

$

Usually ships in 4-12 days

0

60

Gravely 045523

Weldment, Caster Fork
(Superseded to 08969153)

$

$

Not available

61

Gravely 433163

Bolt, Hex 1/2-13x5.00
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

Gravely 034648

Decal, Pro Master-60
(Superseded to 05209300)

$

$

Not available
