45764 - Gravely 50" Deck for Gear Drive Pro-Master Mower MOWER DRIVE Parts Diagram

50" Deck for Gear Drive Pro-Master Mower

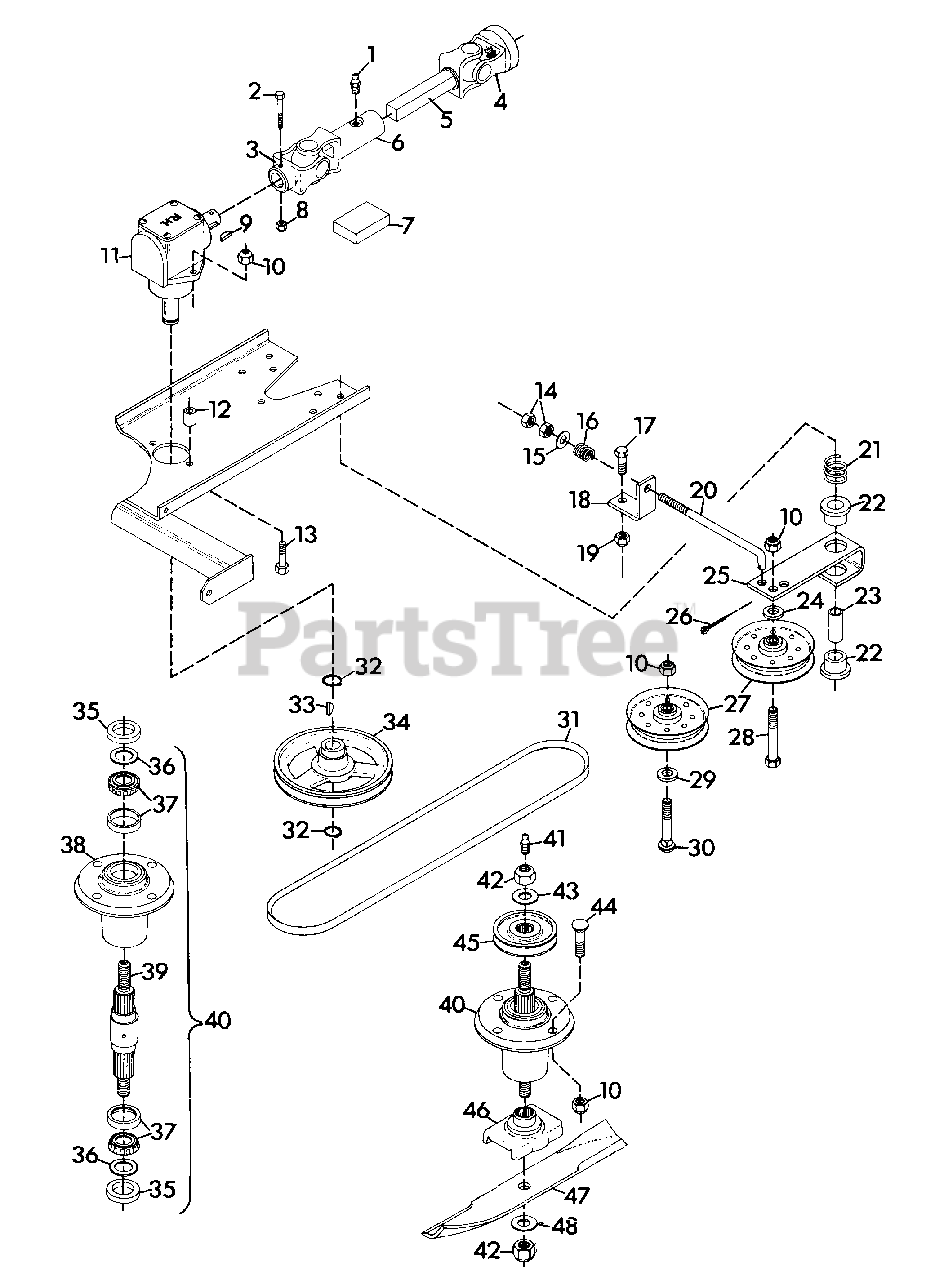

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 411027

Fitting, Lube 1/4-28
(Superseded to 07012600)

$

$

Not available

2

Gravely 180044

Bolt, Hex 1/4-20x2.00
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 045955

Yoke
(Superseded to 20823300)

$

$

Not available

4

Gravely 045954

Yoke
(Superseded to 20823200)

$258.99

$

Usually ships in 4-12 days

0

5

Gravely 031389

Shaft, Prop. Sq. Bar
(Superseded to 08729300)

$

$

Not available

6

Gravely 038065

Assembly, U-Joint
(Superseded to 08926651)

$

$

Not available

7

Gravely 012134

Kit, Repair U-Joint(Rockwell)
(Superseded to 03155800)

Note: (Rockwell)

$

$

Not available

Gravely 024560

Kit, Repair U-Joint(Neapco)
(Superseded to 03155800)

Note: (Neapco)

$

$

Not available

8

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

9

Gravely 124549

Key, Woodruff .187x.75 Hard #9
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

11

Gravely 038066

Gearbox, Pro Master-50
(Superseded to 09031000)

$

$

Not available

12

Gravely 010908

Spacer, .375x.100x1.00
(Superseded to 08707800)

$87.99

$

Usually ships in 4-12 days

0

13

Gravely 180132

Bolt, Hex 3/8-16x2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

14

Gravely 120369

Nut, Hex 3/8-24
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

15

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 011779

Spring, Compression
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

17

Gravely 180176

Bolt, Hex 1/2-13x1.375
(Superseded to 05935800)

$

$

Not available

18

Gravely 034431

Support, Spring
(Superseded to 08537000)

$22.99

$

Usually ships in 4-12 days

0

19

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

20

Gravely 021111

Rod, Idler
(Superseded to 08598300)

$42.99

$

Usually ships in 4-12 days

0

21

Gravely 020444

Spring, Compression
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

22

Gravely 010174

Bushing, Nylon .760x1.00x.600
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

23

Gravely 034119

Spacer
(Superseded to 08820500)

$17.99

$

In Stock, only 1 left!

0

24

Gravely 014672

Spacer, Idler .406x.750x.188
(Superseded to 03488200)

$5.99

$

In Stock, Qty 6

0

25

Gravely 034120

Arm, Idler Pivot
(Superseded to 08905900)

$82.99

$

Usually ships in 4-12 days

0

26

Gravely 121224

Pin, Cotter .09x1.00

$0.99

$

Usually ships in 4-12 days

0

27

Gravely 021060

Sheave, Idler
(Superseded to 07314800)

$39.99

$

In Stock, Qty 5

0

28

Gravely 180130

Bolt, Hex 3/8-16x2.00
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

29

Gravely 120388

Washer, Flat .438x1.000x.083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 126416

Bolt, 3/8-16x1.75 Rd Hd Sq Nk
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

31

Gravely 011216

Belt, V .500x.312x126.3
(Superseded to 07219600)

$80.99

$

In Stock, only 4 left!

0

32

Gravely 022080

Ring, Retaining .875 Shaft
(Superseded to 05713900)

$3.49

$

Usually ships in 4-12 days

0

33

Gravely 124551

Key, Woodruff .250x.875 Hard #A
(Superseded to 06608800)

$3.99

$

Usually ships in 4-12 days

0

34

Gravely 035700

Sheave, Drive
(Superseded to 07317900)

$

$

Not available

35

Gravely 021211

Seal, Steel
(Superseded to 08722600)

$15.99

$

In Stock, only 1 left!

0

36

Gravely 020743

Washer, Flat .975x1.970x.030
(Superseded to 06426900)

$5.99

$

In Stock, Qty 11

0

37

Gravely 038199

Assembly, Bearing Cup and Cone
(Superseded to 21245800)

$25.99

$

In Stock, Qty 20+

0

38

Gravely 021215

Housing, Bearing
(Superseded to 08722700)

$134.99

$

Usually ships in 4-12 days

0

39

Gravely 021216

Shaft, Spindle
(Superseded to 58802800)

$85.99

$

In Stock, only 1 left!

0

40

Gravely 021306

Assembly, Spindle
(Superseded to 58803600)

$262.99

$

In Stock, only 1 left!

0

41

Gravely 411010

Fitting, Lube 1/8(Left and Right Spindle)
(Superseded to 07012500)

Note: (Left and Right Spindle)

$3.99

$

In Stock, only 1 left!

0

41

Gravely 021214

Fitting, Lube .125 Ext.(Center Spindle)
(Superseded to 07012100)

Note: (Center Spindle)

$

$

Not available

42

Gravely 418692

Nut, Lock 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

43

Gravely 033845

Washer, Flat .687x1.312x.122
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

44

Gravely 126402

Bolt, 3/8-16x1.25 Rd Hd Sq Nk
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

45

Gravely 043366

Sheave, Spindle
(Superseded to 08896000)

$

$

Not available

46

Gravely 023026

Weldment, Blade Cradle
(Superseded to 08798300)

$155.99

$

Usually ships in 4-12 days

0

47

Gravely 011234

Blade
(Superseded to 08861600)

$23.99

$

In Stock, Qty 20+

0

48

Gravely 131016

Washer, Flat .656x1.312x.095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

38069

Assembly, Pro Master-50 Drive

$

$

Not available

Gravely 36799

Spring

$

$

Currently unavailable

Gravely 36800

Collar, Locking

$

$

Currently unavailable

Gravely 36801

Ring, Snap

$

$

Currently unavailable

Gravely 145643

Ball, Detent
(Superseded to 05429800)

$3.49

$

Usually ships in 4-12 days

0
