45764 - Gravely 50" Deck for Gear Drive Pro-Master Mower MOWER DECK Parts Diagram

50" Deck for Gear Drive Pro-Master Mower

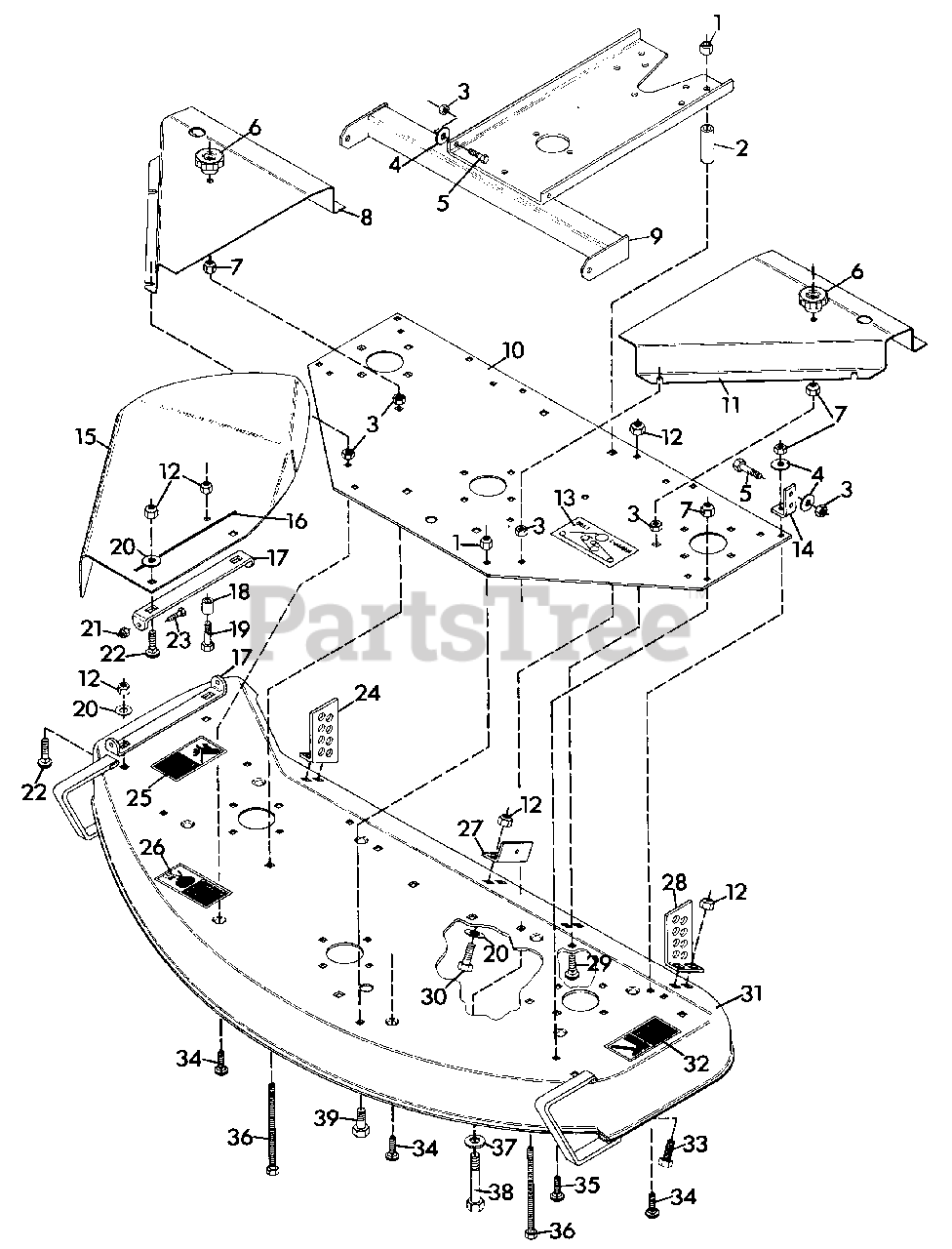

MOWER DECK Parts Diagram

  • Title
1

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

2

Gravely 019348

Spacer, .510x.840x2.43
(Superseded to 08510400)

$33.99

$

Usually ships in 4-12 days

0

3

Gravely 124824

Nut, Jam 5/16-18 Hex
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 120393

Washer, Flat .344x.688x.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 180081

Bolt, Hex 5/16-18x1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

6

Gravely 041674

Knob
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

7

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 040196

Cover, Pulley R.H.
(Superseded to 08933500)

$

$

Not available

9

Gravely 038539

Weldment, Plate Support
(Superseded to 08928100)

$

$

Not available

10

Gravely 040201

Plate, Support
(Superseded to 08850153)

$220.99

$

Usually ships in 4-12 days

0

11

Gravely 040195

Cover, Pulley L.H.
(Superseded to 08933400)

$

$

Not available

12

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

13

Gravely 011715

Decal, Belt Installation
(Superseded to 05216600)

$22.99

$

Usually ships in 4-12 days

0

14

Gravely 035685

Bracket, Lift Pivot
(Superseded to 08923800)

$

$

Not available

15

Gravely 038675

Shield, Safety Extension

$

$

Not available

16

Gravely 038769

Stripe
(Superseded to 07852100)

$9.99

$

Usually ships in 4-12 days

0

17

Gravely 045641

Bracket, Chute
(Superseded to 08827653)

$

$

Not available

18

Gravely 038696

Stop, Chute
(Superseded to 05525700)

$7.49

$

In Stock, only 1 left!

0

19

Gravely 180126

Bolt, Hex 3/8-16x1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

20

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

22

Gravely 120915

Bolt, 3/8-16x1.00 Rd Hd Sq Nk

$

$

Not available

23

Gravely 180021

Bolt, Hex 1/4-20x.875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

24

Gravely 037809

Plate, Rear Adjustment
(Superseded to 08925500)

$5.99

$

Usually ships in 4-12 days

0

25

Gravely 033926

Decal, Danger Hand
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

26

Gravely 033928

Decal, Warning Eye
(Superseded to 05350200)

$31.99

$

Usually ships in 4-12 days

0

27

Gravely 037039

Bracket, Lift
(Superseded to 08924800)

$

$

Not available

28

Gravely 037810

Plate, Rear Adjustment
(Superseded to 08925600)

$5.99

$

Usually ships in 4-12 days

0

29

Gravely 126227

Bolt, Carriage 3/8-16x.75
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

30

Gravely 180122

Bolt, Hex 3/8-16x1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 045754

Weldment, 50" Mower Deck
(Superseded to 58502600)

$517.99

$

Usually ships in 4-12 days

0

32

Gravely 033927

Decal, Danger Foot
(Superseded to 05350100)

$

$

Not available

33

Gravely 180124

Bolt, Hex 3/8-16x1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 126358

Bolt, Carriage 5/16-18x1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 126216

Bolt, Carriage 5/16-18x.75

$

$

Not available

36

Gravely 040193

Bolt, Hex 5/16-18x3.50
(Superseded to 06200411)

$5.99

$

Usually ships in 4-12 days

0

37

Gravely 120396

Washer, Flat .531x1.062x.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 180193

Bolt, Hex 1/2-13x3.75
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

39

Gravely 180175

Bolt, Hex 1/2-13x1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

Gravely 038189

Decal, Pro Master-50
(Superseded to 20645700)

$

$

Not available
