4571 - Lawn-Boy Walk-Behind Mower (SN: B00000001 - B99999999) (1983) Deck, Gas Tank And Handle Group Model 6259 Parts Diagram

Walk-Behind Mower

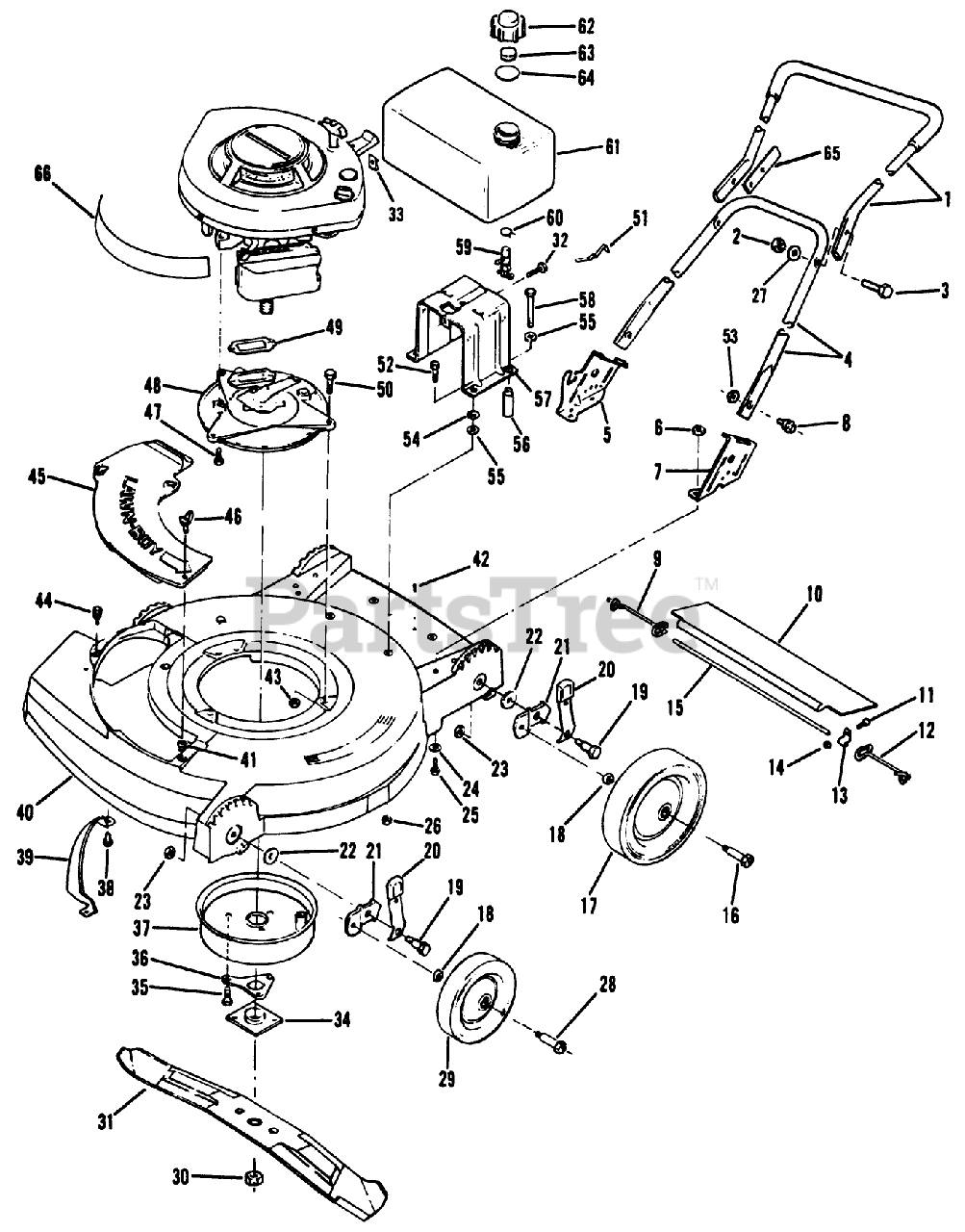

Deck, Gas Tank And Handle Group Model 6259 Parts Diagram

  • Title

1

Lawn-Boy 682268

Top Handle Grip Assy

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Currently unavailable

2

Lawn-Boy 602315

LOCKNUT E

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$4.99

$

In Stock, only 2 left!

0

3

Lawn-Boy 610359

DISCONTINUED

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

4

Lawn-Boy 610575

Handle Bottom

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Currently unavailable

5

Lawn-Boy 610350

See Supercession: 683599
(Superseded to 683599)

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

6

Lawn-Boy 608311

NUT-LOCK F

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$3.49

$

Usually ships in 3-6 days

0

7

Lawn-Boy 610353

See Supercession: 613587
(Superseded to 613587)

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

8

Lawn-Boy 610357

BOLT

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

9

Lawn-Boy 608497

SPRING;TRAILING SHIELD RH

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

10

Lawn-Boy 611016

T/SHIELD GEAUGA

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$102.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

12

Lawn-Boy 608498

SPRIG T/SHLD ASOC

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

13

Lawn-Boy 608161

CLAMP ROD KMC

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$11.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 602315

LOCKNUT E

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$4.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 608174

ROD 21" ADVANCE

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

16

Lawn-Boy 603567

BOLT-SHOULDER

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$15.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 678406

See Supercession: 681980
(Superseded to 681980)

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$68.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 603620

WASHER WROUGHT

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$5.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 608835

See Supercession: 610646
(Superseded to 610646)

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$7.49

$

Usually ships in 3-6 days

0

20

Lawn-Boy 681229

DISCONTINUED

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

21

Lawn-Boy 608833

See Supercession: 608833-03
(Superseded to 608833-03)

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$27.99

$

In Stock, only 2 left!

0

22

Lawn-Boy 608834

WASHER

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$14.99

$

In Stock, only 2 left!

0

23

Lawn-Boy 603773

LOCKNUT

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$2.99

$

In Stock, Qty 8

0

24

Lawn-Boy 609923

WASHER

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

25

Lawn-Boy 610356

DISCONTINUED

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

26

Lawn-Boy 602315

LOCKNUT E

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$4.99

$

In Stock, only 2 left!

0

27

Lawn-Boy 609739

WASHER-CURVED

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$3.49

$

In Stock, Qty 8

0

28

Lawn-Boy 610178

DISCONTINUED

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

29

Lawn-Boy 678513

DISCONTINUED

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

30

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$5.99

$

In Stock, only 1 left!

0

31

Lawn-Boy 611240

See Supercession: 612543-03
(Superseded to 612543-03)

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$33.99

$

In Stock, only 3 left!

0

31

Lawn-Boy 611240

See Supercession: 612543-03
(Superseded to 612543-03)

Note: IN "REFERENCE NO." COLUMN.

$33.99

$

In Stock, only 3 left!

0

31

Lawn-Boy 611240

See Supercession: 612543-03
(Superseded to 612543-03)

Note: PART NUMBERS NEW FOR THIS MODEL YEAR CAN BE IDENTIFIED BY THE BOX SYMBOL

$33.99

$

In Stock, only 3 left!

0

32

Lawn-Boy 602192

SCREW S

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

33

Lawn-Boy 609900

NUT-SPEED

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$9.49

$

Usually ships in 3-6 days

0

34

Lawn-Boy 677525

PLATE AND COLLAR ASM

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$51.99

$

In Stock, only 1 left!

0

35

Lawn-Boy 609471

SCREW

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$4.99

$

In Stock, Qty 14

0

36

Lawn-Boy 609786

SUPPORT F

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$23.99

$

In Stock, only 2 left!

0

37

Lawn-Boy 682876

MUFFLER COVER F

Note: PART NUMBERS NEW FOR THIS MODEL YEAR CAN BE IDENTIFIED BY THE BOX SYMBOL

$165.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 682876

MUFFLER COVER F

Note: IN "REFERENCE NO." COLUMN.

$165.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 682876

MUFFLER COVER F

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$165.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 608418

See Supercession: 46-6811
(Superseded to 46-6811)

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$3.49

$

In Stock, only 3 left!

0

39

Lawn-Boy 608175

BAR-TOE

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$77.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 682754

DISCONTINUED

Note: IN "REFERENCE NO." COLUMN.

$

$

Not available

40

Lawn-Boy 682754

DISCONTINUED

Note: PART NUMBERS NEW FOR THIS MODEL YEAR CAN BE IDENTIFIED BY THE BOX SYMBOL

$

$

Not available

40

Lawn-Boy 682754

DISCONTINUED

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

41

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$1.49

$

In Stock, Qty 9

0

42

Lawn-Boy 602175

DISCONTINUED

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

43

Lawn-Boy 608311

NUT-LOCK F

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$3.49

$

Usually ships in 3-6 days

0

44

Lawn-Boy 607809

See Supercession: 614677
(Superseded to 614677)

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$4.49

$

In Stock, Qty 12

0

45

Lawn-Boy 607560

See Supercession: 95-7052
(Superseded to 95-7052)

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$36.99

$

In Stock, only 1 left!

0

46

Lawn-Boy 606733

WING SCREW LAWRE

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$9.99

$

In Stock, Qty 6

0

47

Lawn-Boy 607601

SCREW V

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$4.49

$

In Stock, only 2 left!

0

48

Lawn-Boy 609119

DISCONTINUED

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

49

Lawn-Boy 609420

See Supercession: 93-1233
(Superseded to 93-1233)

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$1.99

$

In Stock, Qty 6

0

50

Lawn-Boy 604862

SCREW

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

51

Lawn-Boy 609830

SPRING

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$5.49

$

In Stock, Qty 6

0

52

Lawn-Boy 609763

DISCONTINUED

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

53

Lawn-Boy 610358

NUT-JAM, LOCKING

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$2.99

$

In Stock, only 2 left!

0

54

Lawn-Boy 604995

DISCONTINUED

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

55

Lawn-Boy 602945

WASHER

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

56

Lawn-Boy 609762

DISCONTINUED

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

57

Lawn-Boy 611260

DISCONTINUED

Note: PART NUMBERS NEW FOR THIS MODEL YEAR CAN BE IDENTIFIED BY THE BOX SYMBOL

$108.99

$

In Stock, only 1 left!

0

57

Lawn-Boy 611260

DISCONTINUED

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$108.99

$

In Stock, only 1 left!

0

57

Lawn-Boy 611260

DISCONTINUED

Note: IN "REFERENCE NO." COLUMN.

$108.99

$

In Stock, only 1 left!

0

58

Lawn-Boy 606144

BOLT PIONEER

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

59

Lawn-Boy 677052

VALVE&SCREEN SM

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$23.99

$

In Stock, only 2 left!

0

60

Lawn-Boy 312387

CLAMP - HOSE S

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$1.49

$

In Stock, Qty 8

0

61

Lawn-Boy 609829

See Supercession: 145476
(Superseded to 145476)

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

62

Lawn-Boy 682900

See Supercession: 682755
(Superseded to 682755)

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$25.99

$

In Stock, only 1 left!

0

62

Lawn-Boy 682900

See Supercession: 682755
(Superseded to 682755)

Note: IN "REFERENCE NO." COLUMN.

$25.99

$

In Stock, only 1 left!

0

62

Lawn-Boy 682900

See Supercession: 682755
(Superseded to 682755)

Note: PART NUMBERS NEW FOR THIS MODEL YEAR CAN BE IDENTIFIED BY THE BOX SYMBOL

$25.99

$

In Stock, only 1 left!

0

63

Lawn-Boy 607213

GASKET S

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$1.99

$

In Stock, Qty 20+

0

64

Lawn-Boy 609150

BAFFLE - FOAM SM

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$6.49

$

In Stock, Qty 11

0

65

Lawn-Boy 610024

DISCONTINUED

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

66

Lawn-Boy 610520

DISCONTINUED

Note: Painted, Plastic, Fiberglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available
