457 (590-457-000) - Cub Cadet Backhoe Main Frame Assembly 457 Backhoe Parts Diagram

Backhoe

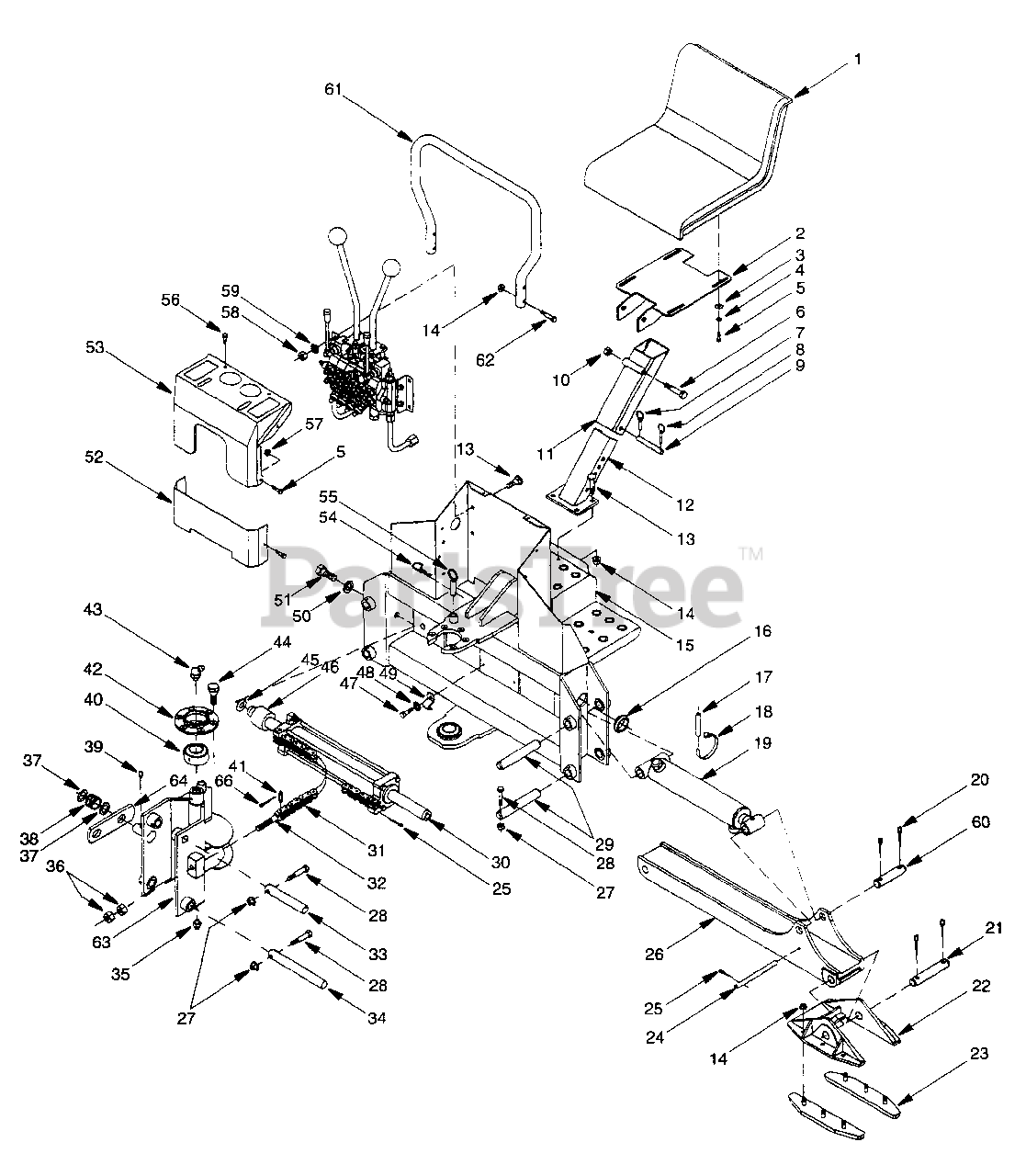

Main Frame Assembly 457 Backhoe Parts Diagram

  • Title

1

Cub Cadet WM-33500

High Back Seat

$

$

Not available

2

Cub Cadet WM-37570

Seat Bracket

$

$

Not available

3

Cub Cadet WM-4378

Flat Washer, 5/16

Note: Obtain Locally

$

$

Currently unavailable

4

Cub Cadet WM-2472

Lockwasher, 5/16
(Superseded to 936-0119)

Note: Obtain Locally

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet WM-6096

Hex Hd Cap Screw, 5/16NC x 3/4 GR5
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet WM-10380

Hex Hd Cap Screw, 1/2 NC x 4 GR5

Note: Obtain Locally

$

$

Not available

7

Cub Cadet WM-22411

Klik Pin, 3/16 x 1
(Superseded to 753-04070)

$9.99

$

In Stock, Qty 20+

0

8

Cub Cadet WM-62992

Split Ring, .11 x 1.1 OD

$

$

Not available

9

Cub Cadet WM-13817

Headless Pin, .5 x 3.78

$

$

Not available

10

Cub Cadet WM-765

Hex Locknut, 1/2 NC

Note: Obtain Locally

$

$

Not available

11

Cub Cadet WM-37412

Upper Seat Support

$

$

Not available

12

Cub Cadet WM-37410

Lower Seat Support

$

$

Not available

13

Cub Cadet WM-6697

Carriage Bolt, 3/8 x 1 GR5

Note: Obtain Locally

$

$

Not available

14

Cub Cadet WM-14350

Flange Hex Locknut, 3/8 NC

$

$

Not available

15

Cub Cadet WM-37601

Main Frame

Note: (S# 10119 & Before)

$

$

Not available

Cub Cadet WM-55240

Main Frame

Note: (S# 10120 & After)

$

$

Not available

16

Cub Cadet WM-2

Rubber Grommet

$

$

Not available

17

Cub Cadet WM-62321

Hose Protector Shield

$

$

Not available

18

Cub Cadet WM-34181

Hose Clamp, 2.5-3.5

$

$

Not available

19

Cub Cadet WM-37593

Hyd Cylinder, Double Acting 2.5 x 11

$

$

Not available

20

Cub Cadet WM-1266

Cotter Pin, 3/16 x 1.5
(Superseded to 714-0142)

$6.49

$

Usually ships in 3-6 days

0

21

Cub Cadet WM-53920

Headless Pin, 1.0 x 5.84

$

$

Not available

22

Cub Cadet WM-37766

Machined Stabilizer Pad

$

$

Not available

23

Cub Cadet WM-37614

Stabilizer Rubber Pad
(Superseded to WM-1006610)

$94.99

$

Usually ships in 3-6 days

0

24

Cub Cadet WM-37544

Headless Pin, .50 x 4.45

$

$

Not available

25

Cub Cadet WM-62531

Cotter Pin, 3/32 x .5

Note: Obtain Locally

$

$

Not available

26

Cub Cadet WM-37767

Machined Stabilizer Arm

$

$

Not available

27

Cub Cadet WM-6128

Hex Locknut, 1/4
(Superseded to 912-0117)

Note: (S# 10119 & Before); Obtain Locally

$2.49

$

In Stock, only 2 left!

0

Cub Cadet WM-6778

Hex Locknut, 5/16
(Superseded to 912-3009)

Note: (S# 10120 & After); Obtain Locally

$

$

Not available

28

Cub Cadet WM-37531

Screw, 1/4 x 2.25

Note: (S# 10119 & Before)

$

$

Not available

Cub Cadet WM-10509

Screw, 5/16 x 2.5
(Superseded to 710-0378)

Note: (S# 10120 & After)

$4.99

$

In Stock, only 4 left!

0

29

Cub Cadet WM-62295

Drilled Bar,

Note: (S# 10119 & Before)

$

$

Not available

Cub Cadet WM-55238

Headless Pin,

Note: (S# 10120 & After)

$

$

Not available

30

Cub Cadet WM-37594

Hyd Cyl, Double Acting 2.5 x 10.63

$

$

Not available

31

Cub Cadet WM-62405

Swing Chain

$

$

Not available

32

Cub Cadet WM-62404

Chain Tension Bolt

$

$

Not available

33

Cub Cadet WM-62292

Pin, 1.Ox 4.55 x6.0

Note: (S# 10119 & Before)

$

$

Not available

Cub Cadet WM-37690

Pin, 1.0 x 7.3 x 7.69

Note: (S# 10120 & After)

$

$

Not available

34

Cub Cadet WM-37690

Pin, 1.0 x 7.3 x 7.69

$

$

Not available

35

Cub Cadet WM-1972

Tapered Thread Grease Fitting, 1/4-28
(Superseded to 937-0146)

Note: Obtain Locally

$5.49

$

In Stock, only 2 left!

0

36

Cub Cadet WM-230

Hex Nut, 5/8 NC
(Superseded to 912-3015)

Note: Obtain Locally

$4.99

$

In Stock, only 2 left!

0

37

Cub Cadet WM-62075

Bushing, 10GA x 1

$

$

Not available

38

Cub Cadet WM-62072

Spring, Compression, 1.19 x .07 x .627

$

$

Not available

39

Cub Cadet WM-1285

Cotter Pin, 1/4 x 1.5

Note: Obtain Locally

$

$

Currently unavailable

40

Cub Cadet WM-62383

Ball Bushing, 1.5 ID

$

$

Not available

41

Cub Cadet WM-62399

Chain Pin, .312 x 1.45

$16.99

$

Usually ships in 3-6 days

0

42

Cub Cadet WM-62327

Cap Weld Assembly

$239.99

$

Usually ships in 3-6 days

0

43

Cub Cadet WM-3584

Tapered Thread Grease Fitting, 45° 1/4

$

$

Not available

44

Cub Cadet WM-21016

Wheel Bolt, 7/16 NF x 1.25

$

$

Not available

45

Cub Cadet WM-11204

Shim Washer, 13/16 x .010

$

$

Not available

46

Cub Cadet WM-37566

Bumper, 1.25 x 2.25 x 1.75

$

$

Not available

47

Cub Cadet WM-2457

Hex Hd Cap Screw, 1/4 NC x 3/4 GR5

Note: Obtain Locally

$

$

Not available

48

Cub Cadet WM-1985

Lockwasher, 1/4
(Superseded to 936-0329)

Note: Obtain Locally

$4.49

$

In Stock, Qty 11

0

49

Cub Cadet WM-62269

Hose Clamp

$

$

Not available

50

Cub Cadet WM-2522

Lockwasher, 3/4
(Superseded to 936-0364)

Note: Obtain Locally

$

$

Not available

51

Cub Cadet WM-4616

Hex Hd Cap Screw, 3/4 NC x 1.5

$

$

Not available

52

Cub Cadet WM-38678

Cover, 11 GA x 5.13 x 12.9

$

$

Not available

53

Cub Cadet WM-38651

Console Cover

$

$

Not available

54

Cub Cadet WM-15036

Safety Pin, 3/16

$

$

Not available

55

Cub Cadet WM-37599

Swing Lock Pin, .62 x 3.31

$

$

Not available

56

Cub Cadet WM-27610

Sheet Metal Screw, .31 x .75

$

$

Not available

57

Cub Cadet WM-14139

Flange Locknut, 5/16 NC

$

$

Not available

58

Cub Cadet WM-835

Hex Nut, Plated, 3/8 NC
(Superseded to 712-0798)

Note: Obtain Locally

$4.49

$

In Stock, only 2 left!

0

59

Cub Cadet WM-838

Lockwasher, 3/8

Note: Obtain Locally

$3.99

$

Usually ships in 3-6 days

0

60

Cub Cadet WM-53910

Headless Pin, 1.0 x 3.80

$

$

Not available

61

Cub Cadet WM-37600

Handle, 1.05 x 13.3 x 15.5

$

$

Not available

62

Cub Cadet WM-62528

Hex Locknut, 7/16 NF

Note: Obtain Locally

$

$

Not available

63

Cub Cadet WM-37545

Swing Frame
(Superseded to WM-55232)

Note: (S# 10119 & Before)

$1390.99

$

Usually ships in 3-6 days

0

Cub Cadet WM-55232

Swing Frame

Note: (S# 10120 & After)

$1390.99

$

Usually ships in 3-6 days

0

64

Cub Cadet WM-37526

Link, .38 x 2.0 x 7.1

$

$

Not available

Cub Cadet WM-38627

English Safety Decal Set

$

$

Not available

Cub Cadet WM-58627

French Safety Decal Set

$

$

Currently unavailable

66

UNKNOWN

$

$

Not available
