457 (590-457-000) - Cub Cadet Backhoe att Valve Controls And Hardware 457 Backhoe Parts Diagram

Backhoe

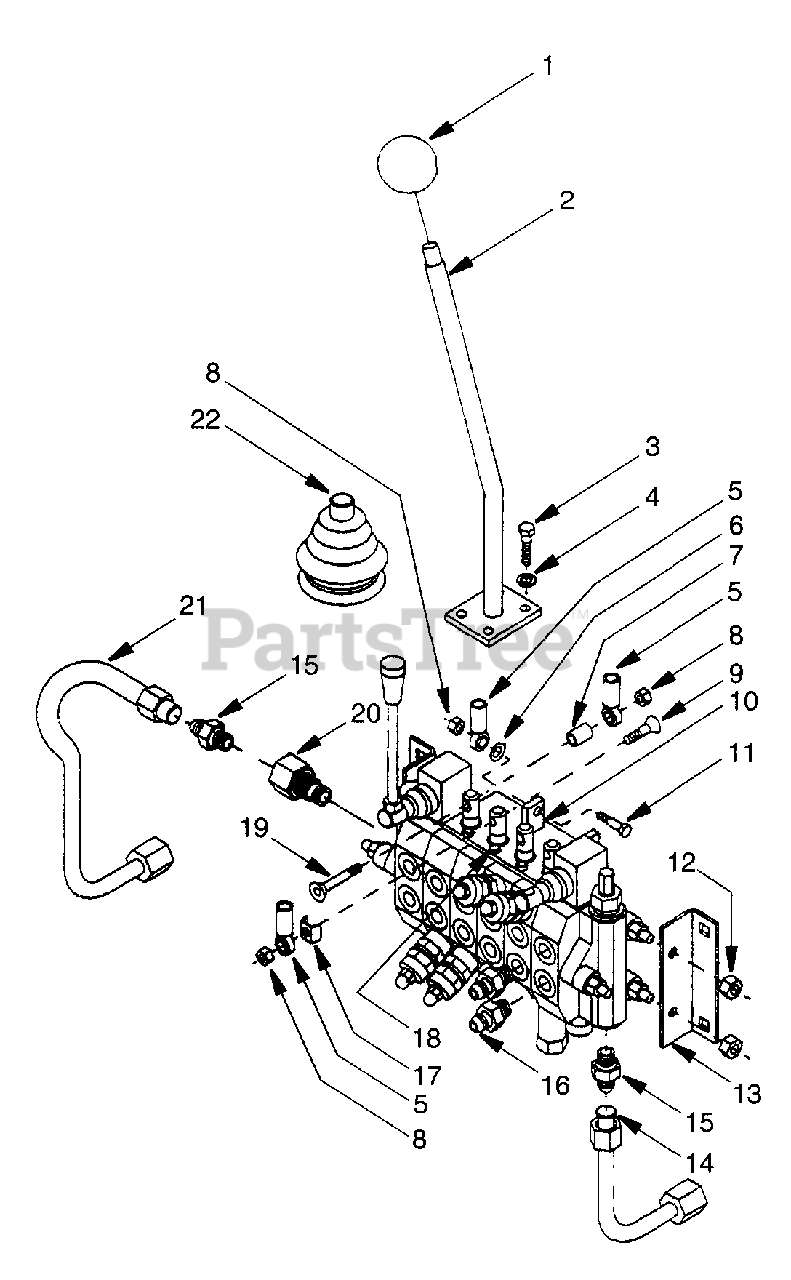

Valve Controls And Hardware 457 Backhoe Parts Diagram

  • Title

1

Cub Cadet WM-37672

Knob, 1.88 Dia. x 1/2 NC

$

$

Not available

2

Cub Cadet WM-37573

Control Handle

$

$

Not available

3

Cub Cadet WM-24405

Hex Hd Cap Screw, 5/16 NF x 3/4 GR5

Note: Obtain Locally

$

$

Currently unavailable

4

Cub Cadet WM-2472

Lockwasher, 5/16
(Superseded to 936-0119)

Note: Obtain Locally

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet WM-37613

Female Rod End, 5/16 NF

$

$

Not available

6

Cub Cadet WM-37577

Washer, .328 x .50 x .093

$

$

Not available

7

Cub Cadet WM-37551

Sleeve, .328 x .463 x .716

$

$

Not available

8

Cub Cadet WM-6778

Hex Locknut, 5/16 NC
(Superseded to 912-3009)

Note: Obtain Locally

$

$

Not available

9

Cub Cadet WM-37558

Countersunk Hd Screw, 5/16 NC x 1.5

$

$

Not available

10

Cub Cadet WM-37552

Valve Linkage Mount
(Superseded to WM-52073)

$

$

Not available

11

Cub Cadet WM-6250

Hex Hd Cap Screw, 5/16 NC x 1.25 GR5

Note: Obtain Locally

$

$

Currently unavailable

12

Cub Cadet WM-30515

Hex Nut, 8mm x 1.25P
(Superseded to 712-3077)

$

$

Not available

13

Cub Cadet WM-37556

Valve Mounting Bracket

$

$

Not available

14

Cub Cadet WM-37761

Hyd Tube Assembly, JIC 8F x SAE 8F

$

$

Not available

15

Cub Cadet WM-61

Adapter, JIC 8M x O-Ring 8M

$

$

Not available

16

Cub Cadet WM-62367

Connector, 9/16-18 to O-Ring

$

$

Not available

17

Cub Cadet WM-37548

Clip, 16GA x .36 x .67 x .63

$

$

Not available

18

Cub Cadet WM-37524

Hex Hd Cap Screw, 5mm x.8P x 12mm

$

$

Not available

19

Cub Cadet WM-37559

Countersunk Hd Screw, 5/16 x 2

$

$

Not available

20

Cub Cadet WM-37409

Power-Beyond Sleeve

$

$

Not available

21

Cub Cadet WM-55046

Hyd Tube Assy, 3/4 SAEF JIC8F

$

$

Not available

22

Cub Cadet WM-37765

Rubber Control Boot

$

$

Not available
