457 (590-457-000) - Cub Cadet Backhoe att Subframe And Mounting Brackets 457 Backhoe Parts Diagram

Backhoe

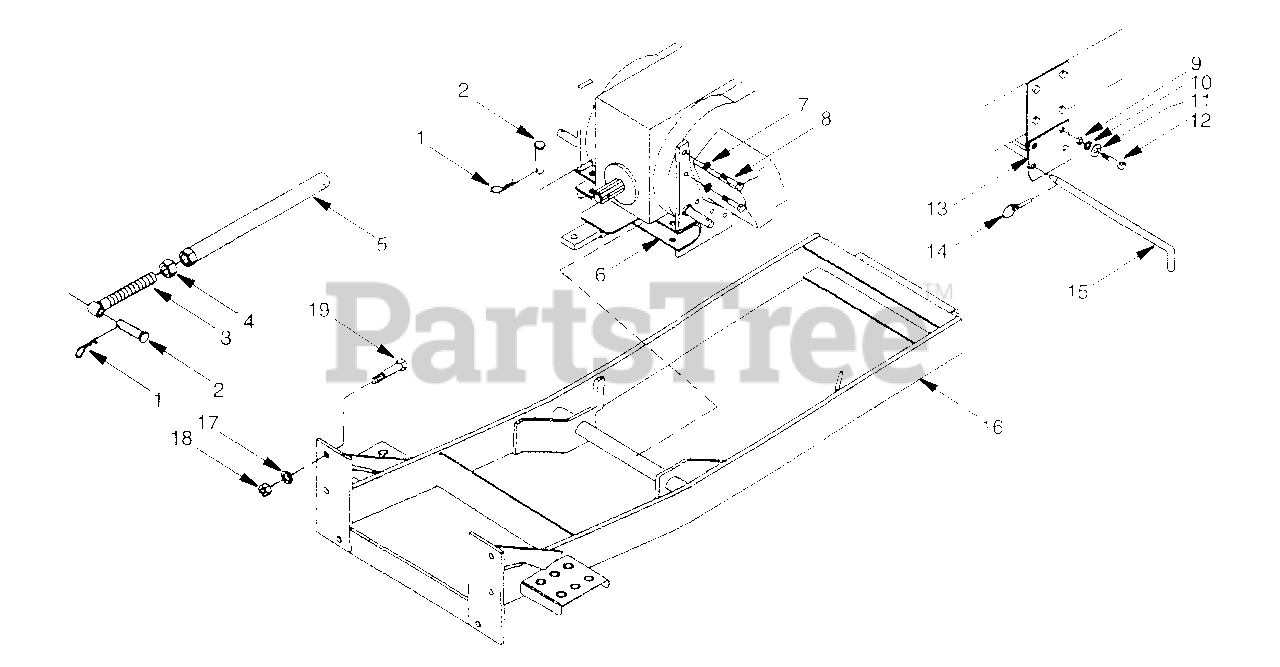

Subframe And Mounting Brackets 457 Backhoe Parts Diagram

  • Title

1

Cub Cadet WM-2688

Hairpin Cotter, 5/32

$

$

Currently unavailable

2

Cub Cadet WM-62540

Clevis Pin, 3/4 x 17.75

$

$

Not available

3

Cub Cadet WM-64956

Inner Top Link Assy

$

$

Not available

4

Cub Cadet WM-3132

Hex Nut, 1

$

$

Not available

5

Cub Cadet WM-64954

Outer Link Assy, 19.5

$

$

Not available

6

Cub Cadet WM-55026

Rear Mounting Bracket Assy

$

$

Not available

7

Cub Cadet WM-62580

Lockwasher, 9/16

$

$

Not available

8

Cub Cadet WM-52540

Hex Hd Cap Screw, 10mm x 1.25P x 65mm

$

$

Not available

9

Cub Cadet WM-15031

Locknut, 1/2

$

$

Not available

10

Cub Cadet WM-855

Lockwasher, 1/2
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

11

Cub Cadet WM-854

Washer, 1/2

$

$

Not available

12

Cub Cadet WM-3379

Hex Hd Cap Screw, 1/2 NC x 1 1/2

$4.99

$

Usually ships in 3-6 days

0

13

Cub Cadet WM-55041

Front Mounting Bracket Assy

$

$

Not available

14

Cub Cadet WM-62043

Klik Pin, 1/4 x 1 3/4

$

$

Not available

15

Cub Cadet WM-62674

Lock Pin, 3/4 x 17.75

$

$

Not available

16

Cub Cadet WM-55038-1

Subframe Assy, 24.4 x 7

$

$

Not available

17

Cub Cadet WM-2522

Lockwasher, 3/4
(Superseded to 936-0364)

$

$

Not available

18

Cub Cadet WM-1450

Nut, 3/4 NC
(Superseded to 712-3107)

$11.99

$

Usually ships in 3-6 days

0

19

Cub Cadet WM-735

Hex Hd Cap Screw, 3/4 NC x 2

$

$

Currently unavailable
