457 (590-457-000) - Cub Cadet Backhoe att Boom Assembly 457 Backhoe Parts Diagram

Backhoe

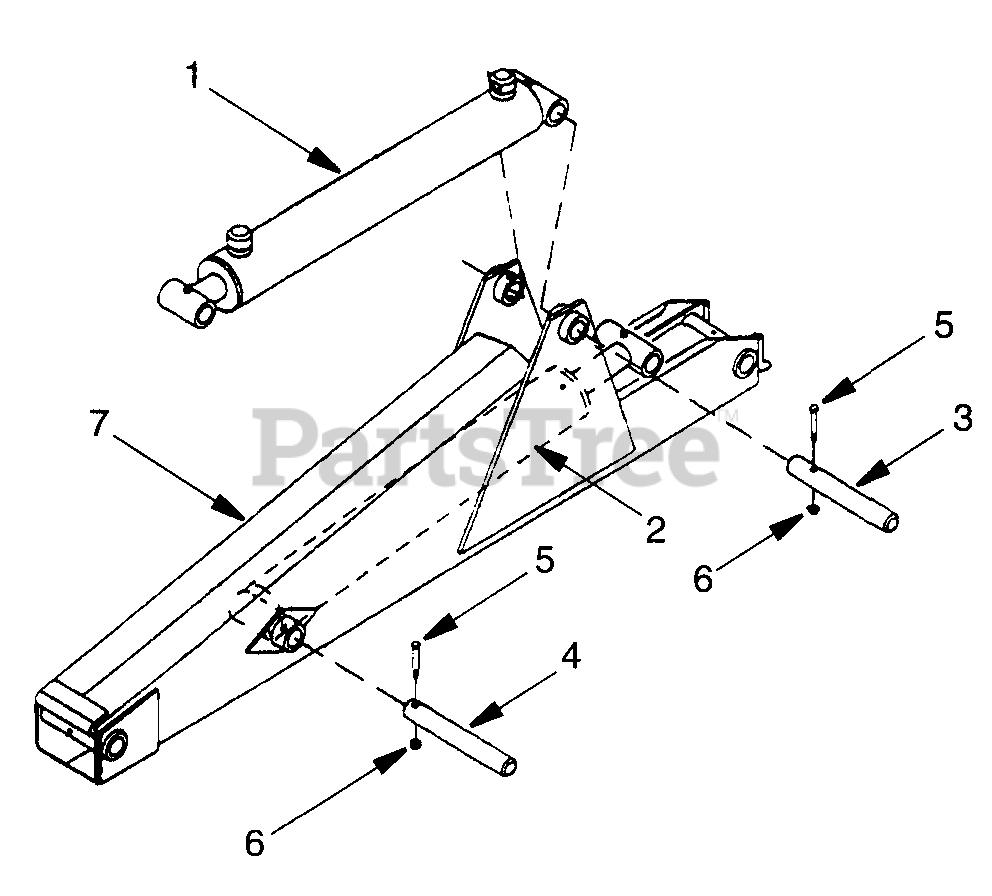

Boom Assembly 457 Backhoe Parts Diagram

  • Title

1

Cub Cadet WM-37592

Hyd Cyl, Dipperstick, 2.00 x 16.75
(Superseded to WM-37592P)

$

$

Not available

2

Cub Cadet WM-37591

Hyd Cyl, Boom, 2.50 x 16.75
(Superseded to WM-37591P)

$

$

Not available

3

Cub Cadet WM-62292

Pin, 1.0 x 4.51 x 5.9

Note: (S# 10119 & Before)

$

$

Not available

Cub Cadet WM-55238

Pin, 1.0 x 5.84 x 6.38

Note: (S# 10120 & After)

$

$

Not available

4

Cub Cadet WM-62295

Pin, 1.0 x 5.92 x 6.31

Note: (S# 10119 & Before)

$

$

Not available

Cub Cadet WM-55238

Pin, 1.0 x 5.84 x 6.38

Note: (S# 10120 & After)

$

$

Not available

5

Cub Cadet WM-37531

Hex Screw, 1/4 x 2.25

Note: (S# 10119 & Before)

$

$

Not available

Cub Cadet WM-6778

Hex Screw, 5/16 x 2.5
(Superseded to 912-3009)

Note: (S# 10120 & After)

$

$

Not available

6

Cub Cadet WM-6128

Hex Locknut, 1/4 NC
(Superseded to 912-0117)

Note: (S# 10119 & Before)

$2.49

$

In Stock, only 2 left!

0

Cub Cadet WM-10509

Hex Locknut, 5/16
(Superseded to 710-0378)

Note: (S# 10120 & After)

$4.99

$

In Stock, only 4 left!

0

7

Cub Cadet WM-38669

Boom Weldment Assy

Note: (S# 10119 & Before)

$

$

Not available

Cub Cadet WM-55234

Boom Weldment Assy

Note: (S# 10120 & After)

$

$

Not available
