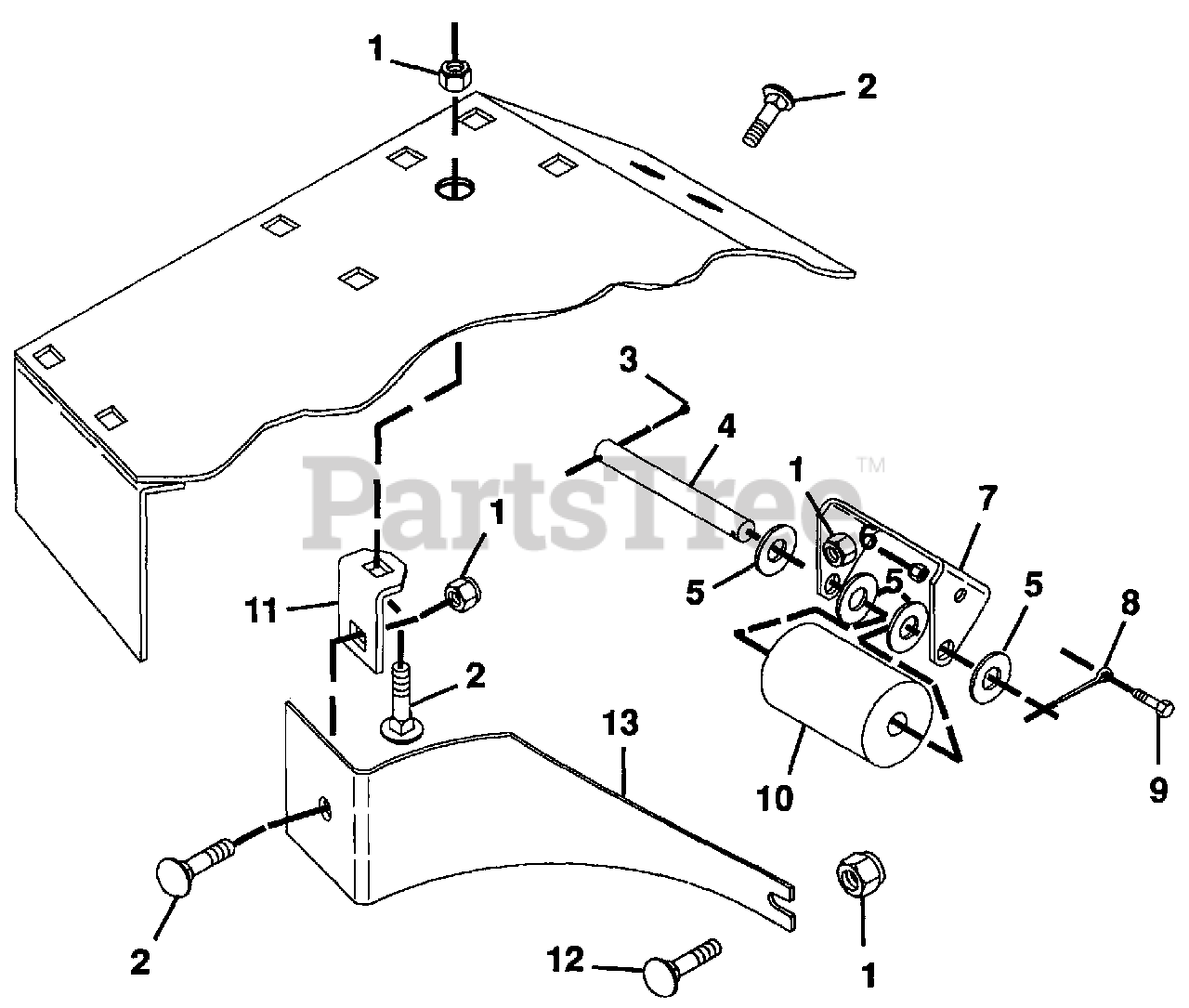

45514 - Gravely 60" Deck Roller & Scroll for PM Gear ROLLER & SCROLL KIT Parts Diagram

60" Deck Roller & Scroll for PM Gear

ROLLER & SCROLL KIT Parts Diagram

  • Title

1

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

2

Gravely 120915

BOLT, 3/8-16X1.00 RD HD SQ NK

$

$

Not available

3

Gravely 179128

PIN, COTTER .25X1.00
(Superseded to 06713000)

$1.49

$

In Stock, only 2 left!

0

4

Gravely 045211

ROD
(Superseded to 08966900)

$56.99

$

Usually ships in 4-12 days

0

5

Gravely 131016

WASHER, FLAT .656X1.312X.095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 120375

NUT, HEX 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

7

Gravely 045210

BRACKET, ROLLER
(Superseded to 08966853)

$

$

Not available

8

Gravely 103422

PIN, COTTER .25X2.00
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 180020

BOLT, HEX 1/4-20X.75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 015351

ROLLER, GAGE
(Superseded to 07520100)

$26.99

$

Usually ships in 4-12 days

0

11

Gravely 041228

BRACKET
(Superseded to 08812000)

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 126227

BOLT, CARRIAGE 3/8-16X.75
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

13

Gravely 045515

SCROLL
(Superseded to 08651400)

$

$

Not available
