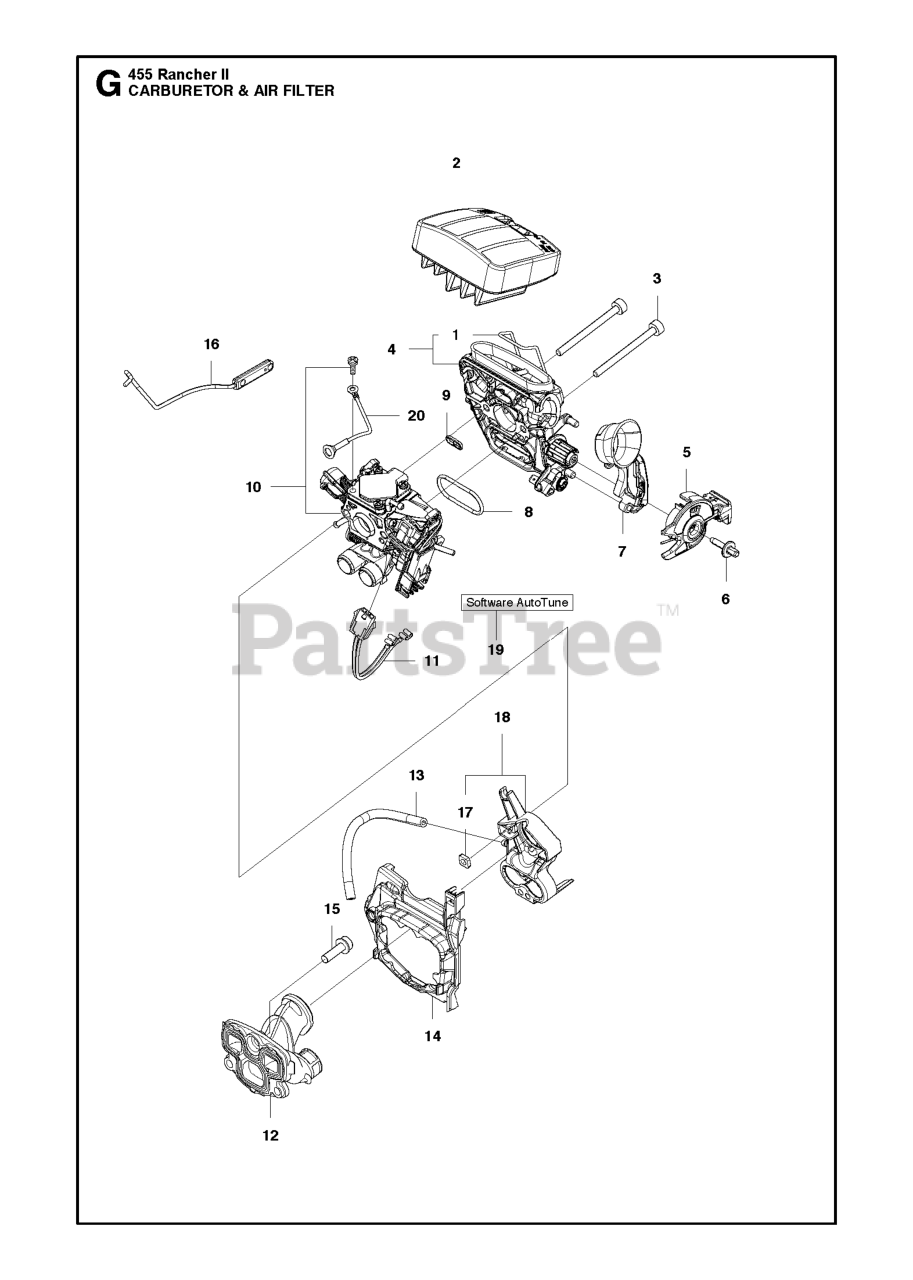

455 RANCHER II - Husqvarna Chainsaw CARBURETOR & AIR FILTER Parts Diagram

Chainsaw

CARBURETOR & AIR FILTER Parts Diagram

  • Title

1

Husqvarna 522907301

SHACKLE

$5.99

$

Usually ships in 3-10 days

0

2

Husqvarna 575789402

AIR FILTER ASSY

Note: 44µ

$22.99

$

In Stock, only 4 left!

0

2

Husqvarna 575789401

AIR FILTER ASSY

Note: 80µ

$31.99

$

Usually ships in 3-10 days

0

2

Husqvarna 575789403

AIR FILTER ASSY

Note: FELT

$11.99

$

Usually ships in 3-10 days

0

3

Husqvarna 503202550

SCREW

Note: IHSCM

$4.99

$

In Stock, only 2 left!

0

4

Husqvarna 575880401

FILTER HOLDER ASSY

$22.99

$

Usually ships in 3-10 days

0

5

Husqvarna 510017202

CHOKE CONTROL ASSY CHOKE/STOP

$12.99

$

In Stock, only 1 left!

0

6

Husqvarna 505156201

SCREW

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 525588101

SEALING

$6.99

$

Usually ships in 3-10 days

0

8

Husqvarna 525619001

SEALING

$6.99

$

In Stock, Qty 7

0

9

Husqvarna 525619201

SEALING

$3.49

$

In Stock, Qty 8

0

10

Husqvarna 580306301

CARBURETOR
(Superseded to 580306303)

$148.99

$

In Stock, only 1 left!

0

11

Husqvarna 577536401

WIRING ASSY

$11.99

$

Usually ships in 3-10 days

0

12

Husqvarna 575567301

INLET PIPE ASSY

$39.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503400601

HOSE
(Superseded to 586227701)

$8.99

$

Usually ships in 3-10 days

0

14

Husqvarna 537371401

PARTITION

$10.99

$

Usually ships in 3-10 days

0

15

Husqvarna 503200216

SCREW

Note: IHSCFM

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 576148701

THROTTLE ROD

$10.99

$

Usually ships in 3-10 days

0

17

Husqvarna 503226503

NUT

Note: M4

$4.99

$

In Stock, only 3 left!

0

18

Husqvarna 575382501

FLANGE

$6.99

$

Usually ships in 3-10 days

0

19

Husqvarna 0

NEEDS DESCRIPTION

Note: Download from your local supportsite

$

$

Currently unavailable

20

Husqvarna 581089901

WIRING ASSY

$5.99

$

Usually ships in 3-10 days

0
