455 RANCHER II - Husqvarna Chainsaw (2012-06) STARTER Parts Diagram

Chainsaw

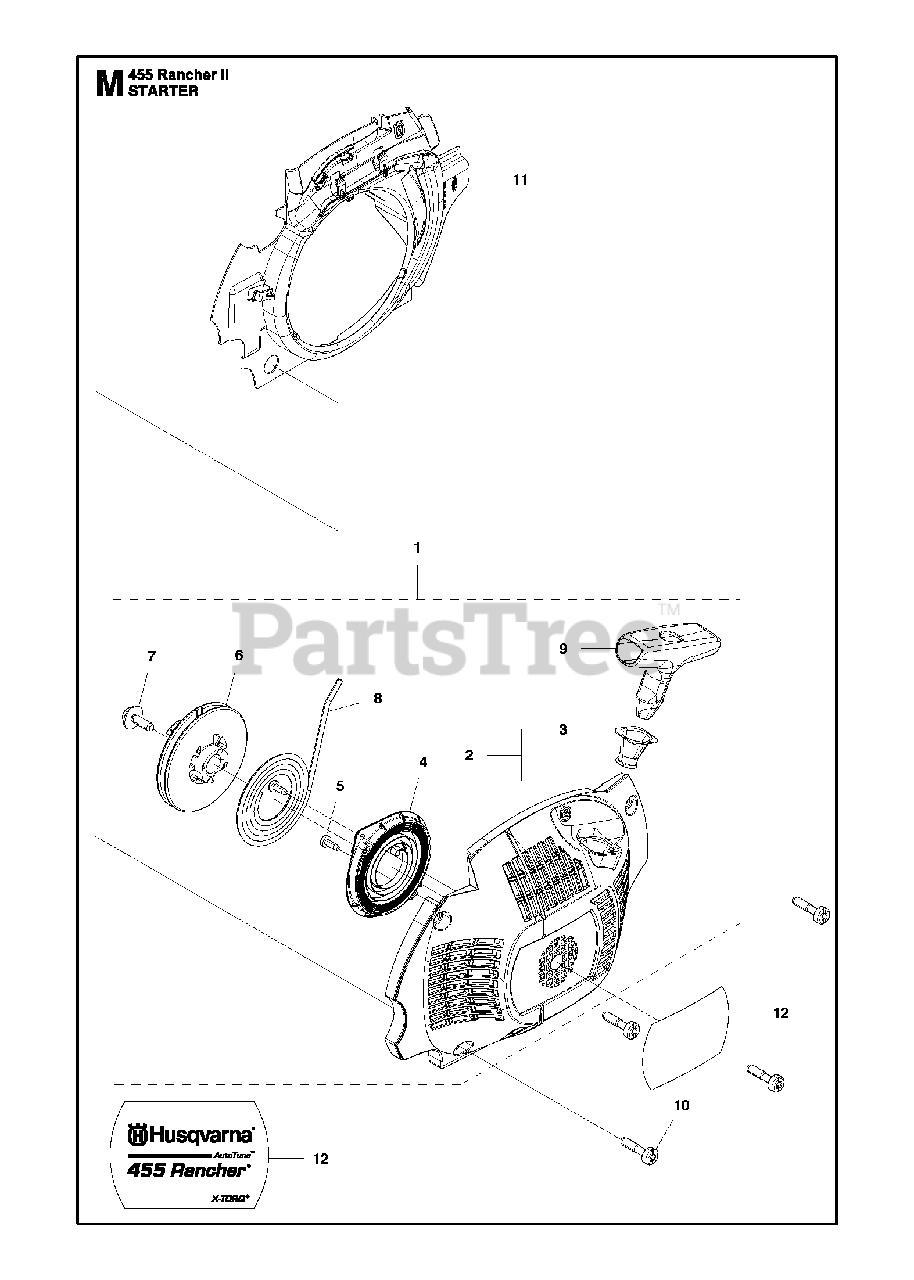

STARTER Parts Diagram

  • Title
1

Husqvarna 574643201

STARTER ASSY

$79.99

$

Usually ships in 3-10 days

0

2

Husqvarna 574643101

STARTER HOUSING

Note: . 1

$22.99

$

Usually ships in 3-10 days

0

3

Husqvarna 537283201

SLEEVE

Note: . 1 2

$12.99

$

In Stock, only 2 left!

0

4

Husqvarna 540057502

SPRING CASSETTE ASSY

Note: . 1

$24.99

$

In Stock, Qty 6

0

5

Husqvarna 503212810

SCREW

Note: CCRPANT. 1

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 537092501

PULLEY
(Superseded to 537092502)

Note: . 1

$31.99

$

In Stock, only 1 left!

0

7

Husqvarna 503217716

SCREW

Note: IHSCT. 1

$6.49

$

In Stock, Qty 7

0

8

Husqvarna 505305125

STARTER ROPE

Note: STARTER CORD. 1

$9.49

$

In Stock, only 2 left!

0

9

Husqvarna 537232501

HANDLE

Note: . 1

$11.99

$

In Stock, only 1 left!

0

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 575546801

AIR BAFFLE

$13.99

$

Usually ships in 3-10 days

0

12

Husqvarna 575863203

DECAL STARTER 455

$4.99

$

Usually ships in 3-10 days

0
