455 RANCHER II - Husqvarna Chainsaw (2012-06) CHAIN BRAKE Parts Diagram

Chainsaw

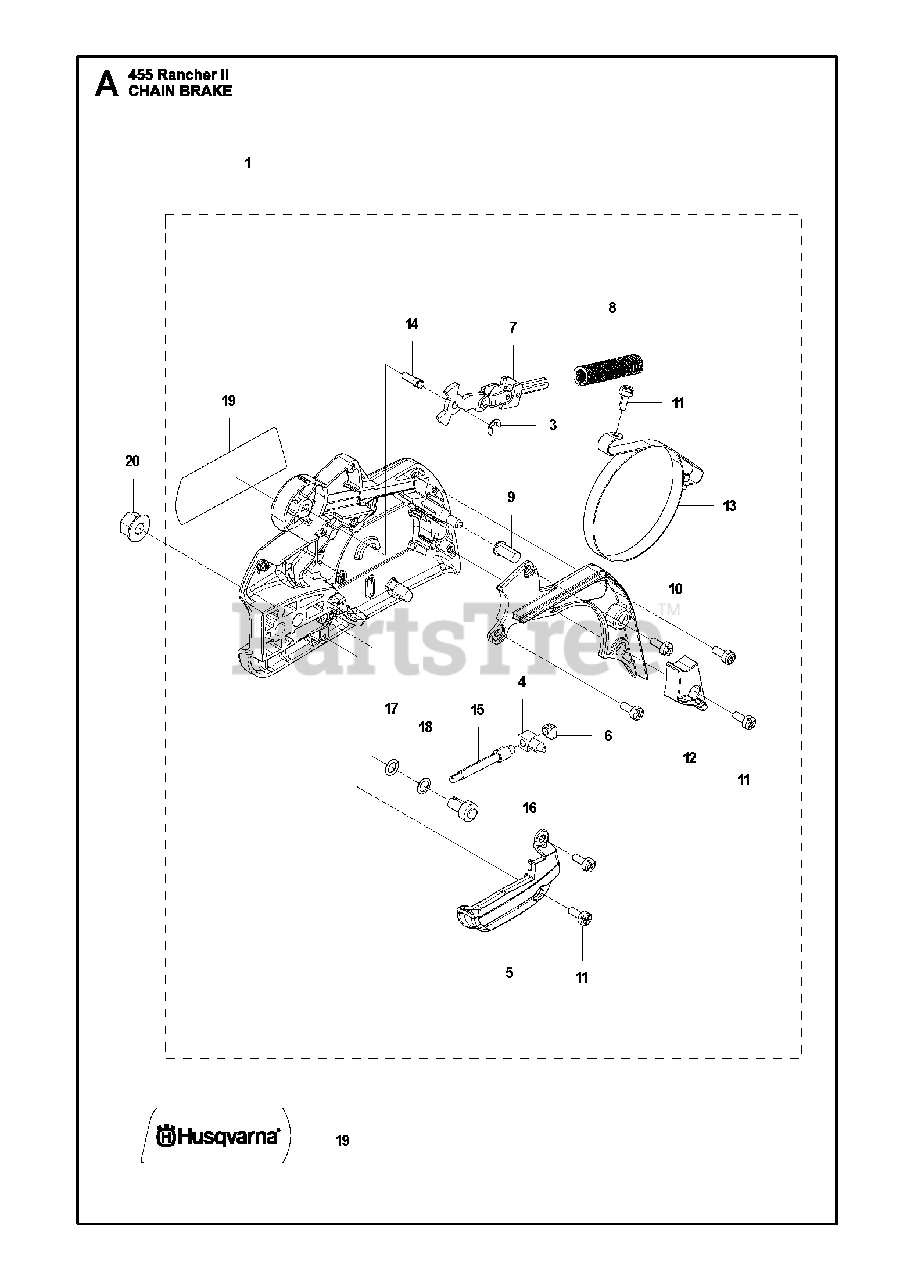

CHAIN BRAKE Parts Diagram

  • Title
1

Husqvarna 544097901

CLUTCH COVER
(Superseded to 544097902)

$50.99

$

Usually ships in 3-10 days

0

3

Husqvarna 735310820

E-RING 4

Note: . 1

$4.99

$

In Stock, Qty 20+

0

4

Husqvarna 537286601

PAWL

Note: . 1

$34.99

$

Usually ships in 3-10 days

0

5

Husqvarna 540063301

CHAIN GUIDE

Note: . 1

$8.99

$

In Stock, Qty 7

0

6

Husqvarna 537017401

SLEEVE

Note: . 1

$6.49

$

In Stock, Qty 9

0

7

Husqvarna 503890802

JOINT

Note: . 1

$40.99

$

In Stock, only 1 left!

0

8

Husqvarna 503465901

SPRING

Note: . 1

$8.99

$

In Stock, only 1 left!

0

9

Husqvarna 503855201

SLEEVE

Note: . 1

$7.49

$

In Stock, only 4 left!

0

10

Husqvarna 544082901

COVER, CHAIN BRAKE

Note: . 1

$7.99

$

In Stock, Qty 7

0

11

Husqvarna 503217010

SCREW

Note: . 1

$4.99

$

In Stock, Qty 17

0

12

Husqvarna 544083001

WEAR GUARD, CHAIN

Note: . 1

$6.99

$

Usually ships in 3-10 days

0

13

Husqvarna 537043001

BRAKE BAND

Note: . 1

$31.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503892901

PIN

Note: . 1

$6.49

$

In Stock, only 1 left!

0

15

Husqvarna 537397001

SCREW

Note: . 1

$18.99

$

In Stock, Qty 5

0

16

Husqvarna 537079402

WORM WHEEL

Note: . 1

$13.99

$

In Stock, only 2 left!

0

17

Husqvarna 740480702

O-RING

Note: . 1

$7.49

$

In Stock, only 4 left!

0

18

Husqvarna 503230063

WASHER

Note: . 1

$6.49

$

In Stock, only 3 left!

0

19

Husqvarna 544376801

LABEL 400 SERIES

Note: . 1

$6.49

$

In Stock, only 4 left!

0

20

Husqvarna 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0
