455 RANCHER - Husqvarna Chainsaw (2013-01) CYLINDER PISTON Parts Diagram

Chainsaw

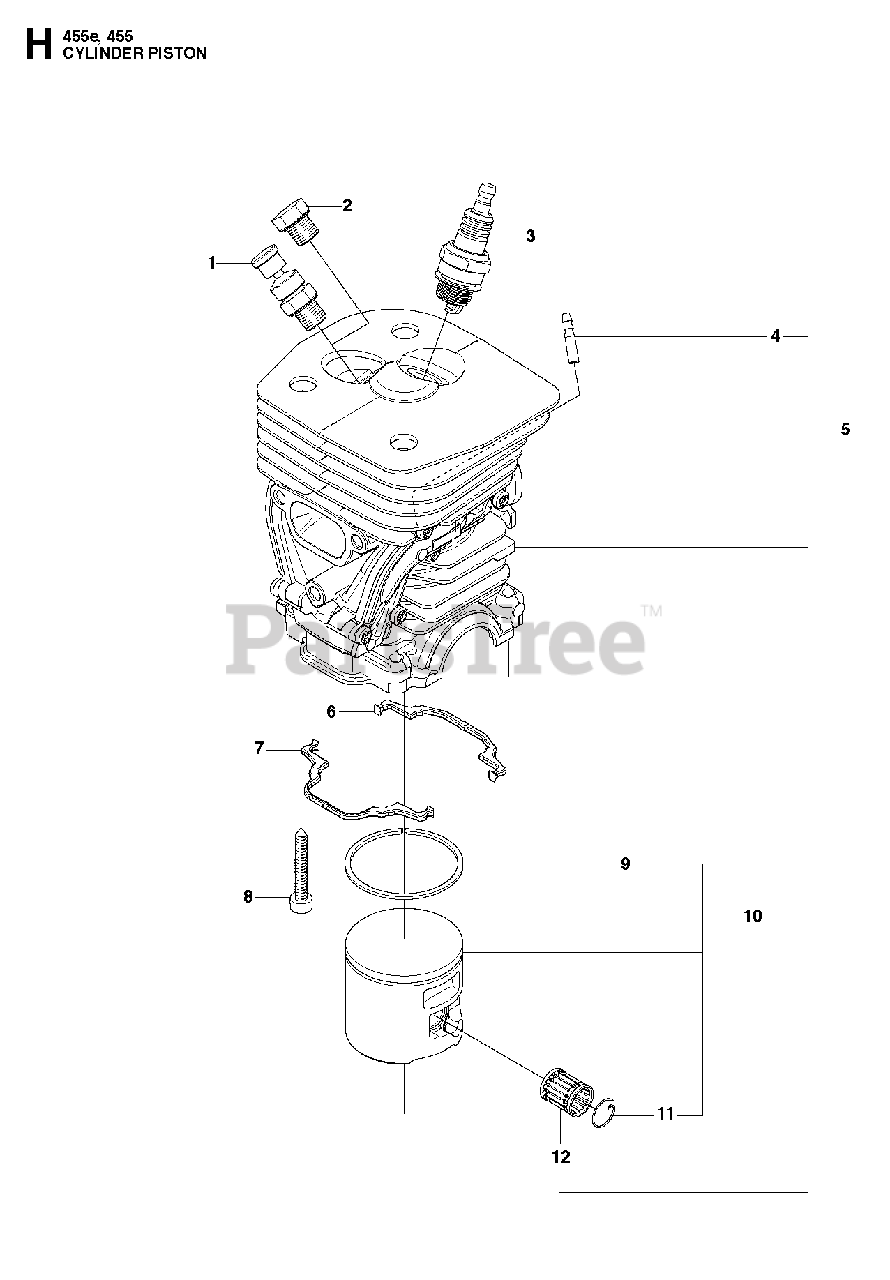

CYLINDER PISTON Parts Diagram

  • Title

1

Husqvarna 537310501

RP VALVE
(Superseded to 585236301)

$17.99

$

In Stock, only 1 left!

0

2

Husqvarna 503552201

CYLINDER PLUG

$13.99

$

In Stock, only 2 left!

0

3

Husqvarna 503235108

SPARK PLUG RCJ7Y
(Superseded to 503235111)

Note: RCJ7Y

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 503424301

FITTING

Note: . 5

$6.99

$

Usually ships in 3-10 days

0

5

Husqvarna 537320402

CYLINDER

Note: 455

$227.99

$

Usually ships in 3-10 days

0

6

Husqvarna 537245801

GASKET

$8.99

$

In Stock, Qty 7

0

7

Husqvarna 537245701

GASKET

$8.99

$

In Stock, Qty 7

0

8

Husqvarna 503200527

SCREW

$4.99

$

In Stock, Qty 10

0

9

Husqvarna 503289050

PISTON RING

Note: 455. 10 5

$40.99

$

In Stock, only 1 left!

0

10

Husqvarna 537293002

PISTON CPL.
(Superseded to 537293004)

Note: 455. 5

$121.99

$

Usually ships in 3-10 days

0

11

Husqvarna 737431200

WRIST PIN CLIP

Note: . 10 5

$7.49

$

Usually ships in 3-10 days

0

12

Husqvarna 501861801

SUPPORT BUSHING

Note: . 5

$13.99

$

In Stock, Qty 6

0
