455 RANCHER - Husqvarna Chainsaw (2011-01) CLUTCH COVER Parts Diagram

Chainsaw

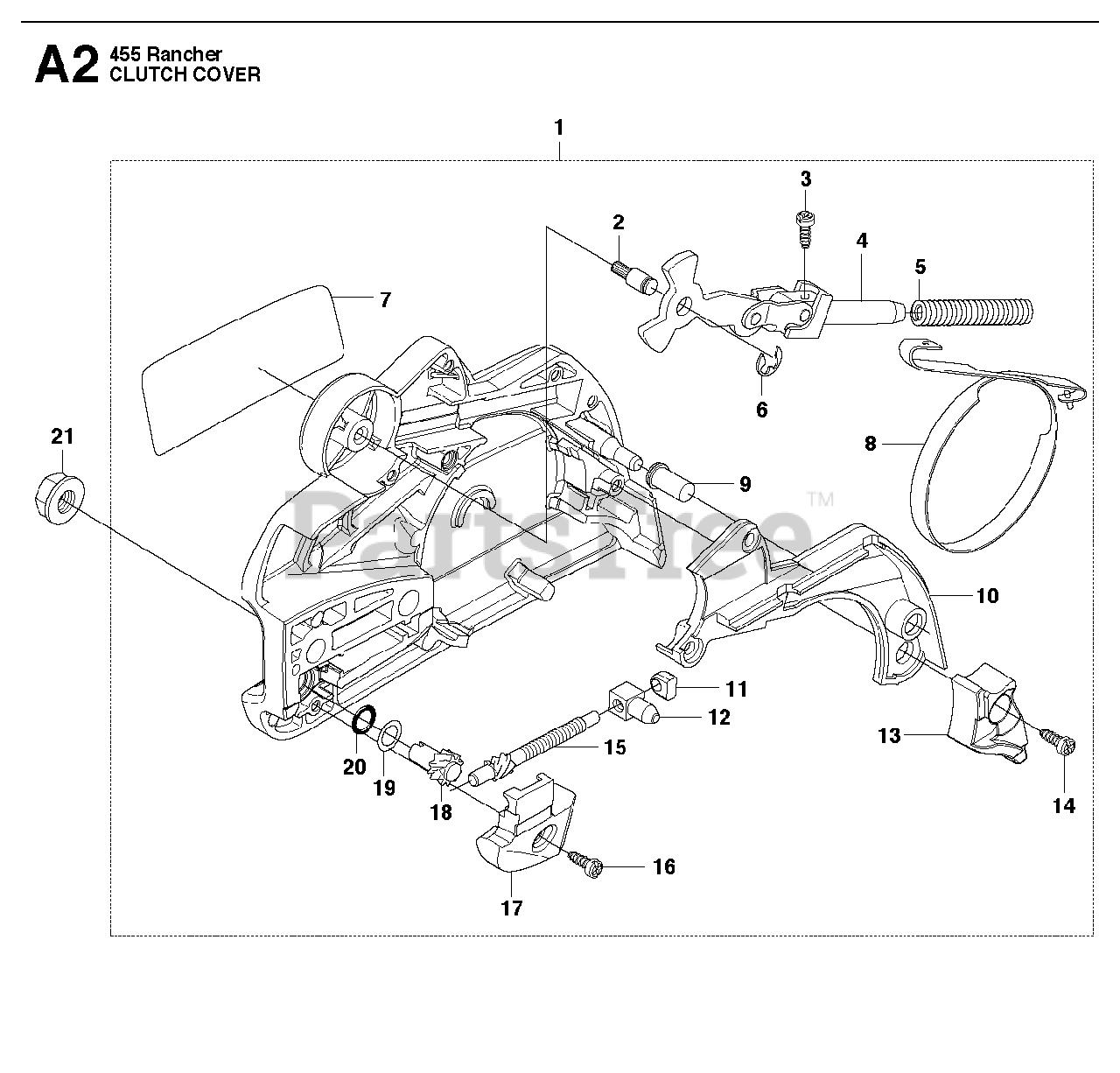

CLUTCH COVER Parts Diagram

  • Title

1

Husqvarna 537286301

CLUTCH COVER

$109.99

$

Usually ships in 3-10 days

0

2

Husqvarna 503892901

PIN

Note: . 1

$6.49

$

In Stock, only 1 left!

0

3

Husqvarna 503217010

SCREW

Note: . 1

$4.99

$

In Stock, Qty 12

0

4

Husqvarna 503890802

JOINT

Note: . 1

$40.99

$

In Stock, only 1 left!

0

5

Husqvarna 503465901

SPRING

Note: . 1

$8.99

$

In Stock, only 4 left!

0

6

Husqvarna 735310820

E-RING 4

Note: . 1

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 537298601

DECAL, CLUTCH COVER

Note: . 1

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 537043001

BRAKE BAND

Note: . 1

$31.99

$

Usually ships in 3-10 days

0

9

Husqvarna 503855201

SLEEVE

Note: . 1

$7.49

$

In Stock, only 3 left!

0

10

Husqvarna 537108002

COVER

Note: . 1

$13.99

$

Usually ships in 3-10 days

0

11

Husqvarna 537017401

SLEEVE

Note: . 1

$6.49

$

In Stock, Qty 8

0

12

Husqvarna 537286601

PAWL

Note: . 1

$34.99

$

Usually ships in 3-10 days

0

13

Husqvarna 537089001

PROTECTOR

Note: . 1

$10.99

$

In Stock, only 1 left!

0

14

Husqvarna 503217010

SCREW

Note: . 1

$4.99

$

In Stock, Qty 12

0

15

Husqvarna 537286501

SCREW
(Superseded to 575260404)

Note: . 1

$11.99

$

In Stock, only 1 left!

0

16

Husqvarna 503217010

SCREW

Note: . 1

$4.99

$

In Stock, Qty 12

0

17

Husqvarna 537286401

COVER

Note: . 1

$7.49

$

In Stock, Qty 9

0

18

Husqvarna 537079402

WORM WHEEL

Note: . 1

$13.99

$

Usually ships in 3-10 days

0

19

Husqvarna 503230063

WASHER

Note: . 1

$6.49

$

In Stock, only 2 left!

0

20

Husqvarna 740480702

O-RING

Note: . 1

$7.49

$

In Stock, only 3 left!

0

21

Husqvarna 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0
