455 e RANCHER II - Husqvarna Chainsaw CRANKCASE Parts Diagram

Chainsaw

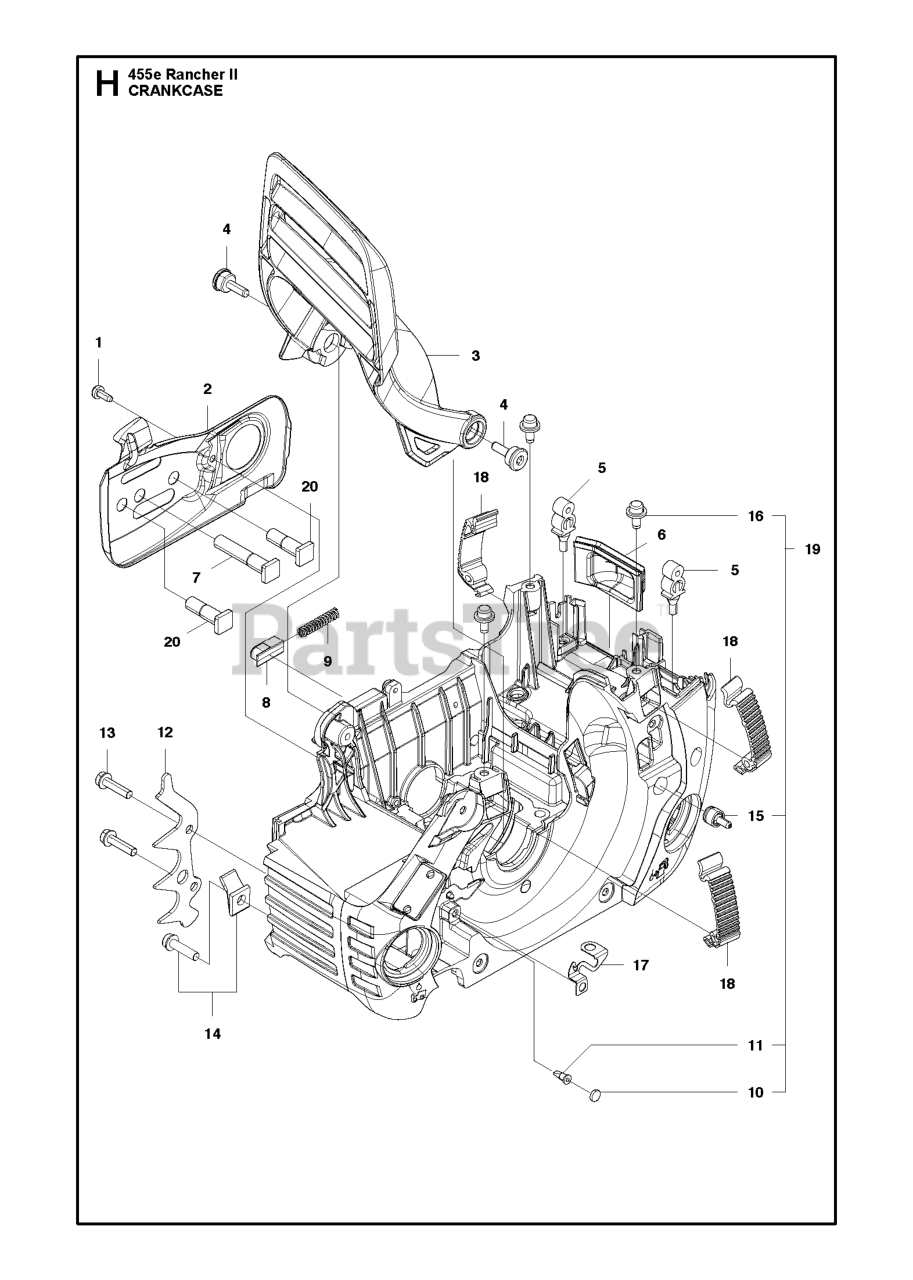

CRANKCASE Parts Diagram

  • Title

1

Husqvarna 503217010

SCREW

Note: CCRPANT

$4.99

$

In Stock, Qty 12

0

19

Husqvarna 577595403

CRANKCASE ASSY

$319.99

$

Usually ships in 3-10 days

0

20

Husqvarna 537227801

BOLT

$8.99

$

In Stock, only 4 left!

0

5

Husqvarna 503869301

SUPPORT

$8.49

$

Usually ships in 3-10 days

0

14

Husqvarna 503910671

CHAIN CATCHER

$12.99

$

In Stock, only 4 left!

0

8

Husqvarna 503892401

CATCH

$9.99

$

In Stock, Qty 8

0

7

Husqvarna 537334602

GUIDE BOLT (X2)

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 578068801

SPIKES

$17.99

$

In Stock, only 1 left!

0

13

Husqvarna 503216872

SCREW IHSCFT

$6.49

$

In Stock, only 1 left!

0

11

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

$5.99

$

In Stock, only 4 left!

0

3

Husqvarna 574602901

HAND GUARD

$22.99

$

In Stock, only 3 left!

0

17

Husqvarna 575393001

GROUND PLATE

$

$

Not available

6

Husqvarna 575554101

BELLOWS

$10.99

$

Usually ships in 3-10 days

0

16

Husqvarna 544331601

GUIDE PEN

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 503436501

LOCK SPRING

$7.49

$

In Stock, only 3 left!

0

10

Husqvarna 537403501

PLUG
(Superseded to 537403502)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 537271302

PLATE

$18.99

$

In Stock, Qty 11

0

4

Husqvarna 537296501

SCREW, HAND GUARD

$7.49

$

In Stock, only 3 left!

0

18

Husqvarna 503894701

BUCKLE ORANGE

$14.99

$

Usually ships in 3-10 days

0

15

Husqvarna 501152901

FUEL TANK VENT

$17.99

$

In Stock, Qty 5

0
