455 e RANCHER II - Husqvarna Chainsaw (2012-06) CYLINDER PISTON Parts Diagram

Chainsaw

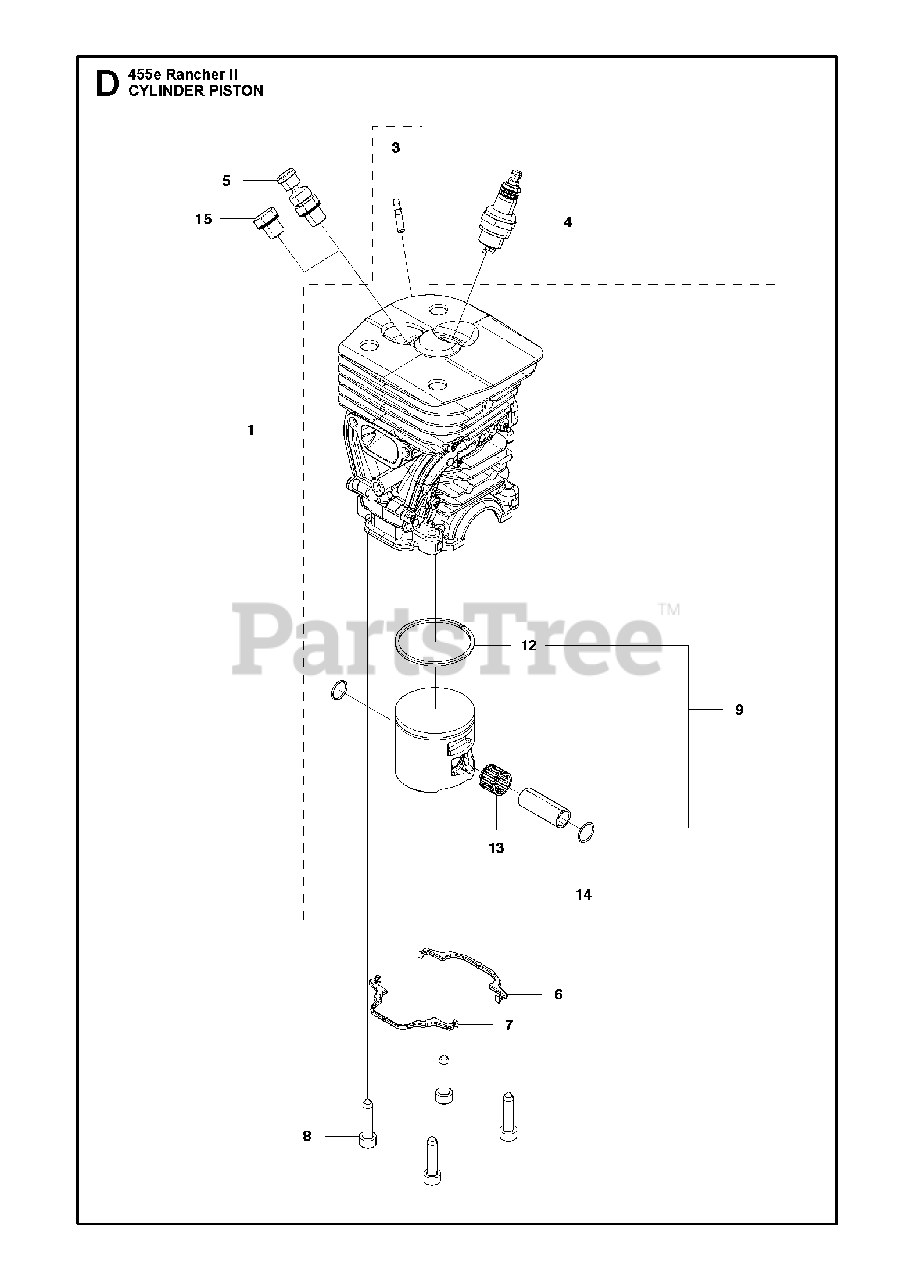

CYLINDER PISTON Parts Diagram

  • Title

1

Husqvarna 537320403

CYLINDER ASSY

$250.99

$

Usually ships in 3-10 days

0

3

Husqvarna 503424301

FITTING

Note: . 1

$6.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503235111

BPMR7A NGK SPARK PLUG

$3.49

$

In Stock, Qty 20+

0

5

Husqvarna 537310501

RP VALVE
(Superseded to 585236301)

$17.99

$

In Stock, only 1 left!

0

6

Husqvarna 537245801

GASKET

$8.99

$

In Stock, Qty 9

0

7

Husqvarna 537245701

GASKET

$8.99

$

In Stock, Qty 9

0

8

Husqvarna 503200527

SCREW

$4.99

$

In Stock, Qty 10

0

9

Husqvarna 574644002

PISTON ASSY

Note: . 1

$96.99

$

Usually ships in 3-10 days

0

12

Husqvarna 544098401

PISTON RING

Note: . 1 9

$9.49

$

In Stock, only 1 left!

0

13

Husqvarna 574342401

NEEDLE BEARING
(Superseded to 501861801)

Note: . 1 9

$13.99

$

In Stock, Qty 6

0

14

Husqvarna 737441200

CLIP
(Superseded to 737431200)

Note: . 1 9

$7.49

$

In Stock, only 2 left!

0

15

Husqvarna 503552201

CYLINDER PLUG

$13.99

$

In Stock, only 1 left!

0
