455 e RANCHER II - Husqvarna Chainsaw (2012-06) CLUTCH OIL PUMP Parts Diagram

Chainsaw

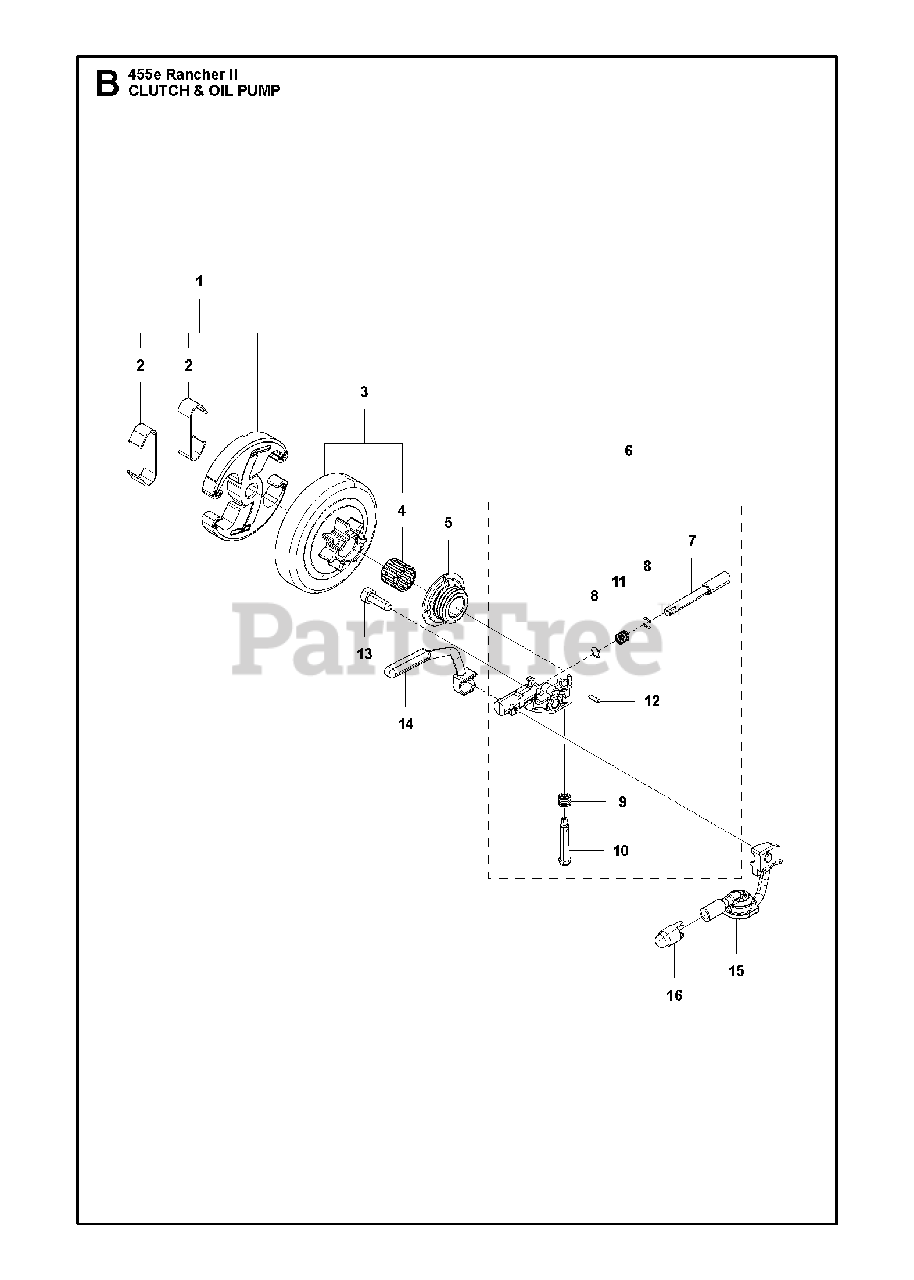

CLUTCH OIL PUMP Parts Diagram

  • Title

16

Husqvarna 510044301

OIL SCREEN

$6.49

$

In Stock, only 1 left!

0

1

Husqvarna 537110503

CLUTCH

$48.99

$

In Stock, Qty 7

0

2

Husqvarna 537359101

SPRING

Note: . 1

$8.99

$

In Stock, Qty 12

0

3

Husqvarna 537291702

CLUTCH DRUM

Note: 0 325 x 7 SPUR

$54.99

$

In Stock, only 1 left!

0

3

Husqvarna 537291604

CLUTCH DRUM

Note: 3 /8 x 7 SPUR

$40.99

$

In Stock, only 1 left!

0

4

Husqvarna 503255201

NEEDLE BEARING

Note: . 3

$27.99

$

Usually ships in 3-10 days

0

5

Husqvarna 537252601

GEAR WORM OILER
(Superseded to 598718301)

$17.99

$

Usually ships in 3-10 days

0

6

Husqvarna 544180104

OIL PUMP ASSY

$93.99

$

Usually ships in 3-10 days

0

7

Husqvarna 537069302

PUMP PISTON

Note: . 6

$24.99

$

In Stock, only 1 left!

0

8

Husqvarna 503230060

WASHER

Note: . 6

$5.99

$

In Stock, only 1 left!

0

9

Husqvarna 503891601

SPRING

Note: . 6

$6.99

$

In Stock, only 3 left!

0

10

Husqvarna 537027101

ADJUSTER

Note: . 6

$9.99

$

In Stock, only 2 left!

0

11

Husqvarna 503891501

SPRING

Note: . 6

$6.49

$

In Stock, Qty 7

0

12

Husqvarna 721116430

PIN

Note: . 6

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 503217416

SCREW

$6.49

$

In Stock, Qty 10

0

14

Husqvarna 537261501

OIL HOSE

$18.99

$

In Stock, Qty 8

0

15

Husqvarna 576998501

OIL HOSE

$13.99

$

In Stock, only 1 left!

0
