455 e RANCHER - Husqvarna Chainsaw (2009-10) Clutch Cover Parts Diagram

Chainsaw

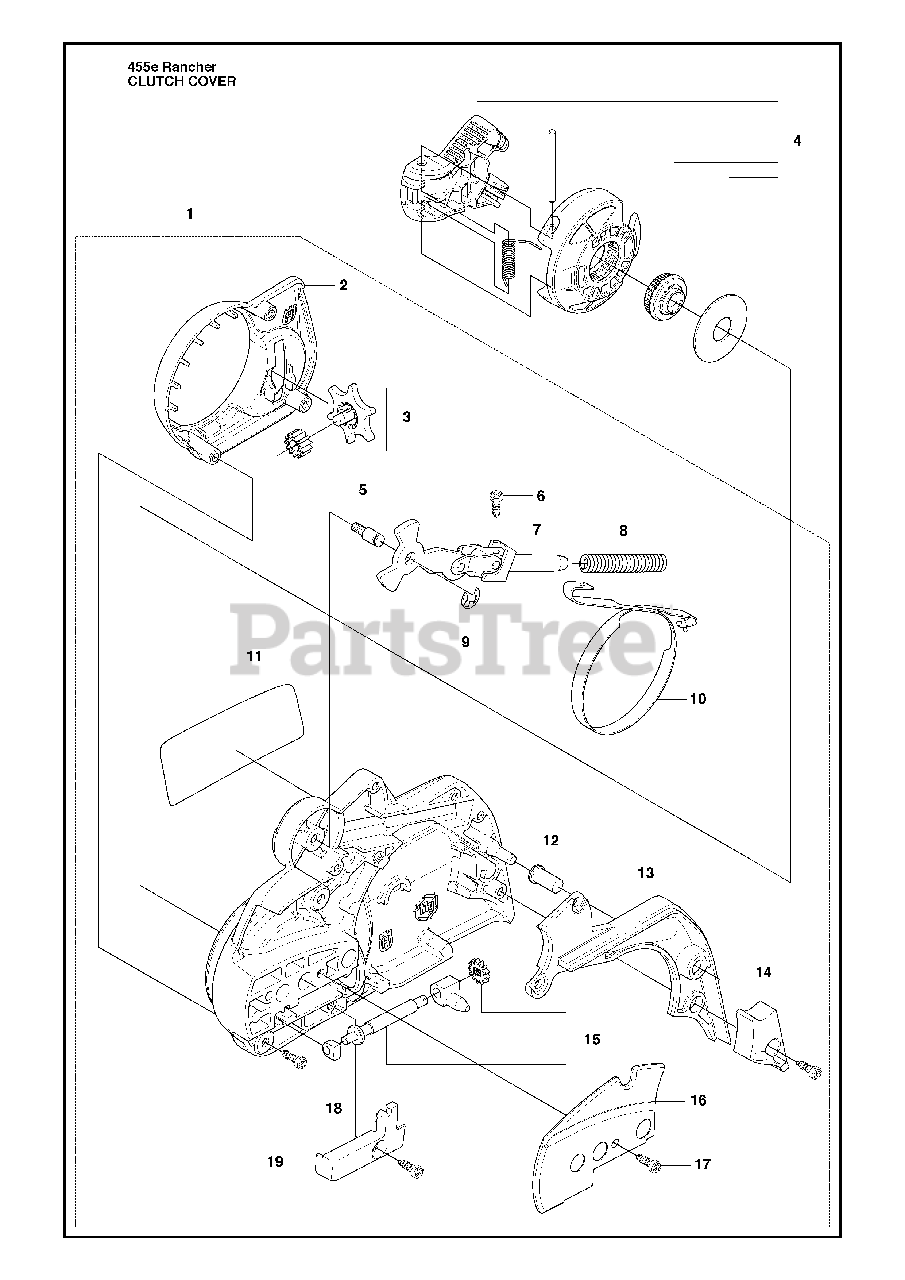

Clutch Cover Parts Diagram

  • Title

1

Husqvarna 544217201

CLUTCH HOUSING COMPLETE

$68.99

$

Usually ships in 3-10 days

0

2

Husqvarna 537392601

HEAT SHIELD

$12.99

$

In Stock, only 1 left!

0

3

Husqvarna 537347201

CHAIN TENSIONER WHEEL, COMP.

$12.99

$

Usually ships in 3-10 days

0

4

Husqvarna 537347801

KNOB, COMPLETE

$34.99

$

In Stock, only 1 left!

0

5

Husqvarna 503892901

PIN

$6.49

$

In Stock, only 1 left!

0

6

Husqvarna 503217010

SCREW

$4.99

$

In Stock, Qty 17

0

7

Husqvarna 503890802

JOINT

$40.99

$

In Stock, only 1 left!

0

8

Husqvarna 503465901

SPRING

$8.99

$

In Stock, only 1 left!

0

9

Husqvarna 735310820

E-RING 4

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 537043001

BRAKE BAND

$31.99

$

Usually ships in 3-10 days

0

11

Husqvarna 544357501

DECAL, CLUTCH HOUSING

$6.49

$

In Stock, only 3 left!

0

12

Husqvarna 503855201

SLEEVE

$7.49

$

In Stock, only 4 left!

0

13

Husqvarna 544082901

COVER, CHAIN BRAKE

$7.99

$

In Stock, Qty 7

0

14

Husqvarna 544083001

WEAR GUARD, CHAIN

$6.99

$

Usually ships in 3-10 days

0

15

Husqvarna 537392901

CHAIN TENSIONER SCREW, COMP.

$13.99

$

Usually ships in 3-10 days

0

16

Husqvarna 505321001

WEAR PLATE

$4.99

$

In Stock, Qty 5

0

17

Husqvarna 503217010

SCREW

$4.99

$

In Stock, Qty 17

0

18

Husqvarna 525354301

BEARING SLEEVE

$9.99

$

Usually ships in 3-10 days

0

19

Husqvarna 504542801

COVER

$4.99

$

In Stock, Qty 6

0
