455 e RANCHER - Husqvarna Chainsaw (2006-06) Crankcase Parts Diagram

Chainsaw

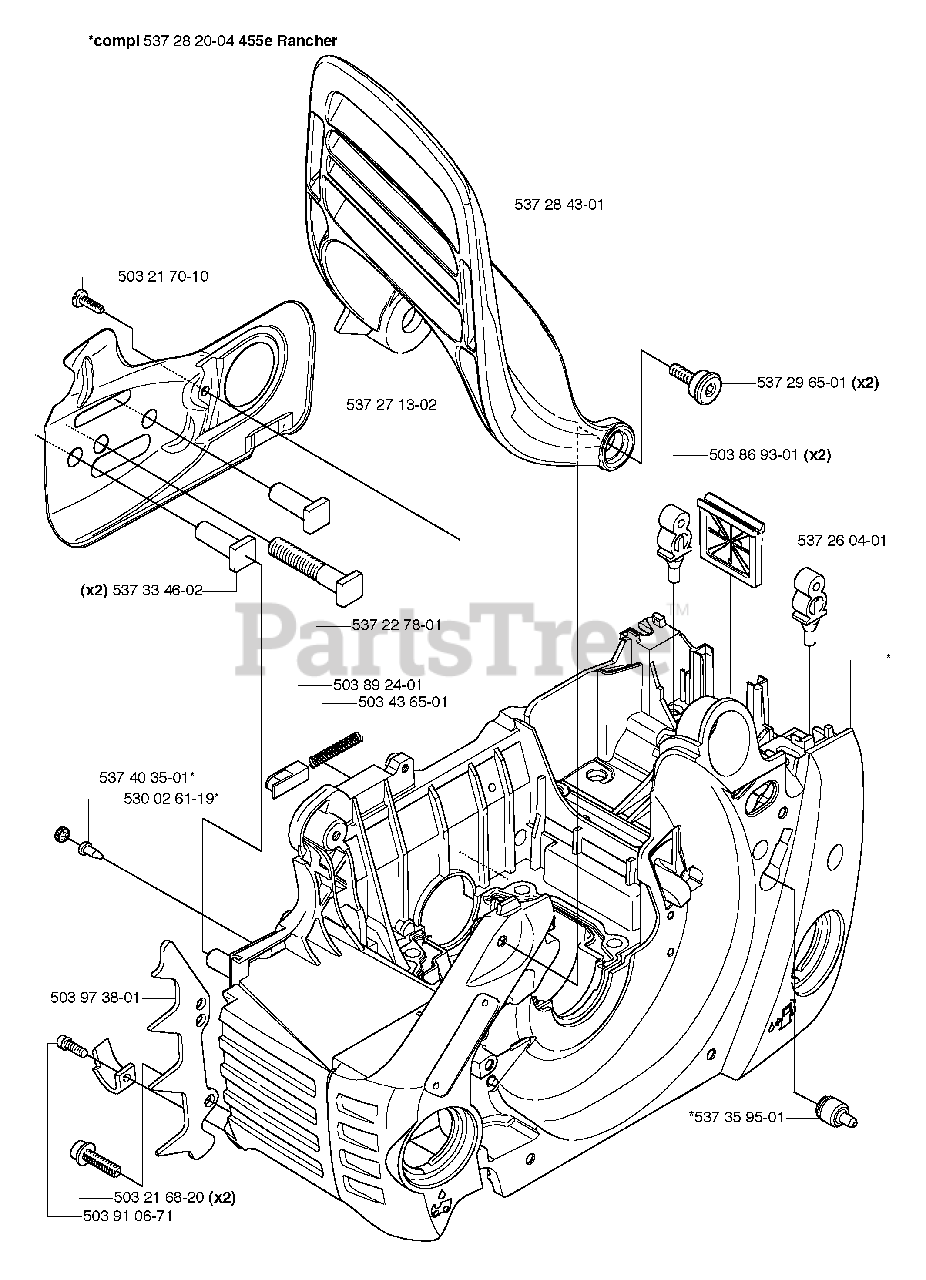

Crankcase Parts Diagram

  • Title

503216820

Husqvarna 503216820

SCREW
(Superseded to 503216220)

$4.99

$

In Stock, Qty 20+

0

503217010

Husqvarna 503217010

SCREW

$4.99

$

In Stock, Qty 17

0

503436501

Husqvarna 503436501

LOCK SPRING

$7.49

$

In Stock, only 4 left!

0

503869301

Husqvarna 503869301

SUPPORT

$8.49

$

Usually ships in 3-10 days

0

503892401

Husqvarna 503892401

CATCH

$9.99

$

In Stock, Qty 9

0

503910671

Husqvarna 503910671

CHAIN CATCHER

$12.99

$

In Stock, only 4 left!

0

503973801

Husqvarna 503973801

FELLING DOG

$31.99

$

In Stock, only 2 left!

0

530026119

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

$5.99

$

In Stock, Qty 10

0

537227801

Husqvarna 537227801

BOLT

$8.99

$

In Stock, only 4 left!

0

537260401

Husqvarna 537260401

GROMMET

$10.99

$

In Stock, Qty 7

0

537271302

Husqvarna 537271302

PLATE

$18.99

$

In Stock, only 4 left!

0

537282004

Husqvarna 537282004

RP CRANKCASE ASSEMBLY
(Superseded to 510065916)

$193.99

$

In Stock, only 1 left!

0

537284301

Husqvarna 537284301

HAND GUARD

$47.99

$

Usually ships in 3-10 days

0

537296501

Husqvarna 537296501

SCREW, HAND GUARD

$7.49

$

In Stock, only 3 left!

0

537334602

Husqvarna 537334602

GUIDE BOLT (X2)

$4.99

$

Usually ships in 3-10 days

0

537359501

Husqvarna 537359501

FUEL TANK VENT
(Superseded to 501152901)

$17.99

$

In Stock, Qty 6

0

537403501

Husqvarna 537403501

PLUG
(Superseded to 537403502)

$3.99

$

Usually ships in 3-10 days

0
