455 E - Hayter 21" Heavy-Duty Walk-Behind Mower, Canada (SN: 455E280000001 - 455E280999999) (2008) HANDLE AND BAIL ASSEMBLY Parts Diagram

21" Heavy-Duty Walk-Behind Mower, Canada

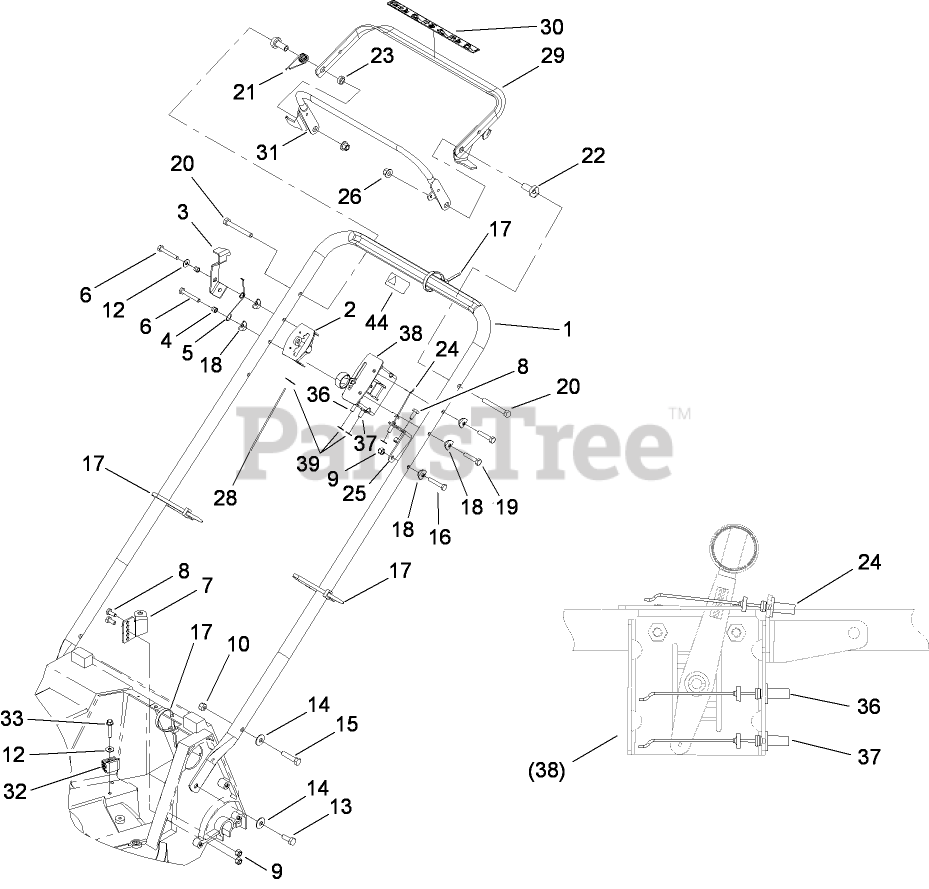

HANDLE AND BAIL ASSEMBLY Parts Diagram

  • Title
1

Toro 107-4162-03

HANDLE
(Superseded to 119-7892-03)

$

$

Not available

2

Toro 110-5026

CONTROL-SHIFT
(Superseded to 116-0504)

$96.99

$

Usually ships in 3-6 days

0

3

Toro 115-0999-01

LATCH-LEVER, BBC

$47.99

$

Usually ships in 3-6 days

0

4

Toro 110-0542

SPACER-FLANGE

$7.99

$

Usually ships in 3-6 days

0

5

Toro 115-0996

SPRING-TORSION, LATCH

$5.99

$

Usually ships in 3-6 days

0

6

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 115-4453

ANCHOR-CABLE

$

$

Not available

8

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

15

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 321-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

17

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

18

Toro 115-0995

WASHER

$6.99

$

In Stock, only 3 left!

0

19

Toro 321-13

SCREW-HH

$4.49

$

In Stock, Qty 10

0

20

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

21

Toro 115-0993

Spring-Torsion

$

$

Not available

22

Toro 49-1631

SPACER-SUPPORT

$6.49

$

In Stock, only 1 left!

0

23

Toro 59-4310

SPACER

$0.99

$

Usually ships in 3-6 days

0

24

Toro 107-4296

CABLE-BBC

$95.99

$

Usually ships in 3-6 days

0

25

Toro 115-4455

BRACKET-CABLE, BBC

$

$

Not available

26

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

28

Toro 107-4295

CABLE-SHIFT

$87.99

$

Usually ships in 3-6 days

0

29

Toro 115-4454-03

TRACTION BAIL ASM

$100.99

$

Usually ships in 3-6 days

0

30

Toro 110-2115

DECAL-CONTROL

$19.99

$

Usually ships in 3-6 days

0

31

Toro 115-4452-03

BBC BAIL ASM

$

$

Not available

32

Toro 92-7729

ANCHOR-CABLE, UPPER

$4.99

$

In Stock, only 4 left!

0

33

Toro 32144-110

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

36

Toro 107-4294

CABLE-TRACTION

$90.99

$

In Stock, only 1 left!

0

37

Toro 110-4923

THROTTLE CABLE ASM

$45.99

$

Usually ships in 3-6 days

0

38

Toro 108-2645

CONTROL-HEAD, THROTTLE

$116.99

$

In Stock, only 1 left!

0

39

Toro 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0

44

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0
