45445 - Gravely Walk-Behind 2-Wheel Tractor, 16hp, 4-Speed, Electric Start ELECTRICAL SYSTEM Parts Diagram

Walk-Behind 2-Wheel Tractor, 16hp, 4-Speed, Electric Start

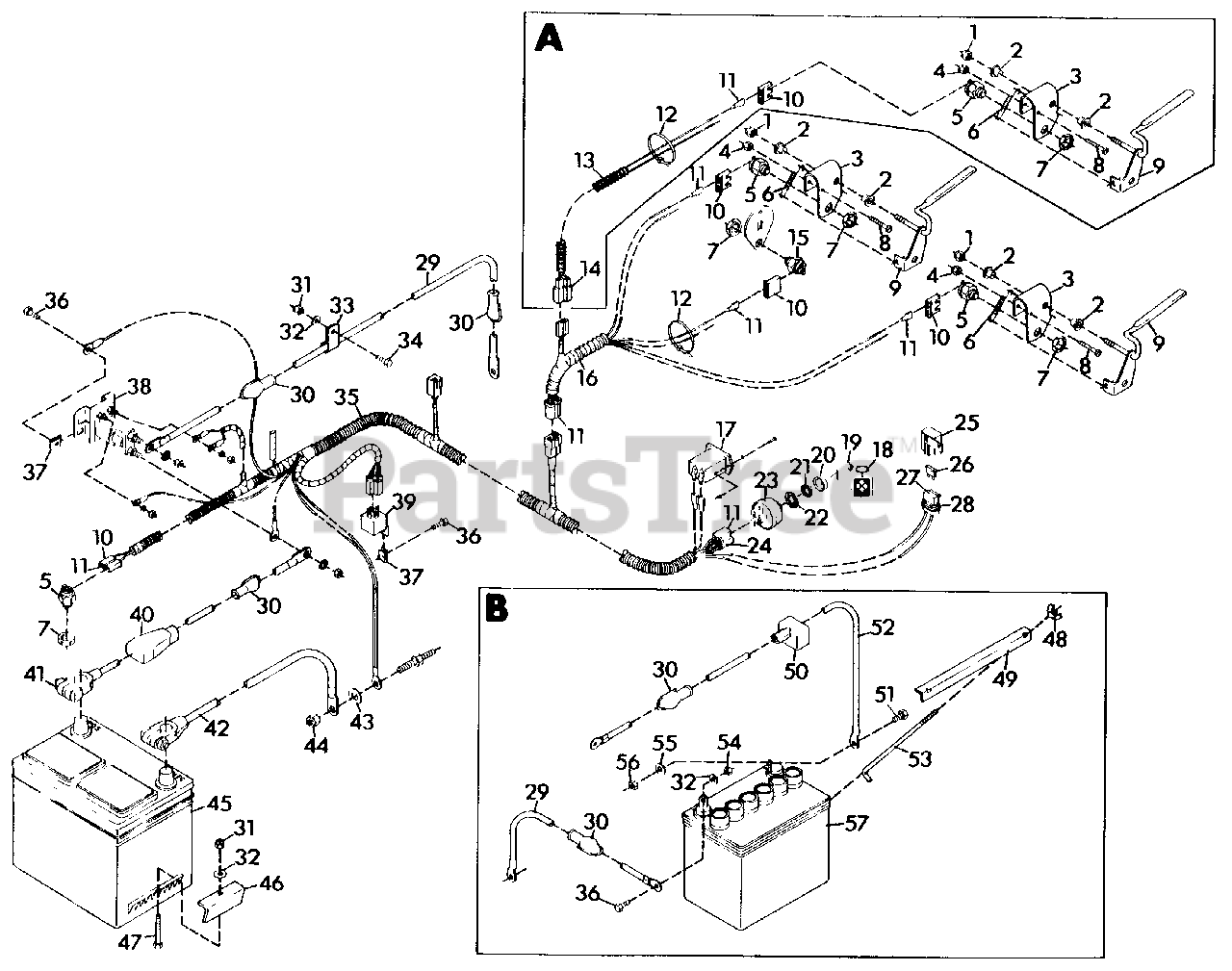

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 041988

BUSHING, INTERLOCK LEVER
(Superseded to 05517500)

$18.99

$

Usually ships in 4-12 days

0

3

Gravely 044099

BRACKET, INTERLOCK MOUNTING
(Superseded to 08553800)

$

$

Not available

4

Gravely 190254

NUT, LOCK 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 020916

SWITCH, INTERLOCK
(Superseded to 02913100)

$45.99

$

In Stock, Qty 7

0

6

Gravely 041551

SPRING, INTERLOCK LEVER
(Superseded to 08337200)

$

$

Not available

7

Gravely 107354

NUT, STAMPED 9/16-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 436738

SCREW, MACH. 10-24X1.50 PHD
(Superseded to 06118300)

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 042133

WELDMENT, HANDLE
(Superseded to 08549000)

$

$

Not available

10

Gravely 042176

CONNECTOR, 2-WIRE SWITCH
(Superseded to 08550000)

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 038059

TERMINAL
(Superseded to 08540001)

$3.99

$

In Stock, Qty 5

0

12

Gravely 041634

TIE WRAP, BLACK
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 042198

HARNESS, STEERING BRAKE
(Superseded to 08550200)

$

$

Not available

14

Gravely 038057

CONNECTOR
(Superseded to 20645000)

$

$

Not available

15

Gravely 034640

SWITCH, NEUTRAL START
(Superseded to 08803700)

$34.99

$

In Stock, only 1 left!

0

16

Gravely 042173

HARNESS, WIRING HANDLEBAR
(Superseded to 08549900)

$

$

Not available

17

Gravely 038256

HOURMETER
(Superseded to 09497400)

$23.99

$

In Stock, only 3 left!

0

18

Gravely 045842

CHAIN, KEY
(Superseded to 03490000)

$

$

Not available

19

Gravely 045488

KEY, IGNITION SWITCH
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

20

Gravely 045490

BOOT, FOR 9/16 SWITCH
(Superseded to 07517700)

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 045489

NUT, 9/16-24 FOR SWITCH
(Superseded to 06517400)

$20.99

$

In Stock, only 1 left!

0

22

Gravely 019667

WASHER, LOCK
(Superseded to 06310900)

$2.49

$

In Stock, only 2 left!

0

23

Gravely 019223

SWITCH, IGNITION
(Superseded to 59211800)

$68.99

$

In Stock, Qty 14

0

24

Gravely 038058

CONNECTOR
(Superseded to 20645101)

$7.99

$

In Stock, Qty 7

0

25

Gravely 045921

COVER
(Superseded to 20822800)

$

$

Not available

26

Gravely 045037

FUSE, 25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

27

Gravely 045923

TERMINAL, FOR 10-12 GA. WIRE
(Superseded to 20823001)

$

$

Not available

28

Gravely 045920

CONNECTOR
(Superseded to 20822700)

$

$

Not available

29

Gravely 006981

CABLE, SWITCH TO STARTER
(Superseded to 08547300)

$

$

Not available

29

Gravely 041814

CABLE, NEGATIVE BATTERY
(Superseded to 03492400)

$

$

Not available

30

Gravely 033847

BOOT, BATTERY CABLE
(Superseded to 03384700)

$

$

Not available

31

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

32

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 035313

CLAMP, NYLON
(Superseded to 03334000)

$

$

Not available

34

Gravely 180020

BOLT, HEX 1/4-20X.75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 045599

HARNESS, WIRING
(Superseded to 08571100)

Note: (10, 12, 16 hp models)

$

$

Not available

35

Gravely 045598

HARNESS, WIRING
(Superseded to 08571000)

Note: (8 hp models)

$

$

Not available

36

Gravely 180018

BOLT, HEX 1/4-20X.625
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

37

Gravely 011676

NUT, SPEED 1/4-20
(Superseded to 07016800)

$

$

Not available

38

Gravely 045071

SWITCH, MAGNETIC
(Superseded to 03551000)

$34.99

$

In Stock, Qty 15

0

39

Gravely 040216

RELAY
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

40

Gravely 034466

COVER, BATTERY TERMINAL
(Superseded to 07523100)

$

$

Not available

41

Gravely 021368

CABLE, POSITIVE BATTERY
(Superseded to 08516500)

$

$

Not available

42

Gravely 040410

CABLE, NEGATIVE BATTERY
(Superseded to 08542000)

$

$

Not available

43

Gravely 120395

WASHER, FLAT .469X.938X.065
(Superseded to 06429400)

$

$

Not available

44

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

45

Gravely 042597

BATTERY, 12 BOLT

$

$

Not available

46

Gravely 037742

CLAMP
(Superseded to 08539500)

$22.99

$

In Stock, only 1 left!

0

47

Gravely 180044

BOLT, HEX 1/4-20X2.00
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

48

Gravely 010413

NUT, WING 1/4-20
(Superseded to 06537500)

$4.99

$

In Stock, Qty 20+

0

49

Gravely 015258

HOLD DOWN, BATTERY
(Superseded to 03494051)

$11.99

$

In Stock, only 3 left!

0

50

Gravely 033846

BOOT, BATTERY CABLE
(Superseded to 07505700)

$9.49

$

Usually ships in 4-12 days

0

51

Gravely 180075

BOLT, HEX 5/16-18X.625
(Superseded to 05901832)

$

$

Not available

52

Gravely 041815

CABLE, BATTERY TO SOLENOID
(Superseded to 08547300)

$

$

Not available

53

Gravely 015257

HOOK, BATTERY HOLD DOWN
(Superseded to 03494100)

$30.99

$

Usually ships in 4-12 days

0

54

Gravely 120375

NUT, HEX 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

55

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

56

Gravely 417954

NUT, HEX 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

57

Gravely 030610

BATTERY, 12 VOLT

$

$

Not available

NS

Gravely 011989

DECAL, E.S. WARNING
(Superseded to 05216700)

$9.99

$

Usually ships in 4-12 days

0
