45405 - Gravely 60" Deck for Gear Drive Pro-Master Mower Mower Deck Parts Diagram

60" Deck for Gear Drive Pro-Master Mower

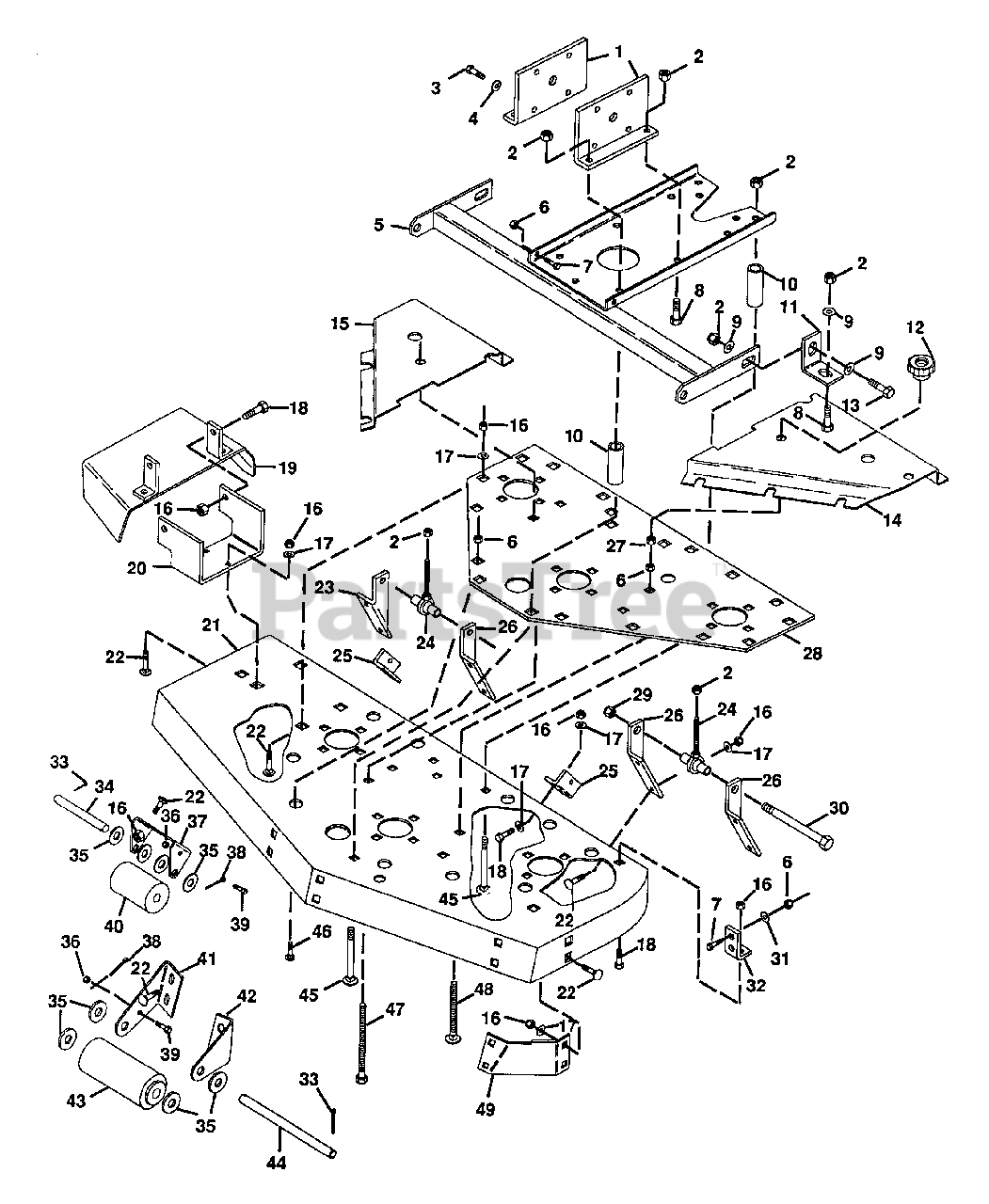

Mower Deck Parts Diagram

  • Title

1

35493

Plate, Gearbox Support

$

$

Not available

2

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

3

Gravely 180121

Bolt, Hex 3/8-16x.875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

4

Gravely 120382

Washer, Lock 3/8 Reg.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

5

44638

Weldment, Plate

$

$

Not available

6

Gravely 124824

Nut, Jam 5/16-18
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 180081

Bolt, Hex 5/16-18x1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

8

Gravely 180175

Bolt, Hex 1/2-13x1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

9

Gravely 120396

Washer, Flat .531x1 .062x.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 31367

Spacer, .850x.546x2.18

$

$

Currently unavailable

11

44656

Bracket, Deck

$

$

Not available

12

41674

Knob

$

$

Not available

13

Gravely 180177

Bolt, Hex 1/2-13x1.50
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

14

40535

Cover, Belt L.H.

$

$

Not available

15

40534

Cover, Belt R.H.

$

$

Not available

16

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

17

Gravely 120394

Washer, Flat .406x812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 180122

Bolt, Hex 3/8-16x1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

19

35668

Weldment, Discharge Chute

$

$

Not available

20

45381

Bracket, Discharge

$

$

Not available

21

45552

Weldment, 60" Deck

$

$

Not available

22

Gravely 120915

Bolt, 3/8-16x1.00 Rd Hd Sq Nk

$

$

Not available

23

35542

Plate, Rear Adjustment

$

$

Not available

24

35543

Rod, End

$

$

Not available

25

37039

Bracket, Lift

$

$

Not available

26

35541

Plate, Rear Adjustment

$

$

Not available

27

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

28

40536

Plate, Support

$

$

Not available

29

Gravely 456007

Nut, Lock 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

30

Gravely 271777

Bolt, Hex 3/4-10x3.50
(Superseded to 05971500)

$

$

Not available

31

Gravely 120393

Washer, Flat .344x.688x.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

32

35685

Bracket, Lift Pivot

$

$

Not available

33

Gravely 179128

Pin, Cotter .25x1.0
(Superseded to 06713000)

$1.49

$

In Stock, only 2 left!

0

34

45211

Rod

$

$

Not available

35

Gravely 131016

Washer, Flat .656x1 .31x.095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

36

Gravely 120375

Nut, Hex 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

37

45210

Bracket, Roller

$

$

Not available

38

Gravely 103422

Pin, Cotter .25x2.0
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

39

Gravely 180020

Bolt, Hex 1/4-20x.75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

40

15351

Roller, Gauge

$

$

Not available

41

45568

Bracket, R.H. Roller

$

$

Not available

42

45567

Bracket, L.H. Roller

$

$

Not available

43

31390

Roller, Gauge

$

$

Not available

44

24795

Shaft, Center Roller

$

$

Not available

45

Gravely 126808

Bolt, 1/2-13x3.75 Rd Hd Sq Nk
(Superseded to 06218600)

$7.99

$

Usually ships in 4-12 days

0

46

Gravely 126358

Bolt, Carriage 5/16-18x1.0
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

47

40193

Bolt, Hex 5/16-18x3.50

$

$

Not available

48

40546

Bolt, 5/16-18x4.00 Rd Hd Sq Nk

$

$

Not available

49

31354

Baffle, Front

$

$

Not available

33926

Decal, Danger Hand

Note: NS

$

$

Not available

33927

Decal, Danger Foot

Note: NS

$

$

Not available

33928

Decal, Warning Eye

Note: NS

$

$

Not available

38424

Decals, Pro Master-60 Mower

Note: NS

$

$

Not available

38769

Stripe

Note: NS

$

$

Not available

40190

Decal, Lube

Note: NS

$

$

Not available

31834

Decal, Belt Diagram

Note: NS

$

$

Not available
