454 (590-454-100) - Cub Cadet Mower Deck, Rear Mount att Check Chains (Optional Equipment) Parts Diagram

Mower Deck, Rear Mount

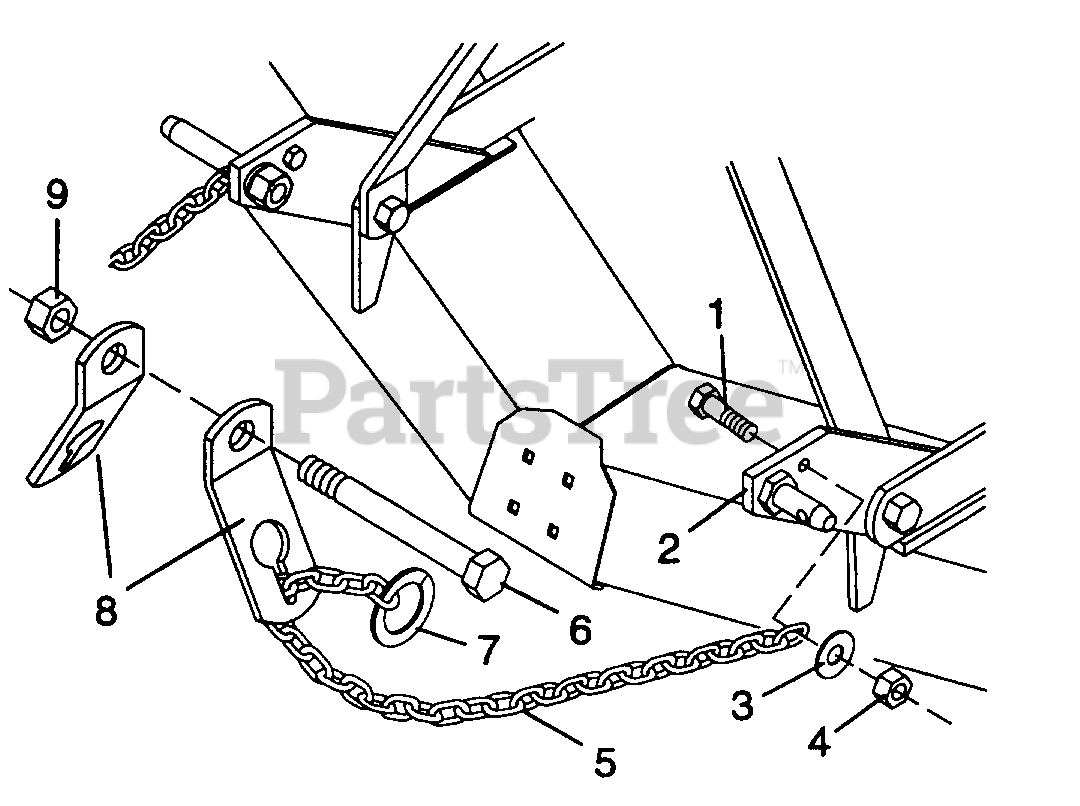

Check Chains (Optional Equipment) Parts Diagram

  • Title
1

Cub Cadet WM-5795

7/16 NC x 1-1/2 Hex head cap screw GR5

Note: Obtain Locally

$

$

Currently unavailable

2

UNKNOWN

$

$

Not available

3

Cub Cadet WM-2210

7/16 Standard flat washer
(Superseded to 936-0406)

Note: Obtain Locally

$6.99

$

In Stock, Qty 11

0

4

Cub Cadet WM-13921

7/16 NC Hex locknut
(Superseded to 712-0290)

Note: Obtain Locally

$4.99

$

In Stock, Qty 11

0

5

Cub Cadet WM-28998

Chain, 1/4 proof coil x 32.56

$

$

Not available

6

Cub Cadet WM-2377

3/4 NC x 6 Hex head cap screw GR5

$

$

Not available

7

Cub Cadet WM-5278

.048 x 2-1/4 Snap ring

$

$

Not available

8

Cub Cadet WM-23898

Check chain bracket

$

$

Not available

9

Cub Cadet WM-2371

3/4 NC Hex locknut

Note: Obtain Locally

$

$

Currently unavailable
