4516K - Dixon Zero-Turn Mower (2004) WIRING Parts Diagram

Zero-Turn Mower

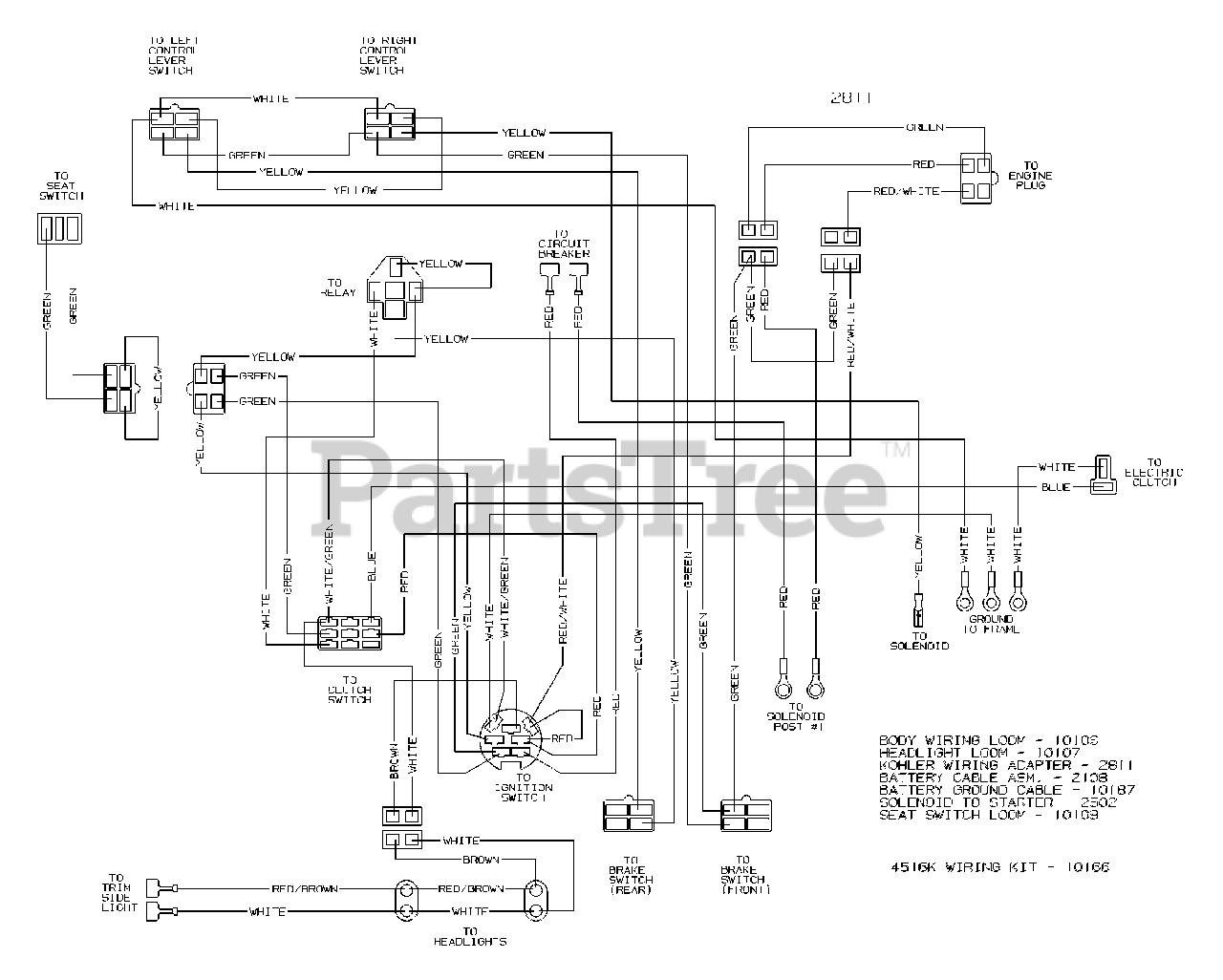

WIRING Parts Diagram

  • Title
2108

2108

BATTERY CABLE

$

$

Not available

2502

2502

SOL. TO STARTER CABLE

$

$

Not available

2811

2811

ADAPTER LOOM

$

$

Not available

10106

10106

BODY WIRE LOOM 4500

$

$

Not available

10107

10107

HEADLIGHT LOOM

$

$

Not available

10108

10108

SEAT SWITCH LOOM

$

$

Not available

10166

10166

NLA 516K WIRING KIT

$

$

Not available

10187

10187

GROUND CABLE

$

$

Not available
