45149 - Gravely 36" Snow Blower for 1100 & 1200 Series Tractor CARRIAGE ASSEMBLY AND PTO Parts Diagram

36" Snow Blower for 1100 & 1200 Series Tractor

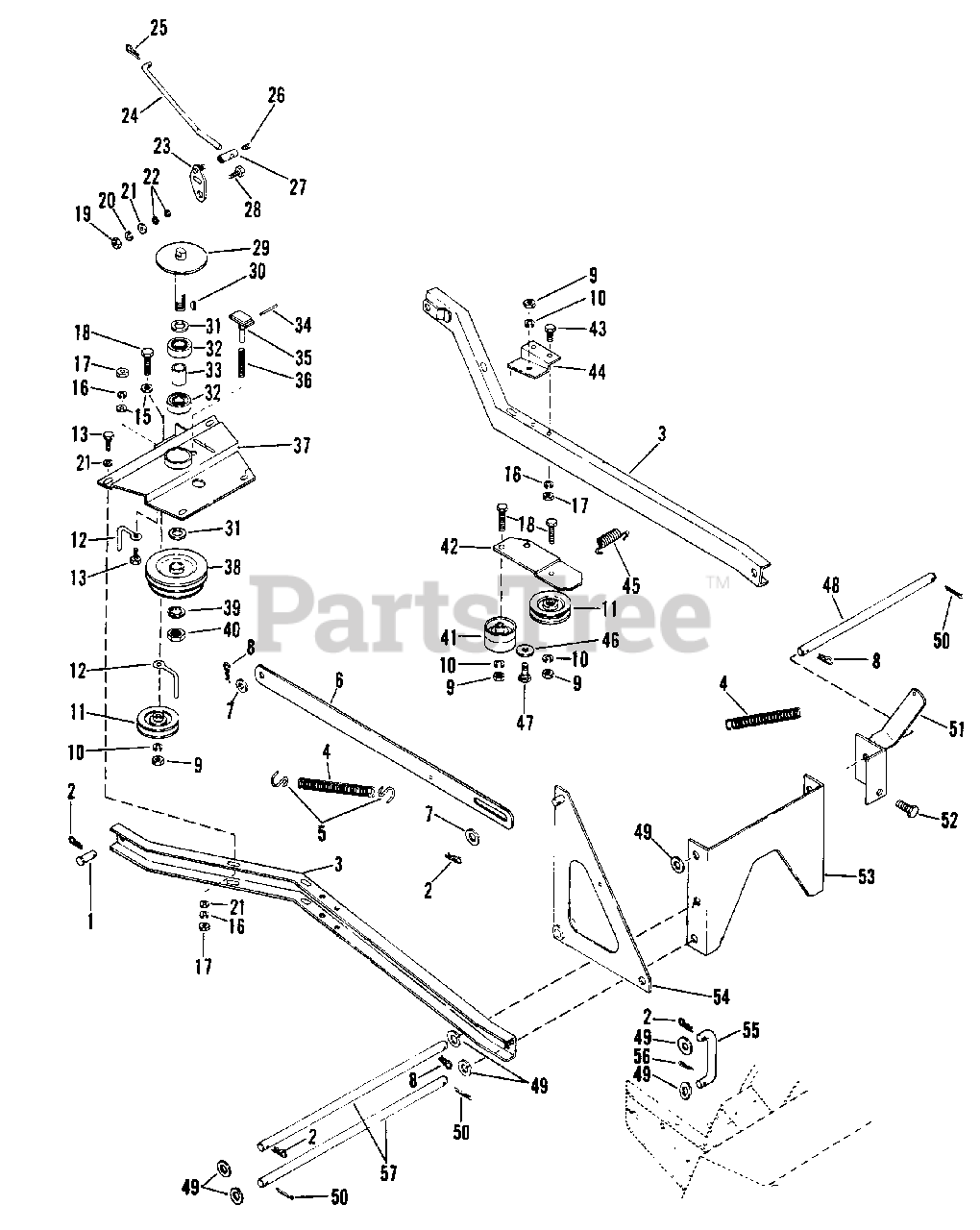

CARRIAGE ASSEMBLY AND PTO Parts Diagram

  • Title

1

Gravely 036568

Pin, Clevis
(Superseded to 06821600)

$3.99

$

In Stock, only 1 left!

0

2

Gravely 036566

Hairpin, Internal
(Superseded to 06702900)

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 036544

Channel
(Superseded to 03508000)

$

$

Not available

4

Gravely 036558

Spring, Ext. 9-15/16 Free Length
(Superseded to 08313300)

$45.99

$

In Stock, only 2 left!

0

5

Gravely 036909

Hook, ÒS"
(Superseded to 03192200)

$

$

Not available

6

Gravely 036564

Strap, Lift
(Superseded to 03508400)

$

$

Not available

7

Gravely 120389

Washer, Flat .500x1.250x.083
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

8

Gravely 010405

Pin, Hair
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

9

Gravely 120377

Nut, Hex 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 120382

Washer, Lock 3/8 Reg.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 036256

Idler .375x3.06
(Superseded to 07310900)

$23.99

$

In Stock, only 1 left!

0

12

Gravely 036235

Finger, Belt
(Superseded to 03175500)

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 180079

Bolt, Hex 5/16-18x1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 120379

Washer, Lock 5/16 SP
(Superseded to 06304800)

$

$

Not available

17

Gravely 120376

Nut, Hex 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

18

Gravely 180128

Bolt, Hex 3/8-16x1.75
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 120375

Nut, Hex 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

20

Gravely 120380

Washer, Lock
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 120386

Washer, .312x.734x.065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 446179

Washer, Flat .250x.500x.049
(Superseded to 21071000)

$

$

Not available

23

Gravely 036828

Actuator, Brake
(Superseded to 03517400)

$

$

Not available

24

Gravely 036834

Rod, Brake
(Superseded to 03517700)

$

$

Not available

25

Gravely 036185

Pin, Hair Int. 3/32
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 102581

Set Screw, 5/16-18x.375 HSCP
(Superseded to 06005500)

$2.99

$

In Stock, Qty 13

0

27

Gravely 036835

Adaptor, Rod
(Superseded to 02213500)

$38.99

$

Usually ships in 4-12 days

0

28

Gravely 180020

Bolt, Hex 1/4-20x.750
(Superseded to 05901716)

$0.99

$

In Stock, Qty 19

0

29

Gravely 036832

Shaft, Spindle
(Superseded to 03517800)

$

$

Not available

30

Gravely 106751

Key, Woodruff .187x.75x#9
(Superseded to 06600300)

$1.49

$

In Stock, Qty 11

0

31

Gravely 131000

Washer, Flat .813x2.0x.148
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0

32

Gravely 035925

Bearing, Radial
(Superseded to 05412000)

$13.99

$

In Stock, Qty 7

0

33

Gravely 036827

Spacer
(Superseded to 03517300)

$

$

Not available

34

Gravely 036831

Pin, Spring .187x1.75
(Superseded to 05805600)

$1.99

$

Usually ships in 4-12 days

0

35

Gravely 036829

Plunger, Brake
(Superseded to 03598600)

$39.99

$

Usually ships in 4-12 days

0

36

Gravely 036830

Spring, Comp.
(Superseded to 08301500)

$5.99

$

Usually ships in 4-12 days

0

37

Gravely 036826

Housing, Spindle
(Superseded to 03517200)

$

$

Not available

38

Gravely 036833

Sheave, Double
(Superseded to 03517900)

$

$

Not available

39

Gravely 036225

Lockwasher, Internal 3/4
(Superseded to 03559000)

$19.99

$

Usually ships in 4-12 days

0

40

Gravely 426897

Nut, Jam 3/4-10 Hex
(Superseded to 06537700)

$2.49

$

In Stock, only 2 left!

0

41

Gravely 036247

Idler, .375x2.25
(Superseded to 07310800)

$34.99

$

In Stock, only 1 left!

0

42

Gravely 036838

Arm, Idler
(Superseded to 03518100)

$

$

Not available

43

Gravely 180077

Bolt, Hex 5/16-18x.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 036837

Mount, Idler
(Superseded to 03518000)

$

$

Not available

45

Gravely 036907

Spring, Ext. 3-1/16 Free Length
(Superseded to 08318600)

$

$

Not available

46

Gravely 036840

Washer, Flat .515x1.441x.1
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

47

Gravely 049109

Bolt, Shoulder
(Superseded to 07000034)

$3.99

$

In Stock, only 1 left!

0

48

Gravely 049110

Rod, Mount
(Superseded to 03581300)

$

$

Not available

49

Gravely 131016

Washer, .656x1.312x.095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

50

Gravely 137228

Pin, Cotter .156x1.50
(Superseded to 06713800)

$3.99

$

In Stock, Qty 5

0

51

Gravely 049112

Anchor, Spring
(Superseded to 03518300)

$

$

Not available

52

Gravely 180175

Bolt, Hex 1/2-13x1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

53

Gravely 036560

Support, Pivot
(Superseded to 03508100)

$

$

Not available

54

Gravely 049111

Bellcrank, Lift
(Superseded to 03581400)

$

$

Not available

55

Gravely 049113

Link, Lift
(Superseded to 03581100)

$

$

Not available

56

Gravely 137185

Pin, Cotter .125x1.00
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

57

Gravely 036561

Rod, Pivot
(Superseded to 03508300)

$

$

Not available
