45149 - Gravely 36" Snow Blower for 1100 & 1200 Series Tractor BELT DRIVE Parts Diagram

36" Snow Blower for 1100 & 1200 Series Tractor

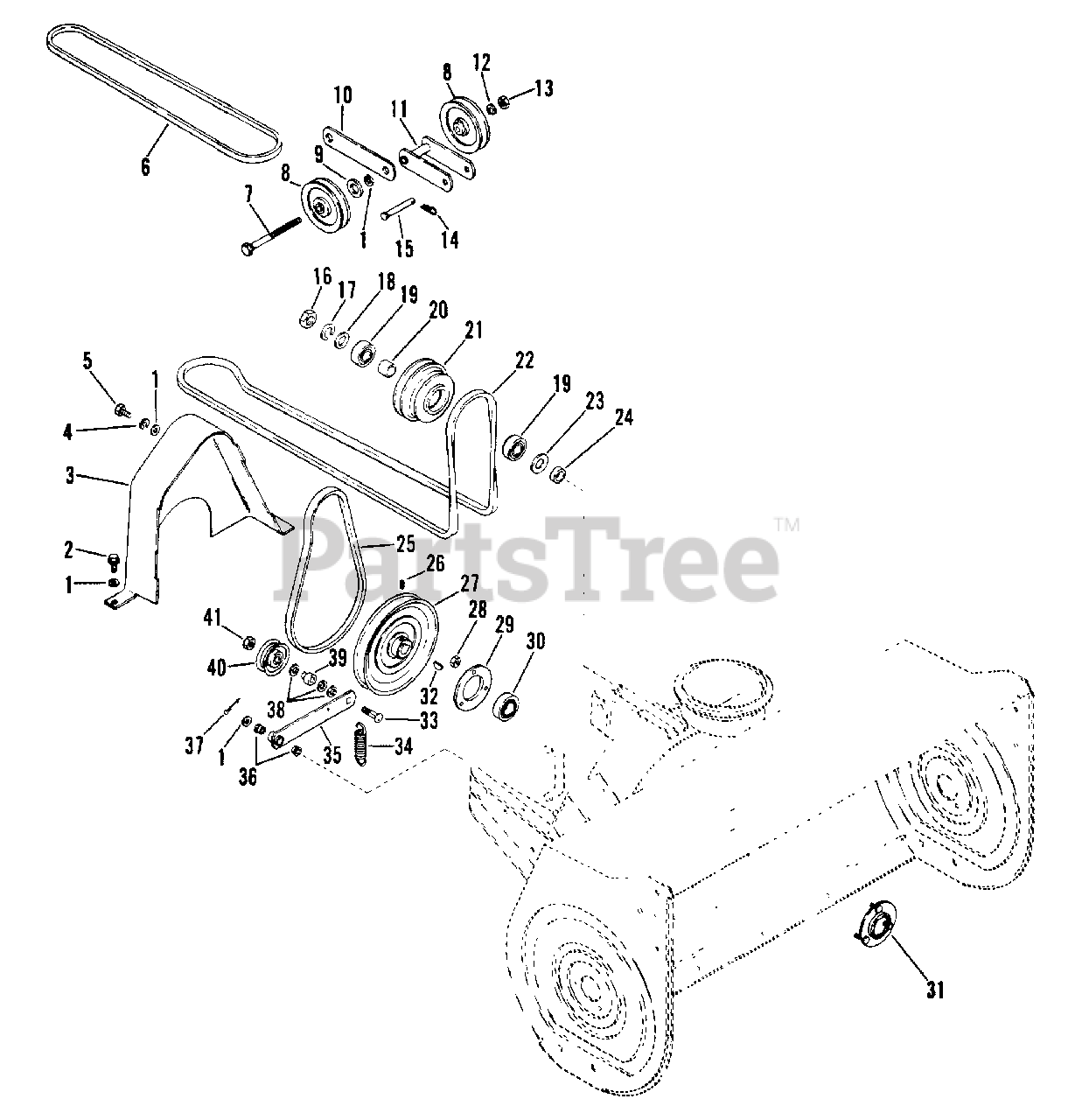

BELT DRIVE Parts Diagram

  • Title
1

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 036905

Taptite, 5/16-18x.50
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 036904

Guard, Belt
(Superseded to 03520000)

$

$

Not available

4

Gravely 120379

Washer, Lock 5/16 SP
(Superseded to 06304800)

$

$

Not available

5

Gravely 180077

Bolt, Hex 5/16-18x.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 036004

Belt
(Superseded to 07211800)

$29.99

$

In Stock, only 1 left!

0

7

Gravely 189306

Bolt, Hex 3/8-16x5.00
(Superseded to 05957700)

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 036844

Idler, .375x4
(Superseded to 07300528)

$39.99

$

In Stock, only 2 left!

0

9

Gravely 423315

Washer, Flat .813x1.37x.100
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 036842

Strap
(Superseded to 03339543)

$

$

Not available

11

Gravely 036843

Bracket, Idler
(Superseded to 03518500)

$

$

Not available

12

Gravely 120382

Washer, Lock 3/8 Reg.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 120377

Nut, Hex 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 036075

Hairpin, Internal
(Superseded to 06701000)

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 036845

Pin, Clevis
(Superseded to 03518600)

$

$

Not available

16

Gravely 426897

Nut, Jam 3/4-10 Hex
(Superseded to 06537700)

$2.49

$

In Stock, only 2 left!

0

17

Gravely 036225

Lockwasher, Internal .75 I.D.
(Superseded to 03559000)

$19.99

$

Usually ships in 4-12 days

0

18

Gravely 036918

Washer, .770x1.250x06
(Superseded to 06416700)

$

$

Not available

19

Gravely 035925

Bearing, Radial
(Superseded to 05412000)

$13.99

$

In Stock, Qty 7

0

20

Gravely 036915

Spacer
(Superseded to 03519000)

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 036914

Sheave
(Superseded to 03518900)

$

$

Not available

22

Gravely 036879

V-Belt, .5x109" 4L
(Superseded to 07212000)

$56.99

$

Usually ships in 4-12 days

0

23

Gravely 036917

Washer, .774/.811x1.500x.187
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 036916

Spacer
(Superseded to 03519100)

$

$

Not available

25

Gravely 049115

V-Belt
(Superseded to 07214200)

$26.99

$

In Stock, only 1 left!

0

26

Gravely 039925

Set Screw, 5/16-18x.50 SKH
(Superseded to 06003200)

$

$

Not available

27

Gravely 036877

Sheave, .625x7.50
(Superseded to 07309400)

$

$

Not available

28

Gravely 424215

Nut, Lock 1/4-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 036874

Bearing, Flange
(Superseded to 03185900)

$22.99

$

In Stock, only 3 left!

0

30

Gravely 036876

Bearing, Ball
(Superseded to 05416000)

$14.99

$

In Stock, Qty 7

0

31

Gravely 036875

Bearing, Flange
(Superseded to 03186000)

$45.99

$

Usually ships in 4-12 days

0

32

Gravely 120502

Key, Wdrff .187x.875 HRD #11
(Superseded to 06608200)

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 126411

Bolt, 3/8-16x1.50 Rd Hd Sq Nk
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

34

Gravely 036850

Spring, Ext. 3-1/2 Free Length
(Superseded to 08312200)

$34.99

$

In Stock, only 1 left!

0

35

Gravely 036847

Arm, Idler
(Superseded to 03518800)

$

$

Not available

36

Gravely 036241

Bushing, Flange .375x.500x.312
(Superseded to 05503600)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 177923

Pin, Cotter .125x.75
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

38

Gravely 120396

Washer, Flat .531x1.062x.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 036849

Spacer
(Superseded to 03114500)

$9.99

$

In Stock, only 1 left!

0

40

$

$

Not available

41

Gravely 413534

Nut, Lock 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0
