4510 (31AH97P7711) - Troy-Bilt Polar Blast 45" Snow Thrower (2012) Handle Panel & Discharge Chute Parts Diagram

Polar Blast 45" Snow Thrower

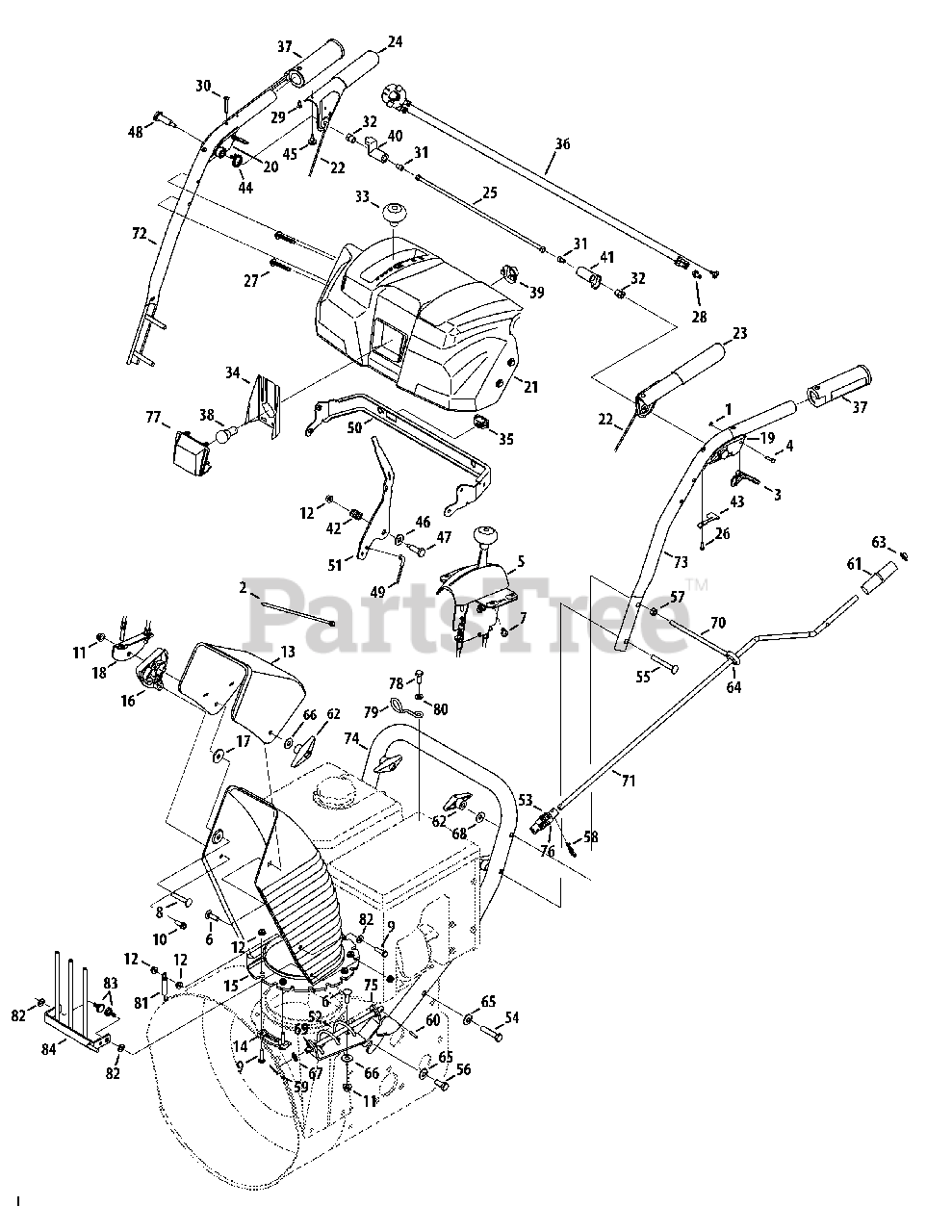

Handle Panel & Discharge Chute Parts Diagram

  • Title

1

Troy-Bilt 716-04036

E-Ring

$6.49

$

In Stock, Qty 6

0

2

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 731-04913

Trigger Lock

$5.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 738-04126

Pin, 3/16

$3.99

$

In Stock, Qty 17

0

5

Troy-Bilt 984-04230

Chute Control Assembly

$134.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-0276

Carriage Screw, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 12

0

7

Troy-Bilt 710-04187

Screw, 1/4-15 x .50
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 7

0

8

Troy-Bilt 710-0458

Carriage Screw, 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

9

Troy-Bilt 710-0597

Hex Screw 1/4-20 x 1.0

$3.99

$

In Stock, Qty 14

0

10

Troy-Bilt 710-0895

Screw, 1/4-15 x .750

$6.49

$

In Stock, Qty 5

0

11

Troy-Bilt 712-04063

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-04064

Flange Lock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 731-0846C

Upper Chute, 6.0

$52.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 731-0903E

Lower Chute

$43.99

$

In Stock, Qty 8

0

16

Troy-Bilt 731-1313C

Cbl. Guide, Chute Tilt

$11.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 936-0231

Flat Wash, .344 x 1.125 x .12
(Superseded to 736-0231)

$

$

Not available

18

Troy-Bilt 784-5594

Cable Bracket

Variations

Troy-Bilt 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 1 left!

0

Troy-Bilt 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 1 left!

0

Troy-Bilt 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 631-04133A

Handle Assembly, LH

$15.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 631-04134B

Handle Assembly, RH

$15.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 931-04181A

Handle Panel

$59.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 646-0012

Cable Ass’y, Auger/Drive

$36.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 684-04105B

Engagement Handle, LH
(Superseded to 684-04105D)

$22.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 684-04106C

Engagement Handle, RH
(Superseded to 684-04106D)

$21.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 684-04250

Clutch Lock Rod Assembly

$12.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 710-04326

Screw, #8-16 x .50

$3.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 710-04586

Screw, 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

28

Troy-Bilt 710-0599

Hex Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 710-0837

Screw, #10-16 x .625

$4.49

$

In Stock, Qty 6

0

30

Troy-Bilt 710-1233

Screw, #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

31

Troy-Bilt 710-3069

Screw, 1/4-20 x .50

$4.99

$

In Stock, Qty 10

0

32

Troy-Bilt 712-04081A

Nut, Hex, 1/4-20

$7.49

$

In Stock, only 2 left!

0

33

Troy-Bilt 720-04039

Shift Knob

$10.99

$

In Stock, only 2 left!

0

34

Troy-Bilt 777X41805

Lens Lable

$9.49

$

In Stock, only 4 left!

0

35

Troy-Bilt 725-04393

Heated Grip Switch

$16.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 725-05148

Wire Harness

$69.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 725-05149

Heated Grip

$80.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 925-1629

Lamp, 12.8V

$11.99

$

In Stock, Qty 14

0

39

Troy-Bilt 925-1649

Light Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 731-04894D

Lock Plate

$5.49

$

In Stock, only 1 left!

0

41

Troy-Bilt 731-04896B

Clutch Lock Cam
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 6

0

42

Troy-Bilt 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

43

Troy-Bilt 732-04219C

Clutch Lock Spring

$4.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 732-04238

Torsion Spring, .8156 ID x .3038
(Superseded to 732-04238B)

$5.49

$

In Stock, Qty 11

0

45

Troy-Bilt 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$7.99

$

In Stock, only 4 left!

0

46

Troy-Bilt 936-0267

Flat Washer, .385 x .87 x .06
(Superseded to 736-0267)

$4.49

$

In Stock, only 1 left!

0

47

Troy-Bilt 738-04125

Screw, Shldr., .374 x 1.05

$4.99

$

In Stock, only 4 left!

0

48

Troy-Bilt 738-04348

Screw, Shldr., .437 x 1.345

$3.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 746-04341

Clutch Cable

$25.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 790-00248C-0637

Panel Bracket
(Superseded to 790-00248E-0637)

$24.99

$

In Stock, only 1 left!

0

51

Troy-Bilt 790-00281B

Shift Lever

Variations

Troy-Bilt 790-00281B-0637

LEVER-SHIFT 700/90 - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 684-04308A

Chute Crank Assembly

$39.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 684-04350

Joint Block Assembly

$29.99

$

In Stock, only 4 left!

0

54

Troy-Bilt 710-04682

Hex Screw, 3/8-16 x 2.00

$5.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 710-0572

Carriage Screw, 5/16-18 x 2.5

$4.49

$

In Stock, only 4 left!

0

56

Troy-Bilt 710-3118

Screw, Hex, 3/8-16 x 1.00

$5.49

$

Usually ships in 3-6 days

0

57

Troy-Bilt 912-3010

Nut, Hex, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

58

Troy-Bilt 914-0101

Internal Cotter Pin
(Superseded to 714-0101)

$

$

Not available

59

Troy-Bilt 914-0104

Internal Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

60

Troy-Bilt 715-04095

Spring Pin, .156 dia. x .875 Lg.

$5.49

$

In Stock, only 2 left!

0

61

Troy-Bilt 720-0201A

Knob, Crank

$10.99

$

In Stock, only 4 left!

0

62

Troy-Bilt 920-0284

Knob, Wing Nut, 5/16-18
(Superseded to 720-0284)

$

$

Not available

63

Troy-Bilt 926-0100

Push Cap, 3/8
(Superseded to 726-0100)

$

$

Not available

64

Troy-Bilt 735-0234

Rubber Grommet

$5.49

$

In Stock, only 2 left!

0

65

Troy-Bilt 736-0105

Bell Wash, .375 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

66

Troy-Bilt 936-0159

Flat Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

67

Troy-Bilt 936-0185

Flat Wash, .375 x .738 x .063
(Superseded to 736-0185)

$3.99

$

In Stock, only 2 left!

0

68

Troy-Bilt 736-0242

Wash, Bell, .34 x .872 x .06

$4.49

$

In Stock, Qty 20+

0

69

Troy-Bilt 941-0475

Plastic Bushing, .38 ID

$4.49

$

In Stock, Qty 20+

0

70

Troy-Bilt 747-04747

Eye Bolt, .70 Dia.

$12.99

$

Usually ships in 3-6 days

0

71

Troy-Bilt 747-04925A-0637

Chute Rod, .375 Dia. x 29.72

$38.99

$

Usually ships in 3-6 days

0

72

Troy-Bilt 749-04674-0638

Handle, Upper, RH
(Superseded to 749-04674-0637)

$51.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 749-04675-0638

Handle, Upper, LH
(Superseded to 749-04675-0637)

$51.99

$

Usually ships in 3-6 days

0

74

Troy-Bilt 749-0991-0638

Handle, Lower

$68.99

$

Usually ships in 3-6 days

0

75

Troy-Bilt 790-00329-0637

Chute Crank Bracket

$16.99

$

Usually ships in 3-6 days

0

76

Troy-Bilt 715-0150

Roll Pin, 3/16 Dia. x 1.100

$4.49

$

In Stock, Qty 17

0

77

Troy-Bilt 731-05319

Lens

$13.99

$

In Stock, only 4 left!

0

78

Troy-Bilt 710-04022

Hex Screw, M8-1.25
(Superseded to 710-1681)

$5.99

$

Usually ships in 3-6 days

0

79

Troy-Bilt 732-04677

Cable Guide

$8.99

$

Usually ships in 3-6 days

0

80

Troy-Bilt 936-0264

Flat Washer, .330 x .630 x .0635

$6.99

$

In Stock, only 3 left!

0

81

Troy-Bilt 932-0264

Spring, Extension, .38 OD x 2.50

$4.99

$

In Stock, Qty 20+

0

82

Troy-Bilt 936-0463

Flast Washer, .25 x .63 x .052
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

83

Troy-Bilt 938-0255

Shoulder Screw, .375 Dia. x .181

$5.49

$

In Stock, Qty 8

0

84

Troy-Bilt 784-5192-0637

Guard Assembly, 6" Dia. Chut

$99.99

$

Usually ships in 3-6 days
