4510 (31AH9777766) - Troy-Bilt Polar Blast 45" Snow Thrower (2009) Handle Panel & Discharge Chute Parts Diagram

Polar Blast 45" Snow Thrower

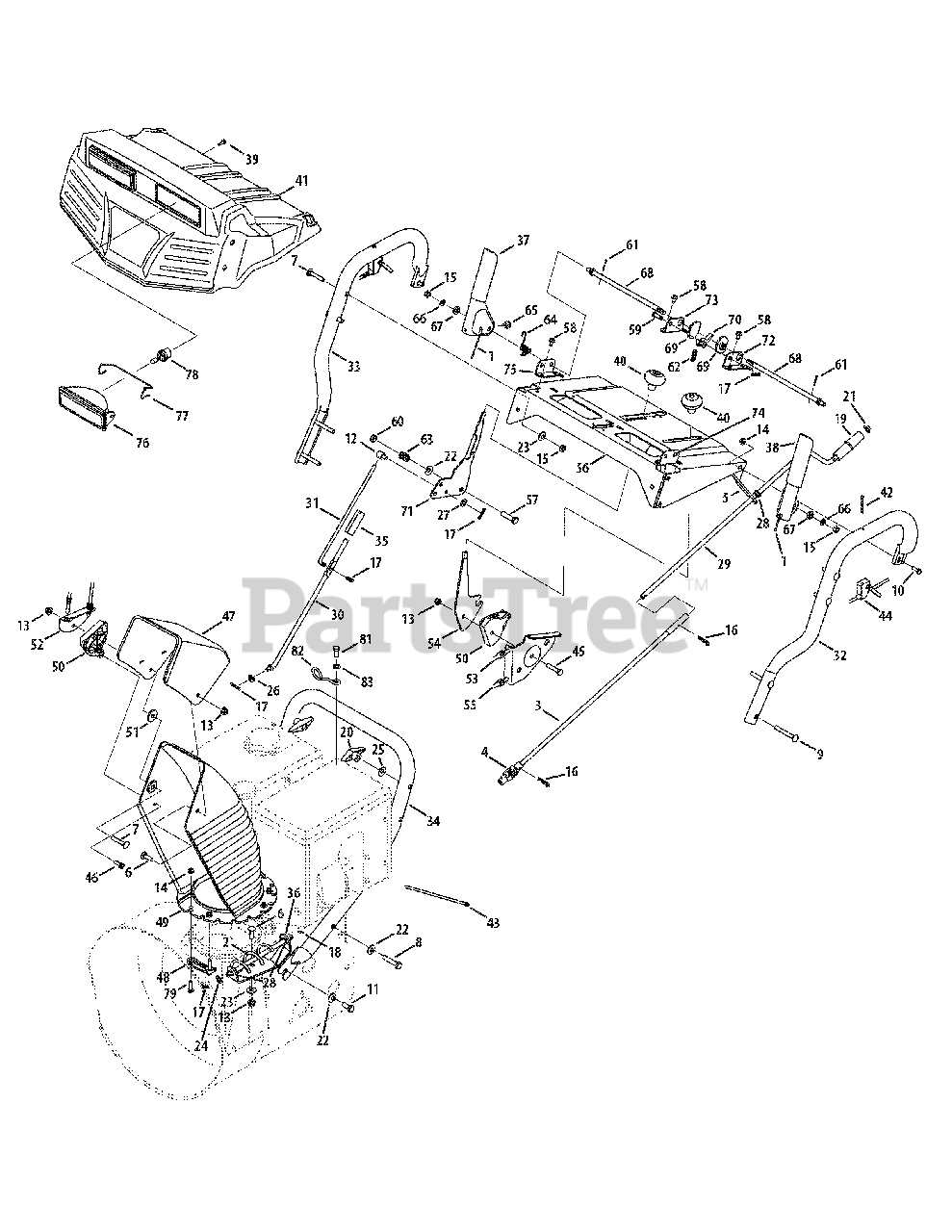

Handle Panel & Discharge Chute Parts Diagram

  • Title

1

Troy-Bilt 646-0012

Cable Ass’y, Auger/Drive

$36.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 684-04308A

Chute Crank Assembly

$39.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 684-04309A-0637

Chute Crank Rod Assembly

$59.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 684-04350

Joint Block Assembly

$29.99

$

In Stock, only 4 left!

0

5

Troy-Bilt 705-5266-0637

Chute Crank Bracket

$15.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-0276

Carriage Screw, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0458

Carriage Screw, 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

8

Troy-Bilt 710-04682

Hex Screw, 3/8-16 x 2.00

$5.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 710-0572

Carriage Screw, 5/16-18 x 2.5

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-3015

Hex Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-3118

Screw, Hex, 3/8-16 x 1.00

$5.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 911-0677

Ferrule, 5/16-18 x .312 Dia

$17.99

$

In Stock, only 4 left!

0

13

Troy-Bilt 712-04063

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 712-04064

Flange Lock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 912-3009

Hex Lock Nut, 5/16-18 GR5
(Superseded to 712-3009)

$

$

Not available

16

Troy-Bilt 914-0101

Internal Cotter Pin
(Superseded to 714-0101)

$

$

Not available

17

Troy-Bilt 914-0104

Internal Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 715-04095

Spring Pin, .156 dia. x .875 Lg.

$5.49

$

In Stock, Qty 14

0

19

Troy-Bilt 720-0201A

Knob, Crank

$10.99

$

In Stock, only 4 left!

0

20

Troy-Bilt 720-04072A

Wing Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 926-0100

Push Cap, 3/8
(Superseded to 726-0100)

$

$

Not available

22

Troy-Bilt 736-0105

Bell Wash, .375 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 936-0159

Flat Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

24

Troy-Bilt 936-0185

Flat Wash, .375 x .738 x .063
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 736-0242

Wash, Bell, .34 x .872 x .06

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 936-0275

Flat Wash, .344 x .688 x .065
(Superseded to 736-0275)

$

$

Not available

27

Troy-Bilt 936-3008

Flat Washer, .344 x .750 x .120

$6.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 941-0475

Plastic Bushing, .38 ID

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 747-0624-0637

Upper Chute Crank Rod

$24.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 747-0983A

Lower Shift Rod

$45.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 747-0997

Upper Shift Rod

$69.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 749-0989A-0638

Handle, Upper LH

$91.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 749-0990A-0638

Handle, Upper RH

$94.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 749-0991-0638

Handle, Lower

$68.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 950-0963

Shift Rod Connector

$34.99

$

In Stock, only 3 left!

0

36

Troy-Bilt 790-00329-0637

Chute Crank Bracket

$16.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 705-5218

Engagement Handle, RH

$37.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 705-5219

Engagement Handle, LH

$37.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 710-1003

Screw, #10-16 x .625
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 720-04039

Shift Knob

$10.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 731-04069

Handle Panel, 7-Style

$70.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 710-1625

Screw, #10-24 x 1.75

$6.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 746-0950A

Trigger Control

$22.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 710-0805

Hex Screw 5/16-18 x 1.5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

46

Troy-Bilt 710-0895

Hex Screw, 1/4-15 x .75

$6.49

$

In Stock, Qty 10

0

47

Troy-Bilt 731-0846C

Upper Chute, 6.0

$52.99

$

In Stock, only 3 left!

0

48

Troy-Bilt 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

49

Troy-Bilt 731-0903E

Lower Chute

$43.99

$

In Stock, Qty 17

0

50

Troy-Bilt 731-1313C

Cbl. Guide, Chute Tilt

$11.99

$

In Stock, Qty 20+

0

51

Troy-Bilt 936-0231

Flat Wash, .344 x 1.125 x .12
(Superseded to 736-0231)

$

$

Not available

52

Troy-Bilt 784-5594-0637

Cable Bracket

$11.99

$

In Stock, only 3 left!

0

53

Troy-Bilt 746-0902

Chute Control Cable, 66"
(Superseded to 946-0902)

$49.99

$

In Stock, only 1 left!

0

54

Troy-Bilt 784-5604A-0637

Chute Tilt Handle

$25.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 746-0903

Chute Control Cable w/Clip
(Superseded to 946-0903)

$53.99

$

In Stock, only 1 left!

0

56

Troy-Bilt 684-0102A-0637

Handle Panel
(Superseded to 684-0102A)

$133.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 710-0459A

Hex Screw, 3/8-24 x 1.5

$6.99

$

In Stock, Qty 8

0

58

Troy-Bilt 710-0599

Hex Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

59

Troy-Bilt 711-0653

Clevis Pin, .312 x 1.0

$3.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt 912-0116

Insert Nut, 3/8-24
(Superseded to 712-0116)

$

$

Not available

61

Troy-Bilt 914-0507

Cotter Pin, 3/32 x .75

$4.49

$

In Stock, Qty 17

0

62

Troy-Bilt 732-0145

Compression Spring

$4.49

$

Usually ships in 3-6 days

0

63

Troy-Bilt 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

64

Troy-Bilt 732-0746

Torsion Spring

$4.49

$

In Stock, Qty 13

0

65

Troy-Bilt 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$7.99

$

In Stock, only 2 left!

0

66

Troy-Bilt 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

67

Troy-Bilt 736-0509

Flat Wash, .35 Sq x .72 x .134

$6.99

$

In Stock, only 1 left!

0

68

Troy-Bilt 747-0877

Cam Rod

$22.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 748-0362

Handle Lock Cam

$7.99

$

Usually ships in 3-6 days

0

70

Troy-Bilt 948-0363

Handle Lock Pawl

$16.99

$

Usually ships in 3-6 days

0

71

Troy-Bilt 784-5619B-0637

Shift Handle

$28.99

$

Usually ships in 3-6 days

0

72

Troy-Bilt 784-5679-0637

Handle Support Bracket - LH

$8.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 784-5680-0637

Handle Support Bracket - RH

$12.99

$

Usually ships in 3-6 days

0

74

Troy-Bilt 784-5681

Handle Support Bracket - LH

Variations

Troy-Bilt 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

75

Troy-Bilt 784-5682-0637

Handle Support Bracket - RH

$28.99

$

Usually ships in 3-6 days

0

76

Troy-Bilt 925-1672

Light Assembly

$89.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 747-1136

Headlight Retainer

$11.99

$

Usually ships in 3-6 days

0

78

Troy-Bilt 925-1658

Lamp

$60.99

$

In Stock, only 4 left!

0

79

Troy-Bilt 710-0597

Hex Screw 1/4-20 x 1.0

$3.99

$

In Stock, Qty 13

0

81

Troy-Bilt 710-04022

Hex Head Screw, MB-1.25
(Superseded to 710-1681)

$5.99

$

Usually ships in 3-6 days

0

82

Troy-Bilt 732-04677

Cable Guide

$8.99

$

Usually ships in 3-6 days

0

83

Troy-Bilt 736-0264

Flat Washer, .330 x .630 x .0635

$6.99

$

In Stock, only 2 left!

0

Troy-Bilt 629-04010A

Dual Light Harness

Note: Not Shown

$

$

Not available
