4510 (31AH9777766) - Troy-Bilt Polar Blast 45" Snow Thrower (2009) Engine Assembly 490-SU Parts Diagram

Polar Blast 45" Snow Thrower

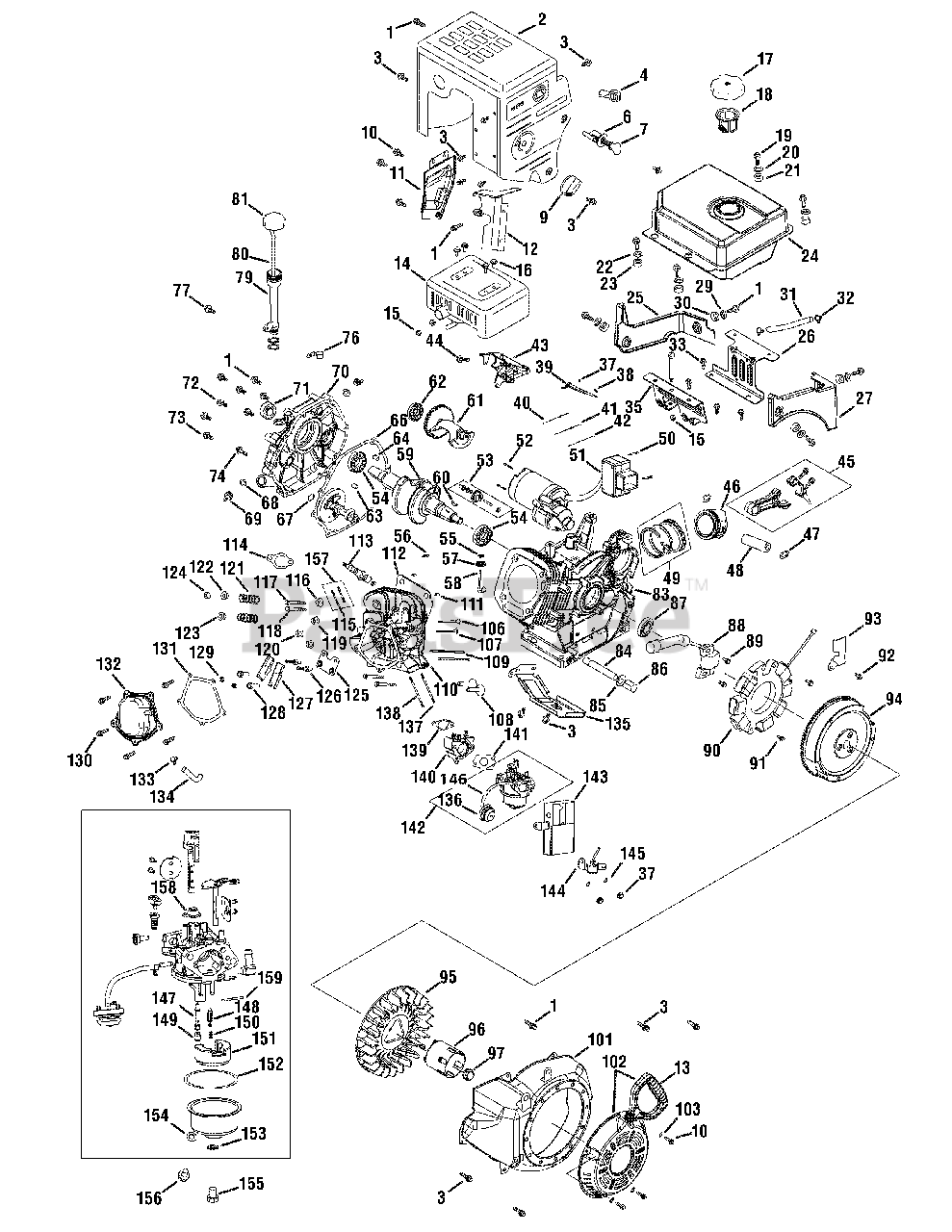

Engine Assembly 490-SU Parts Diagram

  • Title

1

Troy-Bilt 951-11012

Bolt, M6 x 16
(Superseded to 710-04968)

$6.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 951-11339

Muffler Shield

$80.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-04915

Bolt, M6 x 12, Zinc Coating

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 951-11224

Throttle Control Knob

$7.99

$

In Stock, only 3 left!

0

6

Troy-Bilt 951-10637

Ignition Switch Assembly

$14.99

$

In Stock, Qty 8

0

7

Troy-Bilt 731-05632

Key
(Superseded to 951-10630)

$6.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 951-11302

Choke Knob

$6.99

$

In Stock, Qty 8

0

10

Troy-Bilt 710-04914

Bolt, Flange, M6 x 10

$4.49

$

In Stock, only 3 left!

0

11

Troy-Bilt 951-11181

Muffler Baffle

$30.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 951-11321

Carburetor Heat Shield

$28.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 731-05696

Starter Handle

$16.99

$

In Stock, only 3 left!

0

14

Troy-Bilt 951-11338

Muffler Assembly

$139.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 712-04219

Nut, M8 x 1.25

$6.49

$

In Stock, only 2 left!

0

16

Troy-Bilt 710-05051

Bolt

$6.49

$

In Stock, only 1 left!

0

17

Troy-Bilt 951-10649

Fuel Cap
(Superseded to 951-12533)

$23.99

$

In Stock, only 2 left!

0

18

Troy-Bilt 951-10652

Fuel Filter

$9.49

$

In Stock, only 3 left!

0

19

Troy-Bilt 710-04970

Flange Bolt, M8 x 20

$6.49

$

Usually ships in 3-6 days

0

20

Troy-Bilt 736-04450

Flat Washer

$6.49

$

Usually ships in 3-6 days

0

21

Troy-Bilt 750-05312

Bushing

$4.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 736-04451

Flat Washer

$5.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 750-05313

Bushing

$3.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 951-11201

Fuel Tank

$144.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 951-11319

Fuel Tank Shroud

$22.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 951-11318

Fuel Tank Mounting Bracket

$43.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 951-11351

Engine Shroud

$23.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 736-04452

Flat Washer

$6.49

$

In Stock, only 1 left!

0

30

Troy-Bilt 750-05314

Bushing

$3.99

$

Usually ships in 3-6 days

0

31

N/A

Fuel Line

Note: Furnish 951-11336, Fuel Line Kit

$

$

Not available

32

N/A

Fuel Line Clamp

Note: Furnish 951-11336, Fuel Line Kit

$

$

Not available

33

Troy-Bilt 710-04921

Bolt, Flange, M8 x 14

$5.49

$

Usually ships in 3-6 days

0

35

Troy-Bilt 951-11182

Fuel Tank Mounting Bracket

$38.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 712-04211

Nut, Flange, M6
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 710-04908

Bolt, M6 x 21, Governor Arm

$6.49

$

Usually ships in 3-6 days

0

39

Troy-Bilt 951-11307

Governor Arm Bracket

$23.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 951-11306

Governor Spring

$4.49

$

In Stock, only 3 left!

0

41

Troy-Bilt 951-11203

Throttle Return Spring

$4.49

$

In Stock, only 2 left!

0

42

Troy-Bilt 951-11309

Governor Rod

$3.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 951-11311

Throttle Control Assembly

$47.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 710-04916

Bolt, Flange, M6 x 14

$4.49

$

In Stock, Qty 12

0

45

N/A

Connecting Rod Ass’y Complete

Note: Furnish 951-11360, Short Block Assy

$

$

Not available

46

N/A

Piston

Note: Furnish 951-11360, Short Block Assy

$

$

Not available

47

N/A

Piston Pin Clip

Note: Furnish 951-11360, Short Block Assy

$

$

Not available

48

N/A

Piston Pin

Note: Furnish 951-11360, Short Block Assy

$

$

Not available

49

N/A

Piston Ring Set - Complete

Note: Furnish 951-11360, Short Block Assy

$

$

Not available

50

Troy-Bilt 710-04965

Screw, M4 x 55

$6.99

$

In Stock, only 1 left!

0

51

Troy-Bilt 951-11196

Electric Starter

$407.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 710-04967

Flange Bolt, M8 x 55

$6.49

$

Usually ships in 3-6 days

0

53

N/A

Governor Assembly

Note: Furnish 951-11360, Short Block Assy

$

$

Not available

54

Troy-Bilt 951-11373

Bearing

$34.99

$

Usually ships in 3-6 days

0

54

N/A

Bearing

Note: Furnish 951-11340, Crankcase Cover Kit

$

$

Not available

54

N/A

Bearing

Note: Furnish 951-11358, Crankshaft Kit

$

$

Not available

54

N/A

Bearing

Note: Furnish 951-11360, Short Block Assy

$

$

Not available

54

N/A

Bearing

Note: Furnish 951-11359, Crankcase Kit

$

$

Not available

55

Troy-Bilt 736-04453

Governor Shaft Washer

$6.49

$

Usually ships in 3-6 days

0

55

Troy-Bilt 736-04453

Governor Shaft Washer

Note: Furnish 951-11360, Short Block Assy

$6.49

$

Usually ships in 3-6 days

0

56

Troy-Bilt 714-04077

Governor Shaft Clip

$6.49

$

In Stock, only 1 left!

0

56

Troy-Bilt 714-04077

Governor Shaft Clip

Note: Furnish 951-11360, Short Block Assy

$6.49

$

In Stock, only 1 left!

0

57

N/A

Oil Seal - Governor Shaft

Note: Furnish 951-11360, Short Block Assy

$

$

Not available

57

N/A

Oil Seal - Governor Shaft

Note: Furnish 951-11362, Gasket Kit Complete

$

$

Not available

57

N/A

Oil Seal - Governor Shaft

Note: Furnish 951-11359, Crankcase Kit

$

$

Not available

58

Troy-Bilt 951-11365

Governor Arm Shaft

$5.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 951-11365

Governor Arm Shaft

Note: Furnish 951-11360, Short Block Assy

$5.99

$

Usually ships in 3-6 days

0

59

N/A

Crankshaft Assembly

Note: Furnish 951-11358, Crankshaft Kit

$

$

Not available

59

N/A

Crankshaft Assembly

Note: Furnish 951-11360, Short Block Assy

$

$

Not available

60

Troy-Bilt 951-10307

Flywheel Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

60

Troy-Bilt 951-10307

Flywheel Key
(Superseded to 751P10307A)

Note: Furnish 951-11358, Crankshaft Kit

$2.49

$

In Stock, Qty 10

0

60

Troy-Bilt 951-10307

Flywheel Key
(Superseded to 751P10307A)

Note: Furnish 951-11360, Short Block Assy

$2.49

$

In Stock, Qty 10

0

61

N/A

Camshaft Assembly

Note: Furnish 951-11360, Short Block Assy

$

$

Not available

62

N/A

Bearing

Note: Furnish 951-11360, Short Block Assy

$

$

Not available

63

Troy-Bilt 715-04102

Dowel Pin

$5.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt 715-04102

Dowel Pin

Note: Furnish 951-11360, Short Block Assy

$5.99

$

Usually ships in 3-6 days

0

64

Troy-Bilt 715-04096

Dowel Pin, 7 x 14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

64

Troy-Bilt 715-04096

Dowel Pin, 7 x 14
(Superseded to 715-04096A)

Note: Furnish 951-11360, Short Block Assy

$4.49

$

Usually ships in 3-6 days

0

66

Troy-Bilt 951-11376

Crankcase Cover Gasket

$18.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 951-11376

Crankcase Cover Gasket

Note: Furnish 951-11340, Crankcase Cover Kit

$18.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 951-11376

Crankcase Cover Gasket

Note: Furnish 951-11360, Short Block Assy

$18.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 951-11376

Crankcase Cover Gasket

Note: Furnish 951-11362, Gasket Kit Complete

$18.99

$

Usually ships in 3-6 days

0

67

Troy-Bilt 736-04476

Washer

$5.99

$

Usually ships in 3-6 days

0

67

Troy-Bilt 736-04476

Washer

Note: Furnish 951-11340, Crankcase Cover Kit

$5.99

$

Usually ships in 3-6 days

0

67

Troy-Bilt 736-04476

Washer

Note: Furnish 951-11360, Short Block Assy

$5.99

$

Usually ships in 3-6 days

0

68

N/A

O-Ring

Note: Furnish 951-11345, Oil Fill Plug Assy

$

$

Not available

69

N/A

Oil Fill Plug

Note: Furnish 951-11345, Oil Fill Plug Assy

$

$

Not available

70

N/A

Crankcase Cover

Note: Furnish 951-11340, Crankcase Cover Kit

$

$

Not available

70

N/A

Crankcase Cover

Note: Furnish 951-11360, Short Block Assy

$

$

Not available

71

Troy-Bilt 951-11375

Oil Seal - PTO Side
(Superseded to 951-11375A)

$15.99

$

In Stock, Qty 20+

0

71

Troy-Bilt 951-11375

Oil Seal - PTO Side
(Superseded to 951-11375A)

Note: Furnish 951-11340, Crankcase Cover Kit

$15.99

$

In Stock, Qty 20+

0

71

Troy-Bilt 951-11375

Oil Seal - PTO Side
(Superseded to 951-11375A)

Note: Furnish 951-11358, Crankshaft Kit

$15.99

$

In Stock, Qty 20+

0

71

Troy-Bilt 951-11375

Oil Seal - PTO Side
(Superseded to 951-11375A)

Note: Furnish 951-11360, Short Block Assy

$15.99

$

In Stock, Qty 20+

0

71

Troy-Bilt 951-11375

Oil Seal - PTO Side
(Superseded to 951-11375A)

Note: Furnish 951-11362, Gasket Kit Complete

$15.99

$

In Stock, Qty 20+

0

72

Troy-Bilt 710-04971

Flange Bolt, M8 x 38
(Superseded to 710-06061)

$6.49

$

Usually ships in 3-6 days

0

72

Troy-Bilt 710-04971

Flange Bolt, M8 x 38
(Superseded to 710-06061)

Note: Furnish 951-11340, Crankcase Cover Kit

$6.49

$

Usually ships in 3-6 days

0

72

Troy-Bilt 710-04971

Flange Bolt, M8 x 38
(Superseded to 710-06061)

Note: Furnish 951-11360, Short Block Assy

$6.49

$

Usually ships in 3-6 days

0

73

Troy-Bilt 710-04972

Bolt, M8 x 45
(Superseded to 710-06062)

$5.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 710-04972

Bolt, M8 x 45
(Superseded to 710-06062)

Note: Furnish 951-11340, Crankcase Cover Kit

$5.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 710-04972

Bolt, M8 x 45
(Superseded to 710-06062)

Note: Furnish 951-11360, Short Block Assy

$5.99

$

Usually ships in 3-6 days

0

74

Troy-Bilt 710-05052

Bolt, M8 x 35
(Superseded to 710-06063)

$6.49

$

Usually ships in 3-6 days

0

74

Troy-Bilt 710-05052

Bolt, M8 x 35
(Superseded to 710-06063)

Note: Furnish 951-11340, Crankcase Cover Kit

$6.49

$

Usually ships in 3-6 days

0

74

Troy-Bilt 710-05052

Bolt, M8 x 35
(Superseded to 710-06063)

Note: Furnish 951-11360, Short Block Assy

$6.49

$

Usually ships in 3-6 days

0

76

Troy-Bilt 951-11320

Oil Tube Support Bracket

$7.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 710-04968

Flange Bolt M6 x 16

$6.99

$

In Stock, only 3 left!

0

79

Troy-Bilt 951-11206

Dipstick Tube

$18.99

$

Usually ships in 3-6 days

0

80

N/A

Dipstick

Note: Furnish 951-11205, Dipstick Assy

$

$

Not available

81

N/A

Oil Cap

Note: Furnish 951-11205, Dipstick Assy

$

$

Not available

83

N/A

Crankcase

Note: Furnish 951-11360, Short Block Assy

$

$

Not available

83

N/A

Crankcase

Note: Furnish 951-11359, Crankcase Kit

$

$

Not available

84

Troy-Bilt 951-11350

Oil Drain Pipe

$9.49

$

Usually ships in 3-6 days

0

84

Troy-Bilt 951-11350

Oil Drain Pipe

Note: Furnish 951-11360, Short Block Assy

$9.49

$

Usually ships in 3-6 days

0

84

Troy-Bilt 951-11350

Oil Drain Pipe

Note: Furnish 951-10641, Oil Drain Assy

$9.49

$

Usually ships in 3-6 days

0

85

Troy-Bilt 736-04440

Oil Drain Washer
(Superseded to 736-04440A)

$6.99

$

In Stock, only 1 left!

0

85

Troy-Bilt 736-04440

Oil Drain Washer
(Superseded to 736-04440A)

Note: Furnish 951-11360, Short Block Assy

$6.99

$

In Stock, only 1 left!

0

85

Troy-Bilt 736-04440

Oil Drain Washer
(Superseded to 736-04440A)

Note: Furnish 951-11362, Gasket Kit Complete

$6.99

$

In Stock, only 1 left!

0

85

Troy-Bilt 736-04440

Oil Drain Washer
(Superseded to 736-04440A)

Note: Furnish 951-11363, Gasket Kit External

$6.99

$

In Stock, only 1 left!

0

85

Troy-Bilt 736-04440

Oil Drain Washer
(Superseded to 736-04440A)

Note: Furnish 951-10641, Oil Drain Assy

$6.99

$

In Stock, only 1 left!

0

86

Troy-Bilt 710-04906

Oil Drain Plug

$6.99

$

In Stock, Qty 12

0

86

Troy-Bilt 710-04906

Oil Drain Plug

Note: Furnish 951-11360, Short Block Assy

$6.99

$

In Stock, Qty 12

0

86

Troy-Bilt 710-04906

Oil Drain Plug

Note: Furnish 951-10641, Oil Drain Assy

$6.99

$

In Stock, Qty 12

0

87

Troy-Bilt 951-11375

Oil Seal - Flywheel Side
(Superseded to 951-11375A)

$15.99

$

In Stock, Qty 20+

0

87

Troy-Bilt 951-11375

Oil Seal - Flywheel Side
(Superseded to 951-11375A)

Note: Furnish 951-11358, Crankshaft Kit

$15.99

$

In Stock, Qty 20+

0

87

Troy-Bilt 951-11375

Oil Seal- Flywheel Side
(Superseded to 951-11375A)

Note: Furnish 951-11360, Short Block Assy

$15.99

$

In Stock, Qty 20+

0

87

Troy-Bilt 951-11375

Oil Seal - Flywheel Side
(Superseded to 951-11375A)

Note: Furnish 951-11362, Gasket Kit Complete

$15.99

$

In Stock, Qty 20+

0

87

Troy-Bilt 951-11375

Oil Seal - Flywheel Side
(Superseded to 951-11375A)

Note: Furnish 951-11359, Crankcase Kit

$15.99

$

In Stock, Qty 20+

0

88

Troy-Bilt 951-11305

Ignition Coil
(Superseded to 951-11305A)

$77.99

$

In Stock, only 1 left!

0

89

Troy-Bilt 710-04920

Bolt, Flange, M6 x 28
(Superseded to 710-04931)

$6.99

$

Usually ships in 3-6 days

0

90

Troy-Bilt 951-11216

Stator

$

$

Not available

91

Troy-Bilt 710-04969

Flange Bolt, M6 x 30

$4.49

$

In Stock, Qty 13

0

92

Troy-Bilt 710-04966

Flange Bolt, M6 x 8

$6.49

$

Usually ships in 3-6 days

0

93

Troy-Bilt 951-11186

Alternator Wire Clamp Bracket

$4.99

$

Usually ships in 3-6 days

0

94

Troy-Bilt 951-11312

Flywheel

$235.99

$

Usually ships in 3-6 days

0

95

Troy-Bilt 951-11313

Cooling Fan
(Superseded to 951-11313A)

$50.99

$

Usually ships in 3-6 days

0

96

Troy-Bilt 951-11314

Starter Cup

$18.99

$

Usually ships in 3-6 days

0

97

Troy-Bilt 712-04220

Nut, M16 x 1.5

$6.49

$

Usually ships in 3-6 days

0

99

Troy-Bilt 710-04915

Bolt, M6 x 12

$4.49

$

In Stock, Qty 20+

0

101

Troy-Bilt 951-11211

Blower Housing

$86.99

$

Usually ships in 3-6 days

0

102

Troy-Bilt 951-11310

Recoil Starter Assembly
(Superseded to 951-14223)

$88.99

$

In Stock, Qty 13

0

103

Troy-Bilt 736-04455

Flat Washer Recoil
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

106

N/A

Exhaust Valve

Note: Furnish 951-11361, Cylinder Head Assy

$

$

Not available

106

N/A

Exhaust Valve

Note: Furnish 951-11337, Valve Kit

$

$

Not available

107

N/A

Intake Valve

Note: Furnish 951-11361, Cylinder Head Assy

$

$

Not available

107

N/A

Intake Valve

Note: Furnish 951-11337, Valve Kit

$

$

Not available

108

N/A

Valve Lifter (Tappet)

Note: Furnish 951-11360, Short Block Assy

$

$

Not available

109

N/A

Push Rod

Note: Furnish 951-11335, Push Rod Kit

$

$

Not available

110

N/A

Cylinder Head

Note: Furnish 951-11361, Cylinder Head Assy

$

$

Not available

111

Troy-Bilt 715-04097

Dowel Pin, 12 x 20

$6.49

$

Usually ships in 3-6 days

0

111

Troy-Bilt 715-04097

Dowel Pin, 12 x 20

Note: Furnish 951-11360, Short Block Assy

$6.49

$

Usually ships in 3-6 days

0

112

N/A

Cylinder Head Gasket

Note: Furnish 951-11360, Short Block Assy

$

$

Not available

112

N/A

Cylinder Head Gasket

Note: Furnish 951-11361, Cylinder Head Assy

$

$

Not available

112

N/A

Cylinder Head Gasket

Note: Furnish 951-11362, Gasket Kit Complete

$

$

Not available

113

Troy-Bilt 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

114

Troy-Bilt 951-11212

Muffler Gasket
(Superseded to 951-11212A)

$5.49

$

In Stock, only 2 left!

0

114

Troy-Bilt 951-11212

Muffler Gasket
(Superseded to 951-11212A)

Note: Furnish 951-11360, Short Block Assy

$5.49

$

In Stock, only 2 left!

0

114

Troy-Bilt 951-11212

Muffler Gasket
(Superseded to 951-11212A)

Note: Furnish 951-11361, Cylinder Head Assy

$5.49

$

In Stock, only 2 left!

0

114

Troy-Bilt 951-11212

Muffler Gasket
(Superseded to 951-11212A)

Note: Furnish 951-11362, Gasket Kit Complete

$5.49

$

In Stock, only 2 left!

0

114

Troy-Bilt 951-11212

Muffler Gasket
(Superseded to 951-11212A)

Note: Furnish 951-11363, Gasket Kit External

$5.49

$

In Stock, only 2 left!

0

115

Troy-Bilt 710-04964

Exhaust Stud

$6.49

$

In Stock, only 1 left!

0

115

Troy-Bilt 710-04964

Exhaust Stud

Note: Furnish 951-11361, Cylinder Head Assy

$6.49

$

In Stock, only 1 left!

0

115

Troy-Bilt 710-04964

Exhaust Stud

$6.49

$

In Stock, only 1 left!

0

116

Troy-Bilt 736-04478

Flex Washer

$

$

Not available

117

Troy-Bilt 710-05039

Head Bolt

$

$

Not available

117

Troy-Bilt 710-05039

Head Bolt

Note: Furnish 951-11360, Short Block Assy

$

$

Not available

117

Troy-Bilt 710-05039

Head Bolt

Note: Furnish 951-11361, Cylinder Head Assy

$

$

Not available

118

Troy-Bilt 710-05053

Bolt, M10 x 1.25 x 87

$

$

Not available

118

Troy-Bilt 710-05053

Bolt, M10 x 1.25 x 87

Note: Furnish 951-11360, Short Block Assy

$

$

Not available

118

Troy-Bilt 710-05053

Bolt, M10 x 1.25 x 87

Note: Furnish 951-11361, Cylinder Head Assy

$

$

Not available

119

N/A

Intake Valve Seal

Note: Furnish 951-11361, Cylinder Head Assy

$

$

Not available

120

N/A

Valve Spring Retainer

Note: Furnish 951-11361, Cylinder Head Assy

$

$

Not available

121

N/A

Valve Spring

Note: Furnish 951-11361, Cylinder Head Assy

$

$

Not available

122

N/A

Valve Spring Retainers - Exhaust

Note: Furnish 951-11361, Cylinder Head Assy

$

$

Not available

123

N/A

Valve Spring Retainer- Intake

Note: Furnish 951-11361, Cylinder Head Assy

$

$

Not available

124

N/A

Exhaust Valve Cap

Note: Furnish 951-11361, Cylinder Head Assy

$

$

Not available

125

N/A

Push Rod Guide

Note: Furnish 951-11361, Cylinder Head Assy

$

$

Not available

126

Troy-Bilt 710-04962

Rocker Stud Bolt

$6.49

$

In Stock, only 1 left!

0

126

Troy-Bilt 710-04962

Rocker Stud Bolt

Note: Furnish 951-11361, Cylinder Head Assy

$6.49

$

In Stock, only 1 left!

0

127

N/A

Rocker Arm

Note: Furnish 951-11361, Cylinder Head Assy

$

$

Not available

128

Troy-Bilt 751-11123

Pivot Adjusting Nut

$10.99

$

In Stock, only 4 left!

0

128

Troy-Bilt 751-11123

Pivot Adjusting Nut

Note: Furnish 951-11361, Cylinder Head Assy

$10.99

$

In Stock, only 4 left!

0

129

Troy-Bilt 751-11124

Pivot Locking Nut

$9.49

$

In Stock, only 2 left!

0

129

Troy-Bilt 751-11124

Pivot Locking Nut

Note: Furnish 951-11361, Cylinder Head Assy

$9.49

$

In Stock, only 2 left!

0

130

Troy-Bilt 710-05054

Bolt - Valve Cover, M6 x 16

$6.49

$

In Stock, only 2 left!

0

131

N/A

Valve Cover Gasket

Note: Furnish 951-11360, Short Block Assy

$

$

Not available

131

N/A

Valve Cover Gasket

Note: Furnish 951-11361, Cylinder Head Assy

$

$

Not available

131

N/A

Valve Cover Gasket

Note: Furnish 951-11362, Gasket Kit Complete

$

$

Not available

131

N/A

Valve Cover Gasket

Note: Furnish 951-11363, Gasket Kit External

$

$

Not available

131

N/A

Valve Cover Gasket

Note: Furnish 951-11333, Valve Cover Kit

$

$

Not available

132

Troy-Bilt 951-11220

Valve Cover

$35.99

$

Usually ships in 3-6 days

0

132

Troy-Bilt 951-11220

Valve Cover

Note: Furnish 951-11333, Valve Cover Kit

$35.99

$

Usually ships in 3-6 days

0

133

Troy-Bilt 726-04101

Breather Hose Clip

$4.49

$

Usually ships in 3-6 days

0

134

Troy-Bilt 951-11221

Breather Hose

$6.99

$

In Stock, only 1 left!

0

135

Troy-Bilt 951-11317

Cylinder Baffle

$27.99

$

Usually ships in 3-6 days

0

136

Troy-Bilt 951-10639

Primer
(Superseded to 951-10639A)

$15.99

$

In Stock, Qty 20+

0

137

Troy-Bilt 710-05055

Carburetor Stud, M6 x 8 x 98

$5.99

$

Usually ships in 3-6 days

0

137

Troy-Bilt 710-05055

Carburetor Stud, M6 x 8 x 98

Note: Furnish 951-11361, Cylinder Head Assy

$5.99

$

Usually ships in 3-6 days

0

138

Troy-Bilt 710-05056

Carburetor Stud, M6 x 8 x 118

$6.99

$

Usually ships in 3-6 days

0

138

Troy-Bilt 710-05056

Carburetor Stud, M6 x 8 x 118

Note: Furnish 951-11361, Cylinder Head Assy

$6.99

$

Usually ships in 3-6 days

0

139

Troy-Bilt 951-11315

Carb Insulator Gasket

$4.49

$

In Stock, only 3 left!

0

139

Troy-Bilt 951-11315

Carb Insulator Gasket

Note: Furnish 951-11360, Short Block Assy

$4.49

$

In Stock, only 3 left!

0

139

Troy-Bilt 951-11315

Carb Insulator Gasket

Note: Furnish 951-11361, Cylinder Head Assy

$4.49

$

In Stock, only 3 left!

0

139

Troy-Bilt 951-11315

Carb Insulator Gasket

Note: Furnish 951-11362, Gasket Kit Complete

$4.49

$

In Stock, only 3 left!

0

139

Troy-Bilt 951-11315

Carb Insulator Gasket

Note: Furnish 951-11363, Gasket Kit External

$4.49

$

In Stock, only 3 left!

0

140

Troy-Bilt 951-11353

Carburetor Insulator

$9.49

$

Usually ships in 3-6 days

0

140

Troy-Bilt 951-11353

Carburetor Insulator

Note: Furnish 951-11360, Short Block Assy

$9.49

$

Usually ships in 3-6 days

0

140

Troy-Bilt 951-11353

Carburetor Insulator

Note: Furnish 951-11361, Cylinder Head Assy

$9.49

$

Usually ships in 3-6 days

0

140

Troy-Bilt 951-11353

Carburetor Insulator

Note: Furnish 951-11362, Gasket Kit Complete

$9.49

$

Usually ships in 3-6 days

0

140

Troy-Bilt 951-11353

Carburetor Insulator

Note: Furnish 951-11363, Gasket Kit External

$9.49

$

Usually ships in 3-6 days

0

141

Troy-Bilt 951-11354

Carburetor Gasket

$5.49

$

In Stock, only 1 left!

0

141

Troy-Bilt 951-11354

Carburetor Gasket

Note: Furnish 951-11362, Gasket Kit Complete

$5.49

$

In Stock, only 1 left!

0

141

Troy-Bilt 951-11354

Carburetor Gasket

Note: Furnish 951-11363, Gasket Kit External

$5.49

$

In Stock, only 1 left!

0

142

Troy-Bilt 951-11352

Carburetor Assembly
(Superseded to 951-11352A)

$111.99

$

In Stock, only 1 left!

0

143

Troy-Bilt 951-11304

Heater Box

$23.99

$

Usually ships in 3-6 days

0

144

Troy-Bilt 951-11192

Choke Assembly

$9.49

$

Usually ships in 3-6 days

0

145

Troy-Bilt 736-04477

Lock Washer

$6.49

$

Usually ships in 3-6 days

0

146

Troy-Bilt 951-10324

Primer Hose

$

$

Currently unavailable

147

N/A

Main Nozzle

Note: Furnish 951-11355, Carburetor Kit Major

$

$

Not available

148

N/A

Needle Valve

Note: Furnish 951-11355, Carburetor Kit Major

$

$

Not available

149

N/A

Main Jet

Note: Furnish 951-11355, Carburetor Kit Major

$

$

Not available

150

N/A

Needle Valve Spring

Note: Furnish 951-11355, Carburetor Kit Major

$

$

Not available

151

N/A

Float

Note: Furnish 951-11355, Carburetor Kit Major

$

$

Not available

152

N/A

Bowl Gasket

Note: Furnish 951-11355, Carburetor Kit Major

$

$

Not available

153

Troy-Bilt 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

153

Troy-Bilt 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

Note: Furnish 951-11355, Carburetor Kit Major

$5.99

$

In Stock, Qty 20+

0

154

Troy-Bilt 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

154

N/A

Fuel Drain Plug Gasket

Note: Furnish 951-11355, Carburetor Kit Major

$

$

Not available

155

Troy-Bilt 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, Qty 13

0

156

Troy-Bilt 710-04903

Fuel Drain Plug
(Superseded to 710-04938)

$4.49

$

In Stock, Qty 10

0

157

Troy-Bilt 751-11207

Exhaust Stud Assembly
(Superseded to 951-11207)

Note: (Incl. Ref No. 115)

$8.49

$

Usually ships in 3-6 days

0

158

N/A

Throttle Pressure Plate

Note: Furnish 951-11355, Carburetor Kit Major

$

$

Not available

159

N/A

Float Pin

Note: Furnish 951-11355, Carburetor Kit Major

$

$

Not available

Troy-Bilt 951-10641

Oil Drain Assembly

Note: Not Shown (Incl. Ref No. 84-86)

$12.99

$

In Stock, only 2 left!

0

Troy-Bilt 951-10651

Fuel Tank Nipple

Note: Not Shown

$15.99

$

In Stock, Qty 16

0

Troy-Bilt 951-11205

Dipstick Assembly

Note: Not Shown (Incl. Ref No. 80 & 81)

$26.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-11333

Valve Cover Kit

Note: Not Shown (Incl. Ref No. 131 & 132)

$40.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-11335

Push Rod Kit

Note: Not Shown (Incl. Ref No. 109)

$24.99

$

In Stock, Qty 9

0

Troy-Bilt 951-11336

Fuel Line Kit

Note: Not Shown (Incl. Ref No. 31 & 32)

$33.99

$

In Stock, only 1 left!

0

Troy-Bilt 951-11337

Valve Kit

Note: Not Shown (Incl. Ref No. 106 & 107)

$50.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-11340

Crankcase Cover Kit
(Superseded to 951-11340A)

Note: Not Shown (Incl. Ref No. 54, 66, 67, 70-74)

$75.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-11345

Oil Filler Plug Assembly

Note: Not Shown (Incl. Ref No. 68 & 69)

$10.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-11355

Carburetor Repair Kit - Major
(Superseded to 951-14231)

Note: Not Shown (Incl. Ref No. 147-154, 158 & 159)

$58.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-11358

Crankshaft Kit

Note: Not Shown (Incl. Ref No. 54, 59, 60, 71 & 87)

$233.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-11359

Crankcase Kit
(Superseded to 951-11359A)

Note: Not Shown (Incl. Ref No. 54, 57, 83 & 87)

$396.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-11360

Shortblock Assembly

Note: Not Shown (Incl. Ref No. 45-49, 53-64, 66, 67,, 70-74, 83-87, 108, 111, 112, 114, 117, 118, 131, 139 & 140)

$

$

Not available

Troy-Bilt 951-11361

Cylinder Head Assembly

Note: Not Shown (Incl. Ref No. 106, 107, 110, 112, 114, 115, 117-129, 131, 137-140)

$322.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-11362

Gasket Kit - Complete

Note: Not Shown (Incl. Ref No. 57, 66, 71, 85, 87, 112, 114, 131, 139-141)

$63.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-11363

Gasket Kit - External

Note: Not Shown (Incl. Ref No. 85, 114, 131, 139-141)

$34.99

$

Usually ships in 3-6 days

0

Troy-Bilt 952Z490-SU

Engine Complete
(Superseded to 952Z690-WUA)

Note: Not Shown

$

$

Not available
