4510 (31AH9777766) - Troy-Bilt Polar Blast 45" Snow Thrower (2009) Auger Housing, and Gearbox Parts Diagram

Polar Blast 45" Snow Thrower

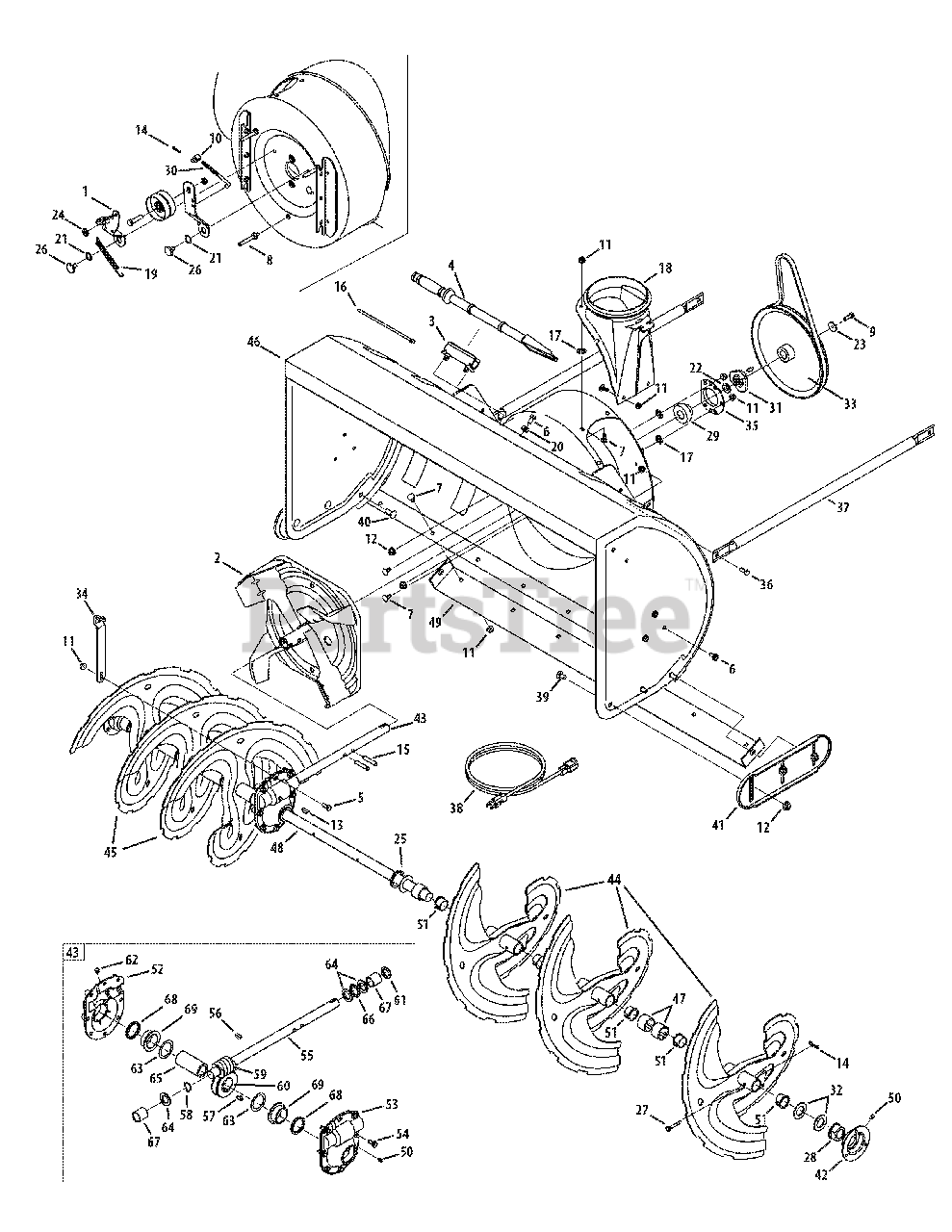

Auger Housing, and Gearbox Parts Diagram

  • Title
1

Troy-Bilt 918-0281A

Bracket Assembly, Auger Brake

$64.99

$

In Stock, only 4 left!

0

2

Troy-Bilt 684-0090B-0637

Impeller , 16"

$425.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 731-2635

Clip, Mounting
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 7

0

4

Troy-Bilt 731-2643

Tool, Clean-out
(Superseded to 931-2643)

$19.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 710-0376

Screw, Hex Cap, 5/16-18 x 1.0 Gr5

$3.99

$

In Stock, only 4 left!

0

6

Troy-Bilt 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0451

Screw, Carriage, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-04606A

Screw w/Stud, 5/16-18 x .4300

$7.49

$

In Stock, only 1 left!

0

9

Troy-Bilt 710-1245B

Screw, Hex Cap Lock, 5/16-24, 875

$8.49

$

In Stock, only 2 left!

0

10

$17.99

$

In Stock, only 4 left!

0

11

Troy-Bilt 712-04063

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-04065

Nut, Hex Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 914-0135

Key, Woodruff, 1/4 x 3/4
(Superseded to 714-0135)

$

$

Not available

14

Troy-Bilt 714-04040

Pin, Bow-tie Cotter

$1.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 915-0118

Pin, Spiral, 5/16 x 1.75
(Superseded to 715-0118)

$

$

Not available

16

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

17

Troy-Bilt 926-04012

Nut, Push
(Superseded to 726-04012)

$

$

Not available

18

Troy-Bilt 731-1696B

Adapter, Chute, 6"

$91.99

$

In Stock, only 4 left!

0

19

Troy-Bilt 732-0858

Spring, Extension

$24.99

$

In Stock, Qty 6

0

20

Troy-Bilt 936-0159

Washer, Flat, .349 x .879 .063
(Superseded to 736-0159)

$

$

Not available

21

Troy-Bilt 736-0174

Washer, Wave, .625 x .885 x .015

$6.99

$

In Stock, only 2 left!

0

22

Troy-Bilt 736-0188

Washer, Bell., .78 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 736-0505

Washer, Flat, .34 x 1.5 x .15 Ht.

$6.49

$

In Stock, only 2 left!

0

24

Troy-Bilt 936-3008

Washer, .344 x .75 x .12

$6.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 736-3046A

Washer, 1.01 x 1.86 x .06

$8.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 938-0281

Screw, Shoulder, .625 x .17
(Superseded to 738-0281)

$

$

Not available

27

Troy-Bilt 738-04155

Pin, Shear, .25 x 1.75

$1.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 741-0192

Bearing, Flange w/Flats
(Superseded to 941-0170)

$19.99

$

In Stock, only 4 left!

0

29

Troy-Bilt 941-04024

Bearing, Self Aligning

$64.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 747-0980A

Rod, Auger Idler

$47.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 748-04067A

Adapter, Pulley w/Pins

$26.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 950-04020

Spacer, 1.004 x 1.375 x .25

$12.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 756-04244A

Pulley, Auger Drive, 10.0

$60.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 790-00264A-0637

Bracket, Gear Box Support

$19.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 05244B

Housing, Bearing

$23.99

$

In Stock, only 2 left!

0

36

Troy-Bilt 710-3008

Screw, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 749-04384-0637

Tube, Support

$21.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 929-0071

Extension Cord, 110V
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0

39

Troy-Bilt 710-0389

Screw, Carriage, 3/8-16 x .75

$4.49

$

In Stock, Qty 10

0

40

Troy-Bilt 710-3168

Screw, Carriage, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 784-5697-0638

Skid Shoe
(Superseded to 784-5697-0637)

$44.99

$

In Stock, only 2 left!

0

42

Troy-Bilt 784-0315A-0637

Housing, Bearing

$

$

Not available

43

Troy-Bilt 918-04514

Gear Box Assembly

$543.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 684-04151-0638

Spiral Assembly, LH
(Superseded to 684-04151-0637)

$261.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 684-04151-0638

Spiral Assembly, RH
(Superseded to 684-04151-0637)

$261.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 684-04223-0638

Housing, Auger - 45"

$976.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 731-05163

Spacer, 1.50 x 1.00 x 1.00

$7.49

$

In Stock, Qty 20+

0

48

Troy-Bilt 738-04159

Axle, Spiral

$229.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 790-00280-0638

Shave Plate, 45"
(Superseded to 790-00280-0637)

$60.99

$

In Stock, Qty 6

0

50

Troy-Bilt 937-3000

Grease Fitting, 3/16

$4.99

$

In Stock, Qty 20+

0

51

Troy-Bilt 741-0494

Flange Bushing

$3.99

$

In Stock, only 2 left!

0

52

Troy-Bilt 918-0246

Housing Assembly, Auger, RH

$

$

Not available

53

Troy-Bilt 918-0435

Housing Assembly, Auger, LH

$109.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 710-1260A

Screw, LD, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 711-04714

Auger Drive Shaft

$66.99

$

Usually ships in 3-6 days

0

56

Troy-Bilt 914-0126

Key, Hi Pro, 3/16 x 3/4
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 18

0

57

Troy-Bilt 914-0135

Key, 1/4 x 3/4 Dia.
(Superseded to 714-0135)

$

$

Not available

58

Troy-Bilt 716-0111

External Retainer Ring

$6.99

$

In Stock, Qty 8

0

59

Troy-Bilt 917-0299

Gear, Worm

$124.99

$

In Stock, only 2 left!

0

60

Troy-Bilt 917-1425

Gear, Worm, LH

$177.99

$

In Stock, only 2 left!

0

61

Troy-Bilt 921-0145

Seal, Oil

$9.99

$

In Stock, only 1 left!

0

$4.49

$

In Stock, only 4 left!

0

63

Troy-Bilt 936-0266

Wash, Flat, 1.52ID x 2.0 OD
(Superseded to 736-0266)

$

$

Not available

64

Troy-Bilt 936-0291

Wash, Flat, .88 ID x .38 OD
(Superseded to 736-0291)

$11.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 738-0275

Worm Gear Shaft

$112.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 741-0184

Bearing, Thrust

$16.99

$

In Stock, only 3 left!

0

67

$17.99

$

In Stock, Qty 10

0

68

$12.99

$

In Stock, only 3 left!

0

69

Troy-Bilt 741-0670

Flange Bearing

$13.99

$

Usually ships in 3-6 days

0
