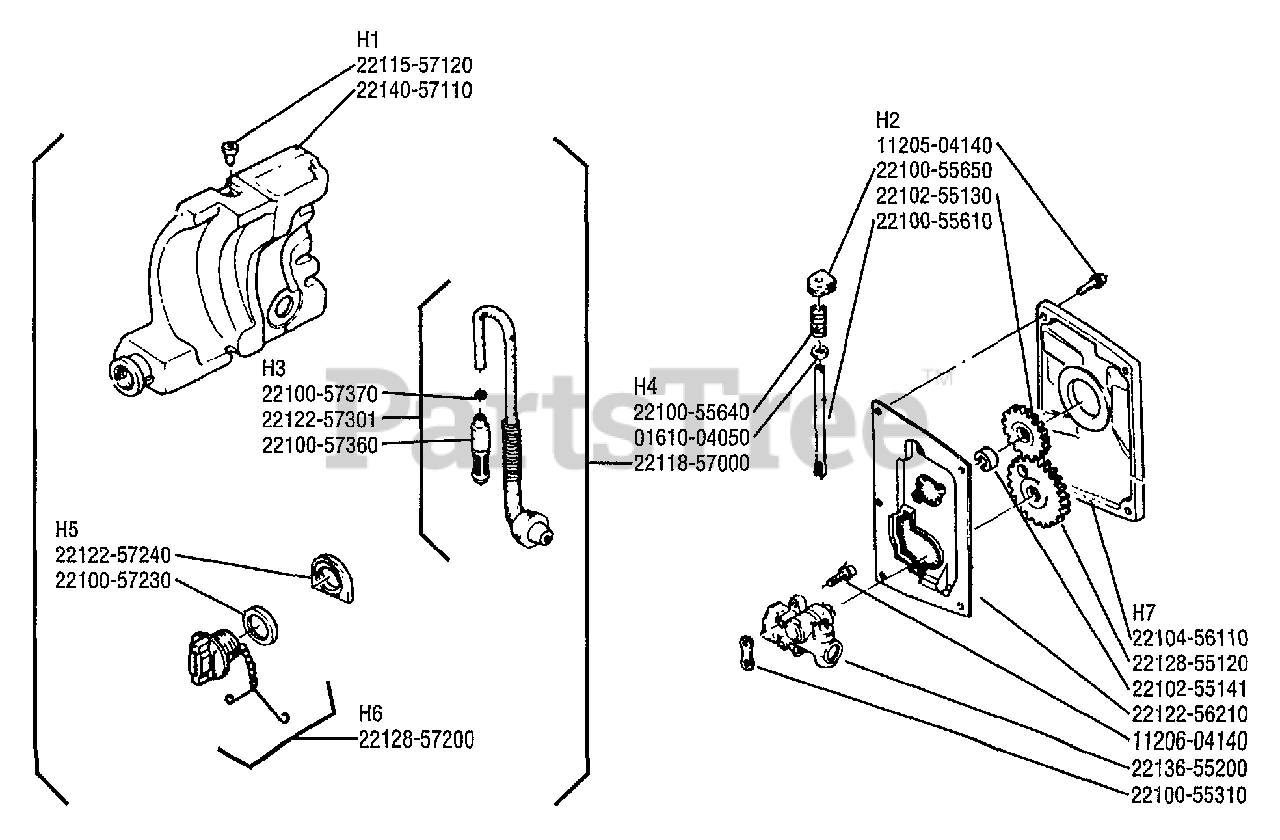

451 - Shindaiwa Chainsaw Crankcase Parts Diagram

Chainsaw

Crankcase Parts Diagram

  • Title
H4-22100-55640

$

$

Not available

H4-01610-04050

Echo 01610-04050

WASHER
(Superseded to 90060000004)

$0.99

$

In Stock, Qty 12

0

H4-22118-57000

Echo 22118-57000

TANK ASSY, OIL
(Superseded to Discontinued)

$

$

Not available

H1-22115-57120

Echo 22115-57120

VALVE, OIL
(Superseded to A356000130)

$4.49

$

Usually ships in 2-4 days

0

H1-22140-57110

$

$

Currently unavailable

H3-22100-57370

Echo 22100-57370

CLIP, OIL FILTER
(Superseded to V490000740)

$0.99

$

Usually ships in 2-4 days

0

H3-22122-57301

Echo 22122-57301

TUBE ASSY, OIL
(Superseded to C021000010)

$14.99

$

Usually ships in 2-4 days

0

H3-22100-57360

Echo 22100-57360

OIL FILTER

$

$

Currently unavailable

H5-22122-57240

Echo 22122-57240

SUPPORT, OIL TANK

$2.99

$

Usually ships in 2-4 days

0

H5-22100-57230

Echo 22100-57230

GASKET, OIL CAP
(Superseded to V106000070)

$1.99

$

In Stock, only 2 left!

0

H6-22128-57200

Echo 22128-57200

OIL CAP ASSY
(Superseded to Discontinued)

$

$

Not available

H7-22104-56110

Echo 22104-56110

COVER, PUMP
(Superseded to C236000030)

$4.49

$

Usually ships in 2-4 days

0

H7-22128-55120

Echo 22128-55120

GEAR
(Superseded to 22100-55121)

$8.49

$

In Stock, only 1 left!

0

H7-22102-55141

$7.99

$

Usually ships in 2-4 days

0

H7-22122-56210

Echo 22122-56210

COVER, DUST

$33.99

$

Usually ships in 2-4 days

0

H7-11206-04140

Echo 11206-04140

SCREW
(Superseded to 9157404014)

$0.99

$

Usually ships in 2-4 days

0

H7-22136-55200

Echo 22136-55200

PUMP ASSY, OIL
(Superseded to C022000100)

$88.99

$

Usually ships in 2-4 days

0

H7-22100-55310

Echo 22100-55310

GASKET, OIL PUMP
(Superseded to V111000060)

$0.99

$

Usually ships in 2-4 days

0

H2-11205-04140

Echo 11205-04140

SCREW
(Superseded to 9157304014)

$0.99

$

Usually ships in 2-4 days

0

H2-22100-55650

Echo 22100-55650

GROMMET, OIL PUMP

$0.99

$

Usually ships in 2-4 days

0

H2-22102-55130

Echo 22102-55130

PINION
(Superseded to V060000100)

$8.49

$

In Stock, only 1 left!

0

H2-22100-55610

Echo 22100-55610

SHAFT OIL PUMP

$3.49

$

Usually ships in 2-4 days

0
