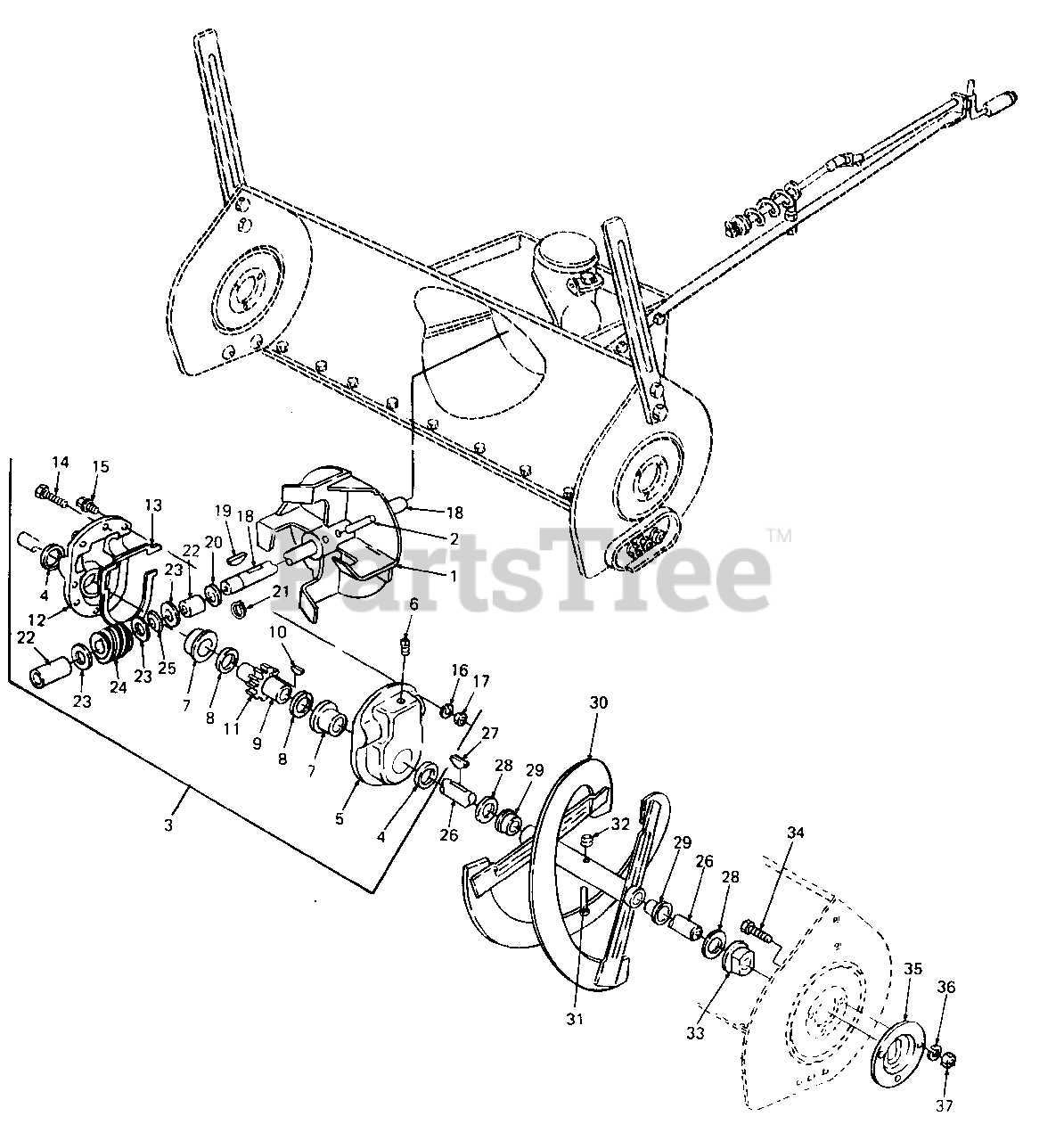

451 (190-451-100) - Cub Cadet 45" Snow Thrower Attachment Gear Box And Spiral Assembly Parts Diagram

45" Snow Thrower Attachment

Gear Box And Spiral Assembly Parts Diagram

  • Title

1

Cub Cadet 784-5145

Fan Assy, Blower
(Superseded to 784-5145-0637)

Variations

Cub Cadet 784-5145-0637

Blower Fan Assembly, Black - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 715-0118

Pin, Spiral Spring, 5/16 Dia X 1.75 Lg

$12.99

$

In Stock, Qty 7

0

3

Cub Cadet 717-0871A

Gear Box Assy
(Superseded to 917-0871A)

Note: (Includes Ref No 4 thru 25)

$615.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 721-0146

Seal, Oil
(Superseded to 921-0146)

$12.99

$

In Stock, only 3 left!

0

5

Cub Cadet 717-0297

Housing, Gear - LH
(Superseded to 753-0889)

Note: (Includes Ref No. 4 & 7)

$

$

Not available

6

Cub Cadet 737-0175

Plug, Vented Plastic

$6.99

$

In Stock, only 4 left!

0

7

Cub Cadet 741-0182

Bearing, Flange

$

$

Not available

8

Cub Cadet 736-0266

Washer, Flat, 1.50 X 2.25 X .030 Thk
(Superseded to 936-0266)

$

$

Not available

9

Cub Cadet 738-0275

Shaft, Worm Gear

$112.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 714-0135

Key, Woodruff, 1/4 X 3/4 HDN

$4.99

$

In Stock, only 2 left!

0

11

Cub Cadet 717-1425

Gear, Worm
(Superseded to 917-1425)

$177.99

$

In Stock, only 2 left!

0

12

Cub Cadet 717-0298

Housing, Gear - RH
(Superseded to 753-0889)

Note: (Includes Ref No.4 & 7)

$

$

Not available

13

Cub Cadet 721-0144

Gasket
(Superseded to 921-0144)

$11.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0528

Screw, Hex Cap, 5/16-18 X 1.25 Lg GR5

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0376

Screw, Hex Cap, 5/16-18 X 1.0 Lg GR5

$3.99

$

In Stock, only 4 left!

0

16

Cub Cadet 736-0271

Washer, Shake Proof, .32 X .62 X .020 Thk
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

17

Cub Cadet 712-0429

Nut, Hex Insert Lock, 5/16-18

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 738-0679

Shaft, Blower Axle

$

$

Not available

19

Cub Cadet 714-0126

Key, Hi-Pro, 3/16 X 3/4 HDN

$4.99

$

In Stock, Qty 19

0

20

Cub Cadet 721-0145

Seal, Oil
(Superseded to 921-0145)

$9.99

$

In Stock, only 1 left!

0

21

Cub Cadet 716-0111

Ring, Snap

$6.99

$

In Stock, Qty 8

0

22

Cub Cadet 741-0217

Sleeve
(Superseded to 941-0217)

$17.99

$

In Stock, Qty 10

0

23

Cub Cadet 736-0291

Washer, Flat, .88 X 1.4 X .155 Thk

$11.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 717-0299

Gear, Worm
(Superseded to 917-0299)

$124.99

$

In Stock, only 2 left!

0

25

Cub Cadet 741-0184

Bearing, Thrust

$16.99

$

In Stock, only 3 left!

0

26

Cub Cadet 738-0492

Shaft, Spiral Axle

$205.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 714-0135

Key, Woodruff, 1/4 X 3/4 HDN

$4.99

$

In Stock, only 2 left!

0

28

Cub Cadet 736-0250

Washer, Flat, 1.0 X 1.75 X .100 Thk

$4.49

$

In Stock, only 2 left!

0

29

Cub Cadet 741-0494

Bushing, Plastic

$3.99

$

In Stock, only 2 left!

0

30

Cub Cadet 05609

Spiral Assy, LH
(Superseded to 684-04197)

Variations

Cub Cadet 05609-0637

USE 684-04197 SPIRAL ASM-LH 4 - POWDER BLACK (0637)

$235.99

$

Usually ships in 3-6 days

0

$235.99

$

Usually ships in 3-6 days

0

Cub Cadet 05608

Spiral Assy, RH
(Superseded to 684-04196)

Note: (Not Shown)

Variations

Cub Cadet 05608-0637

USE 684-04196 SPIRAL ASM-RH 4 - POWDER BLACK (0637)

$235.99

$

Usually ships in 3-6 days

0

$235.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 710-0891

Bolt, Shear, 5/16-18 X 1.75 Lg

$7.49

$

In Stock, Qty 20+

0

32

Cub Cadet 712-0429

Nut, Hex Insert Lock, 5/16-18

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 741-0244

Bearing, Flange
(Superseded to 941-0170)

$19.99

$

In Stock, only 4 left!

0

34

Cub Cadet 710-0198

Bolt, Hex Sems, 5/16-18 X .75 Lg
(Superseded to 910-0198)

$

$

Not available

35

Cub Cadet 05845

Housing, Bearing
(Superseded to 05845C-0637)

$23.99

$

In Stock, only 2 left!

0

36

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

37

Cub Cadet 712-0267

Nut, Hex, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 737-0168

Grease, Gear Box
(Superseded to 737-0168A)

$30.99

$

In Stock, only 1 left!

0

$

$

Not available

$

$

Not available
