451 (190-451-100) - Cub Cadet 45" Snow Thrower Attachment Chute Parts Diagram

45" Snow Thrower Attachment

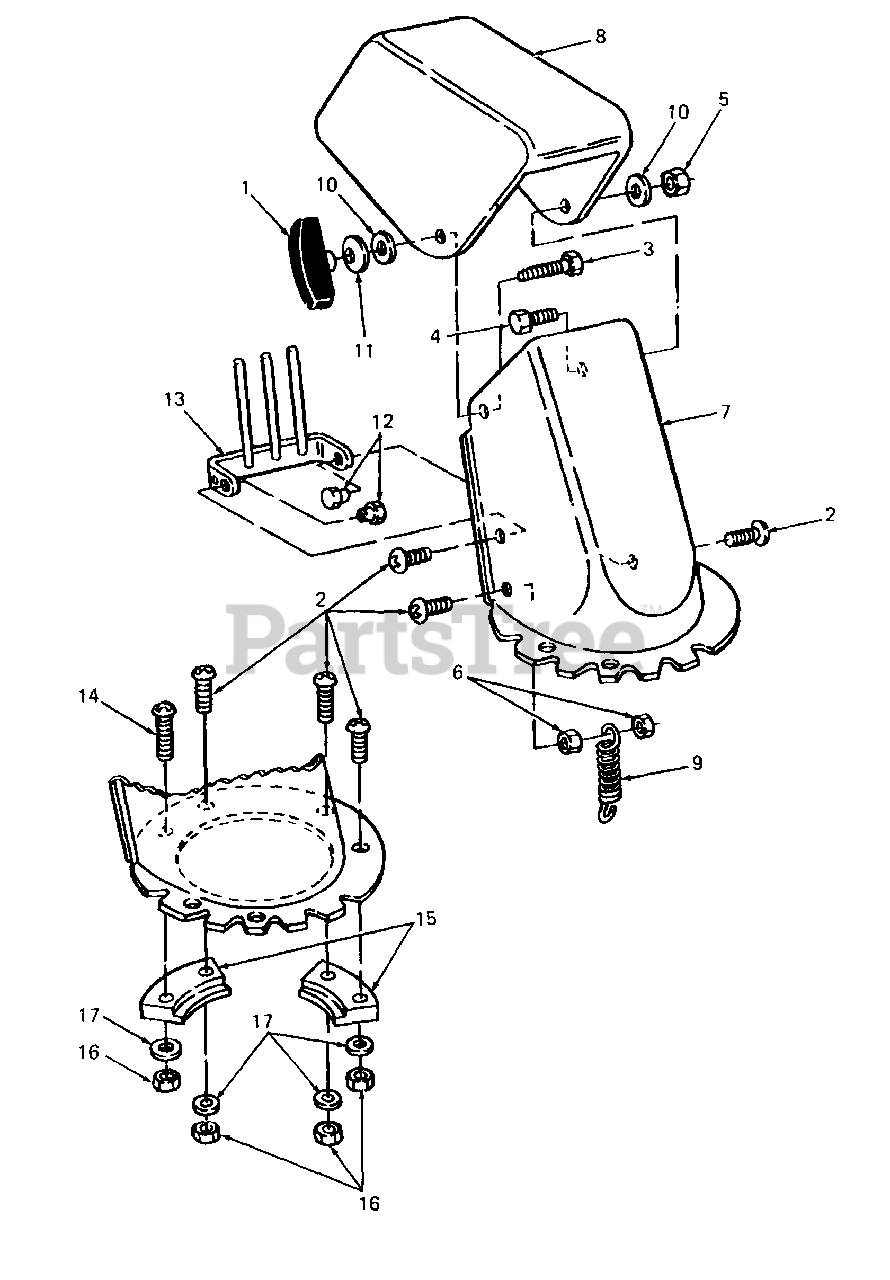

Chute Parts Diagram

  • Title

1

Cub Cadet 09966

Knob, Handle
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0255

Screw, Truss Mach, 1/4-20 X .75 Lg
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0276

Bolt, Carriage, 5/16-18 X 1.0 Lg

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0323

Screw, Truss Mach, 5/16-18 X .75 Lg

$4.99

$

In Stock, only 2 left!

0

5

Cub Cadet 712-0158

Nut, Hex Center Lock, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

6

Cub Cadet 712-0291

Nut, Hex Center Lock, 1/4-20

$4.49

$

In Stock, Qty 8

0

7

Cub Cadet 731-0843B

Chute, Lower, 6" Dia
(Superseded to 931-0843B)

$

$

Not available

8

Cub Cadet 731-0846B

Chute, Upper, 6" Dia
(Superseded to 731-0846C)

$52.99

$

In Stock, only 3 left!

0

Cub Cadet 777-5784

Label, Cut Finger

$

$

Not available

9

Cub Cadet 732-0264

Spring, Extension, .36 OD X 2.5 Lg
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0231

Washer, Flat, .344 X 1.125 X .125 Thk

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0242

Washer, Bell, .345 X .88 X .060 Thk

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 738-0561

Nut, Shoulder, 1/4-20
(Superseded to 938-0561)

$9.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 784-5192

Guard, Chute
(Superseded to 784-5192-0637)

Variations

Cub Cadet 784-5192-0637

GUARD ASSY-CHUTE - POWDER BLACK (0637)

$99.99

$

Usually ships in 3-6 days

0

$99.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0166

Screw, Truss Mach, 1/4-20 X 1.0 Lg
(Superseded to 710-0166A)

Note: (Note: Apply Loctite 242 to Screw)

$7.49

$

In Stock, only 1 left!

0

15

Cub Cadet 731-0851

Keeper, Chute Flange
(Superseded to 731-0851A)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0107

Nut, Hex Patch Lock, 1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

17

Cub Cadet 736-0142

Washer, Flat, .281 X .50 X .063 Thk

$4.99

$

In Stock, Qty 20+

0
