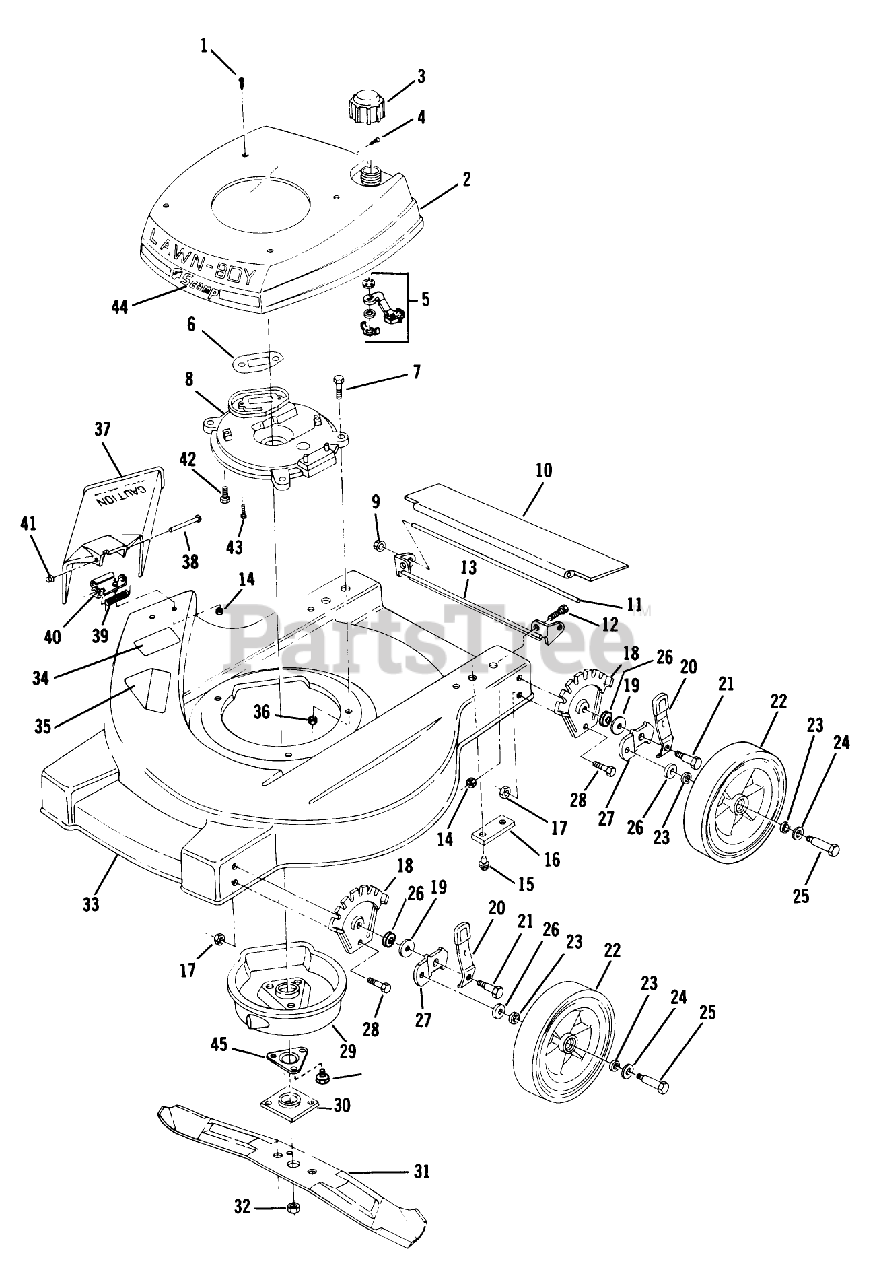

4505 A - Lawn-Boy Walk-Behind Mower (SN: C00000001 - C99999999) (1984) Housing And Shroud Group Model: 4505a Parts Diagram

Walk-Behind Mower

Housing And Shroud Group Model: 4505a Parts Diagram

  • Title

1

Lawn-Boy 611381

SCREW LAWRENCE

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 3 left!

0

2

Lawn-Boy 682804

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 682755

FUEL CAP & INSERT

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$25.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 608997

SCREW S

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 2 left!

0

5

Lawn-Boy 683034

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 610367

See Supercession: 613755
(Superseded to 613755)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 611774

SCREW-HH

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

8

Lawn-Boy 609989

PLATE,MUFFLER F

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$161.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 609975

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 610025

TRAILING SHIELD

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$99.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 610026

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 610027

BRACKET (12)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 607188

SCREW

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 3 left!

0

16

Lawn-Boy 611309

See Supercession: 612337
(Superseded to 612337)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 603773

LOCKNUT

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 1 left!

0

18

Lawn-Boy 145122

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 608834

WASHER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$14.99

$

In Stock, only 2 left!

0

20

Lawn-Boy 681903

KNOB & SPRING

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 610646

BOLT

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

22

Lawn-Boy 682974

See Supercession: 131-4520
(Superseded to 131-4520)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$37.99

$

In Stock, only 1 left!

0

23

Lawn-Boy 605255

WASHER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 605256

SPACER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 603441

BOLT WHEEL

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 603620

WASHER WROUGHT

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 608833

See Supercession: 608833-03
(Superseded to 608833-03)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$27.99

$

In Stock, only 2 left!

0

28

Lawn-Boy 610039

See Supercession: 323-4
(Superseded to 323-4)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 3 left!

0

29

Lawn-Boy 682873

See Supercession: 682873-03
(Superseded to 682873-03)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 677525

PLATE AND COLLAR ASM

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$51.99

$

In Stock, only 1 left!

0

31

Lawn-Boy 682911

DISCONTINUED
(Superseded to 612542-03)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$5.99

$

In Stock, only 1 left!

0

33

Lawn-Boy 682792

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 610054

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$6.99

$

In Stock, Qty 6

0

36

Lawn-Boy 608311

NUT-LOCK F

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

37

Lawn-Boy 681880

CHUTE DEFLECTOR AY

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$296.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 610016

PIN

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$55.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 610015

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 681879

HINGE & SCREW ATA

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 610017

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 609994

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 607601

SCREW V

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

44

Lawn-Boy 611144

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 609980

SUPPORT F

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 609471

SCREW

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 14

0
