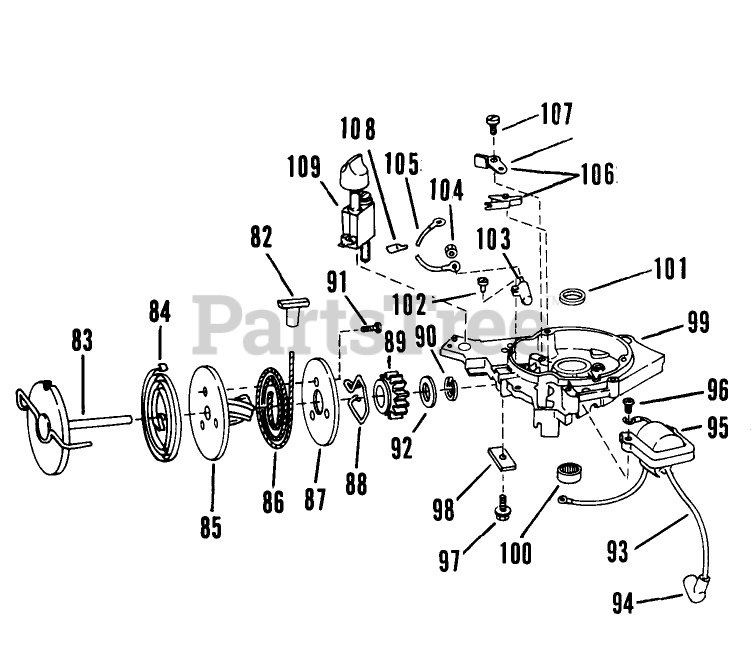

4501 - Lawn-Boy Walk-Behind Mower (SN: 000000001 - 099999999) (1980) Magneto Starter - Engine Group - D411 Utility Models: 4501, 8601 Parts Diagram

Walk-Behind Mower

Magneto Starter - Engine Group - D411 Utility Models: 4501, 8601 Parts Diagram

  • Title
82

Lawn-Boy 610546

DISCONTINUED

$

$

Not available

Lawn-Boy 682028

STARTER AY

$309.99

$

In Stock, only 1 left!

0

83

Lawn-Boy 682083

DISCONTINUED

$

$

Not available

84

Lawn-Boy 604257

SPRING S

$40.99

$

Usually ships in 3-6 days

0

85

Lawn-Boy 610032

PULLEY STARTER S

$20.99

$

Usually ships in 3-6 days

0

86

Lawn-Boy 607874

DISCONTINUED

$

$

Not available

87

Lawn-Boy 610028

DISCONTINUED

$

$

Not available

88

Lawn-Boy 604260

STARTER SPRING S

$14.99

$

In Stock, only 1 left!

0

89

Lawn-Boy 607547

STARTER PINION S

$

$

Not available

90

Lawn-Boy 609004

DISCONTINUED

$

$

Not available

91

Lawn-Boy 609003

SCREW S

$

$

Not available

92

Lawn-Boy 609005

WASHER S

$

$

Not available

93

Lawn-Boy 678117

LEAD AY. S

$20.99

$

In Stock, only 3 left!

0

94

Lawn-Boy 580339

See Supercession: 684698
(Superseded to 684698)

$7.49

$

Usually ships in 3-6 days

0

95

Lawn-Boy 678539

DISCONTINUED

$

$

Not available

96

Lawn-Boy 607526

See Supercession: 32105-12
(Superseded to 32105-12)

$2.99

$

In Stock, only 2 left!

0

97

Lawn-Boy 604857

SCREW S

$7.49

$

Usually ships in 3-6 days

0

98

Lawn-Boy 604261

DISCONTINUED

$

$

Not available

99

Lawn-Boy 681316

DISCONTINUED

$

$

Not available

100

Lawn-Boy 679277

BEARING AY. S

$

$

Not available

101

Lawn-Boy 605020

See Supercession: 611396
(Superseded to 611396)

$6.99

$

In Stock, only 2 left!

0

102

$

$

Currently unavailable

103

Lawn-Boy 677299

DISCONTINUED

$

$

Not available

104

$3.49

$

Usually ships in 3-6 days

0

105

Lawn-Boy 681211

TERMINAL & LEAD

$

$

Not available

106

Lawn-Boy 677254

BREAKER AY. S

$54.99

$

Usually ships in 3-6 days

0

107

Lawn-Boy 303212

DISCONTINUED

$

$

Not available

108

Lawn-Boy 607145

DISCONTINUED

$

$

Not available

109

Lawn-Boy 682239

SHORTING SWITCH

$60.99

$

Usually ships in 3-6 days

0
