4500 - Weed Eater String Trimmer EDGER & DRIVE SHAFT ASSEMBLIES Parts Diagram

String Trimmer

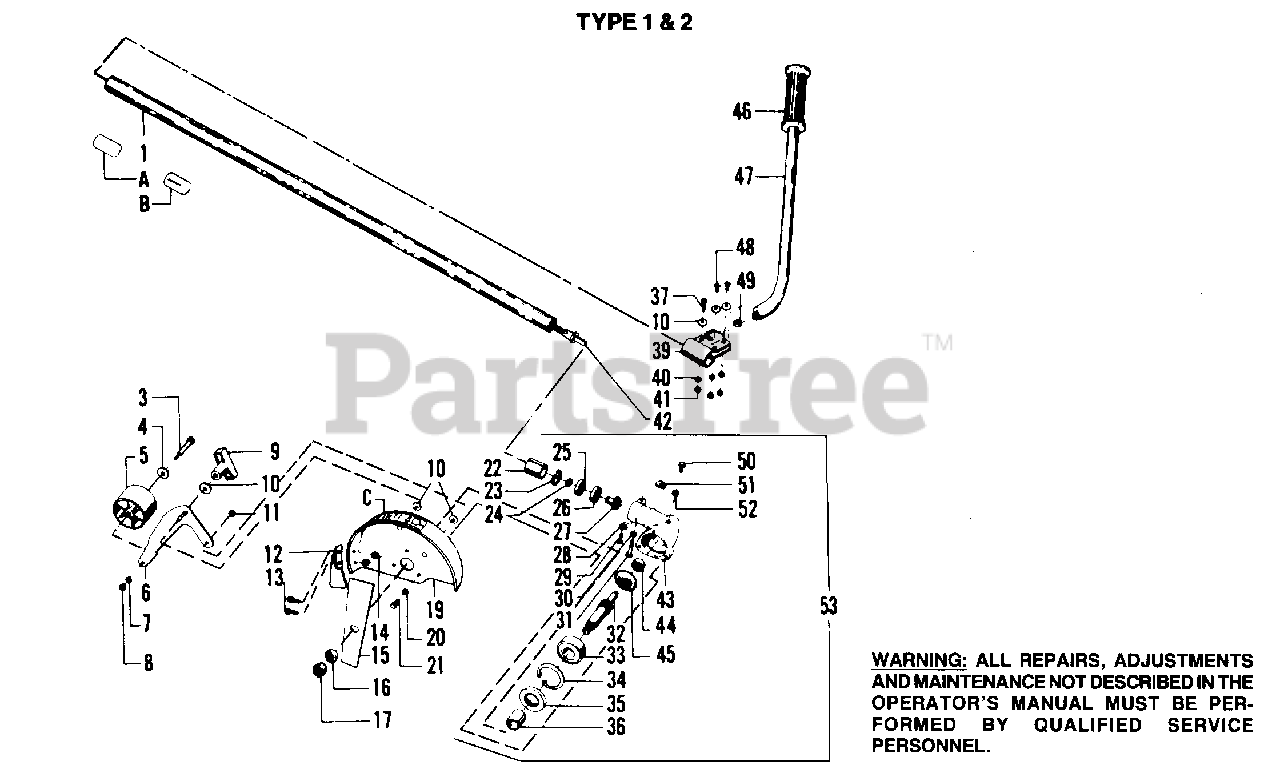

EDGER & DRIVE SHAFT ASSEMBLIES Parts Diagram

  • Title

1

Poulan 530093797

Drive Shaft Housing Assembly

$

$

Not available

3

Poulan 530092327

Shoulder Bolt - Wheel - #5/16 - 18 x 5/64"

$

$

Not available

4

Poulan 530001576

Washer - Wheel

$1.49

$

Usually ships in 3-10 days

0

5

Poulan 530092324

Wheel - Depth Adjusting

$

$

Not available

6

Poulan 530092348

Bracket - Wheel

$8.99

$

Usually ships in 3-10 days

0

7

Poulan 530001717

Lockwasher - Wheel to Bracket

$3.99

$

In Stock, only 1 left!

0

8

Poulan 530015303

Nut - Bracket to Guard - #5/16 - 18"- Hex

$

$

Not available

9

Poulan 530092059

Knob - Wheel

$9.99

$

Usually ships in 3-10 days

0

10

Poulan 530015149

Washer - #1/4 - Flat

$4.99

$

In Stock, only 3 left!

0

11

Poulan 530015515

Locknut - Bracket to Guard - #1/4 - 20"

$4.99

$

In Stock, only 1 left!

0

12

Poulan 530093174

Edge Guide

$

$

Not available

13

Poulan 530015216

Screw - Edge Guide - #10 - 24 x 7/16"

$

$

Not available

14

Poulan 530015653

Nut - Edge Guide - #10 - 24" - Locknut
(Superseded to 534235901)

$3.99

$

Usually ships in 3-10 days

0

15

Poulan 530092343

Blade

$

$

Not available

16

Poulan 530093819

Lockwasher - Blade Mounting

$2.49

$

Usually ships in 3-10 days

0

17

Poulan 530093818

Nut - #7/16 - 14" - Blade Mounting

$3.49

$

Usually ships in 3-10 days

0

19

Poulan 530010725

Guard Assembly

$

$

Not available

20

Poulan 530092227

Lockwasher - Guard to Gear Housing

$1.49

$

Usually ships in 3-10 days

0

21

Poulan 530015426

Screw - Guard to Gear Housing - #1/4 - 20 x 1/2"

$2.49

$

Usually ships in 3-10 days

0

22

Poulan 530092339

Sleeve - Drive Shaft Tube

$

$

Not available

23

Poulan 530091574

Retaining Ring

$

$

Not available

24

Poulan 530092326

Retaining Ring - Pinion

$

$

Not available

25

Poulan 530091575

Bearing - Sealed

$

$

Not available

26

Poulan 530092329

Bearing - Open

$

$

Not available

27

Poulan 530092325

Gear - Pinion

$

$

Not available

28

Poulan 530091615

Lockwasher - Index Screw

$

$

Not available

29

Poulan 530092354

Screw - Index - #10 - 24 x 1/2"

$

$

Not available

30

Poulan 530092278

Lockwasher - Pinch Clamp

$

$

Not available

31

Poulan 530092353

Screw - Pinch Clamp - #1/4 - 20 x 1-3/16"

$

$

Not available

32

Poulan 530092333

Shaft - Output

$

$

Not available

33

Poulan 530092335

Bearing - Large

$

$

Not available

34

Poulan 530092336

Retaining Ring

$

$

Not available

35

Poulan 530092337

Seal - Oil

$

$

Not available

36

Poulan 530092338

Collar - Shaft

$

$

Not available

37

Poulan 530015117

Screw - Clamp - #1/4 - 20 x 5/8"

$

$

Not available

39

Poulan 530092383

Clamp - Handlebar

$

$

Not available

40

Poulan 530001642

Lockwasher - Clamp

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 530015197

Nut - Handlebar - #1/4 - 20 - Hex

$6.49

$

In Stock, only 4 left!

0

42

Poulan 530092554

Drive Shaft Assembly

$

$

Not available

43

Poulan 530092332

Gear Housing

$34.99

$

Usually ships in 3-10 days

0

44

Poulan 530092331

Bearing - Small

$

$

Not available

45

Poulan 530092334

Gear

$

$

Not available

46

Poulan 530091402

Grip - Handlebar

$

$

Not available

47

Poulan 530092555

Handlebar

$19.99

$

Usually ships in 3-10 days

0

48

Poulan 530625509

Screw - #1/4 - 20 x 1" - Handlebar

$2.49

$

Usually ships in 3-10 days

0

49

Poulan 530092559

Spacer - Handlebar

$

$

Not available

50

Poulan 530092352

Screw - Lubrication Filler - #5/16 - 18 x 3/8"

$

$

Not available

51

Poulan 530092308

Spacer - Fiber - Pinch Clamp

$

$

Not available

52

Poulan 530092556

Washer - Fiber

$

$

Not available

53

Poulan 530092265

Gear Housing Assembly (Incl. #'s 22 - 36, 43, 44, 45 & 50 - 52)

$

$

Not available

A

Poulan 530025266

Decal - Product

$

$

Not available

B

Poulan 530026233

Decal - Handlebar Location

$

$

Not available

C

Poulan 530025264

Decal - Guard

$

$

Not available

Poulan 530092192

Cap - Drive Shaft Housing

$0.99

$

Usually ships in 3-10 days

0

Poulan 530060803

Carton Model 4000

$

$

Not available

Poulan 530060654

Carton Model 4500 (Not a serviceable part)

$

$

Not available

Operator's Manual

$

$

Not available

, Model 4000

Note: Not Shown.

$

$

Not available

Poulan 530066228

Type 1

$6.49

$

Usually ships in 3-10 days

0

Poulan 530066547

Type 2

$

$

Not available

Poulan 530064544

Model 4500

$

$

Not available
