4500/72 (5900722) - Ferris 72" Side-Discharge Mower Deck 61" & 72" Mower Deck - Hanger Chains & Rear Mount Rollers Parts Diagram

72" Side-Discharge Mower Deck

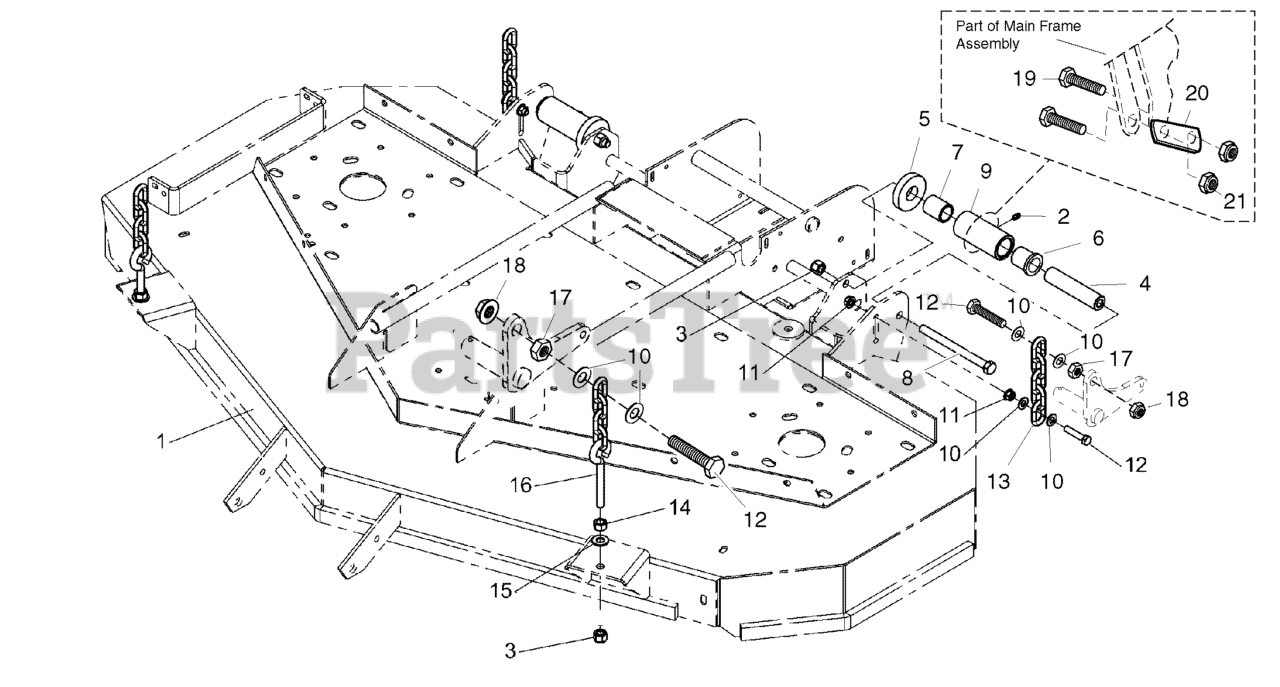

61" & 72" Mower Deck - Hanger Chains & Rear Mount Rollers Parts Diagram

  • Title

1

MOWER DECK

Note: (See Housing, Cover, Spindle & Blade Group)

$

$

Not available

2

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

Note: (Early models only)

$3.99

$

In Stock, only 2 left!

0

3

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

4

Ferris 5061132

SPACER, .52 X 1.00 X 4.56

$40.99

$

Usually ships in 2-12 days

0

5

Ferris 5061010

WASHER, FRICTION
(Superseded to 5061010FS)

$27.99

$

In Stock, only 1 left!

0

6

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

7

Ferris 5023375

BUSHING, 1.00 X 1.25 X 1.50 PL

$

$

Not available

8

Ferris 5025017X48

BOLT, 1/2-13 X 6" GD5 YZ
(Superseded to 5025017X48SM)

$6.49

$

Usually ships in 2-12 days

0

9

Ferris 5400097B

ROLLER, MULE DRIVE - RED

$

$

Not available

10

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

12

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

13

Ferris 5050878X5

CHAIN, 5/16" GD30, 5 LINKS

$32.99

$

Usually ships in 2-12 days

0

14

Ferris 5025038

NUT, 1/2-13 HEX
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

15

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

16

Ferris 5104303

HANGER, FRONT DECK - 4 LINK, 5.5" EB
(Superseded to 5104303YP)

Note: (61" models)

$53.99

$

Usually ships in 2-12 days

0

16

Ferris 5104311

HANGER, FRONT DECK - 5 LINK, 5.5" EB
(Superseded to 5104311YP)

Note: (72" model)

$68.99

$

Usually ships in 2-12 days

0

17

Ferris 5025084

NUT, 3/8-16 HEX JAM
(Superseded to 5025084SM)

$3.49

$

In Stock, Qty 14

0

18

Ferris 5025394

NUT, 3/8-16 Nylock Flange
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

19

Ferris 5025018X14

BOLT, 1/2-20 X 1-3/4" GD8 CZ
(Superseded to 5025018X14FS)

$2.99

$

Usually ships in 2-12 days

0

20

Ferris 5061474B

BAR, PUSHER BAR SUPPORT

$

$

Currently unavailable

21

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0
