450 - Shindaiwa Chainsaw Piston, Crankshaft Parts Diagram

Chainsaw

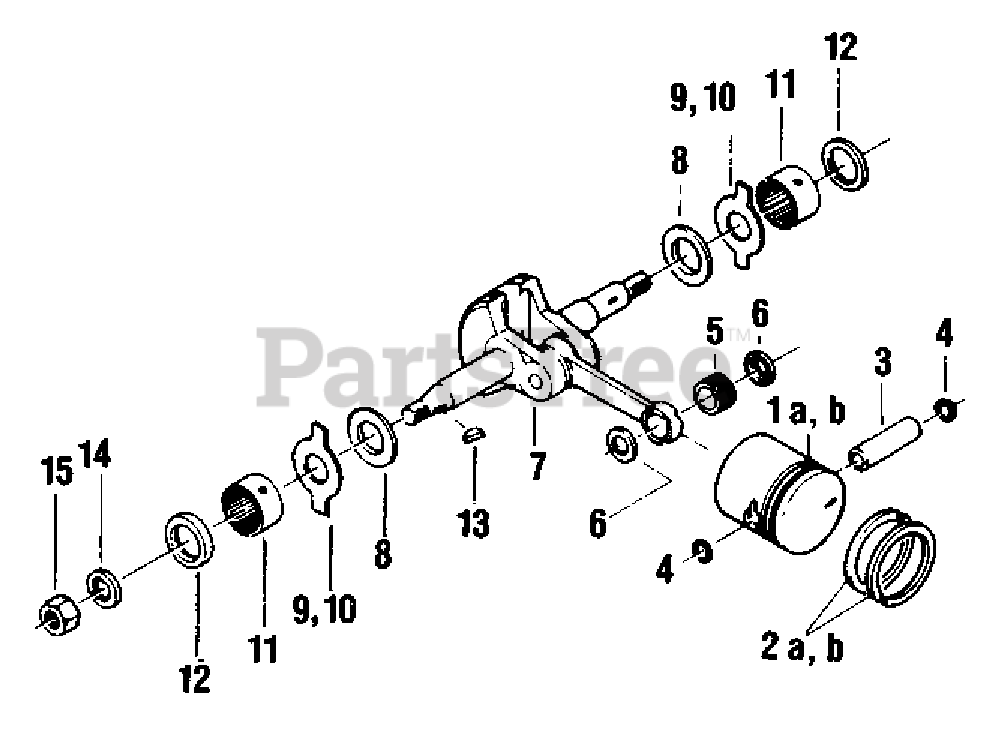

Piston, Crankshaft Parts Diagram

  • Title

Echo 99909-113

PISTON ASSY
(Superseded to Discontinued)

Note: For 415

$

$

Not available

Echo 99909-114

PISTON ASSY
(Superseded to Discontinued)

Note: For 450

$

$

Not available

1A

Echo 22120-41110

PISTON
(Superseded to Discontinued)

Note: For 415

$

$

Not available

1B

Echo 22128-41110

PISTON

Note: For 450

$

$

Not available

2A

Echo 22120-41210

RING, PISTON
(Superseded to Discontinued)

Note: For 415

$

$

Not available

2B

Echo 22128-41210

RING, PISTON
(Superseded to A101000490)

Note: For 450

$10.99

$

In Stock, Qty 6

0

3

Echo 22128-41220

PIN, PISTON

$5.99

$

In Stock, only 1 left!

0

4

Echo 22100-41230

RING, RETAINING
(Superseded to V580000110)

$0.99

$

In Stock, only 1 left!

0

5

Echo 22120-41330

BEARING, NEEDLE

$9.99

$

In Stock, only 1 left!

0

6

Echo 22120-41340

WASHER, THRUST
(Superseded to V307000300)

$5.49

$

Usually ships in 2-4 days

0

7A

Echo 22102-42001

CRANKSHAFT ASSY
(Superseded to Discontinued)

Note: (For 415)

$

$

Not available

7B

Echo 22128-42001

CRANKSHAFT ASSY
(Superseded to 22128-42002)

Note: (For 450)

$76.99

$

Usually ships in 2-4 days

0

8

Echo 22102-43110

WASHER, THRUST

$5.49

$

Usually ships in 2-4 days

0

9

Echo 22100-43140

PLATE, SIDE

$3.49

$

Usually ships in 2-4 days

0

10

Echo 22100-43150

PLATE, SIDE - RED
(Superseded to V150002480)

Note: Painted Red

$6.49

$

Usually ships in 2-4 days

0

11

Echo 22120-43160

BEARING, NEEDLE

$26.99

$

Usually ships in 2-4 days

0

12

Echo 22100-43170

SEAL, OIL
(Superseded to V505000130)

$5.49

$

Usually ships in 2-4 days

0

13

Echo 22100-43210

KEY - 3X10
(Superseded to 12408-03100)

$1.99

$

In Stock, only 2 left!

0

14

Echo 01600-08201

LOCKWASHER - 8
(Superseded to 90060500008)

$0.99

$

In Stock, Qty 20+

0

15

Echo 22100-43231

NUT
(Superseded to V265000180)

$0.99

$

Usually ships in 2-4 days

0
