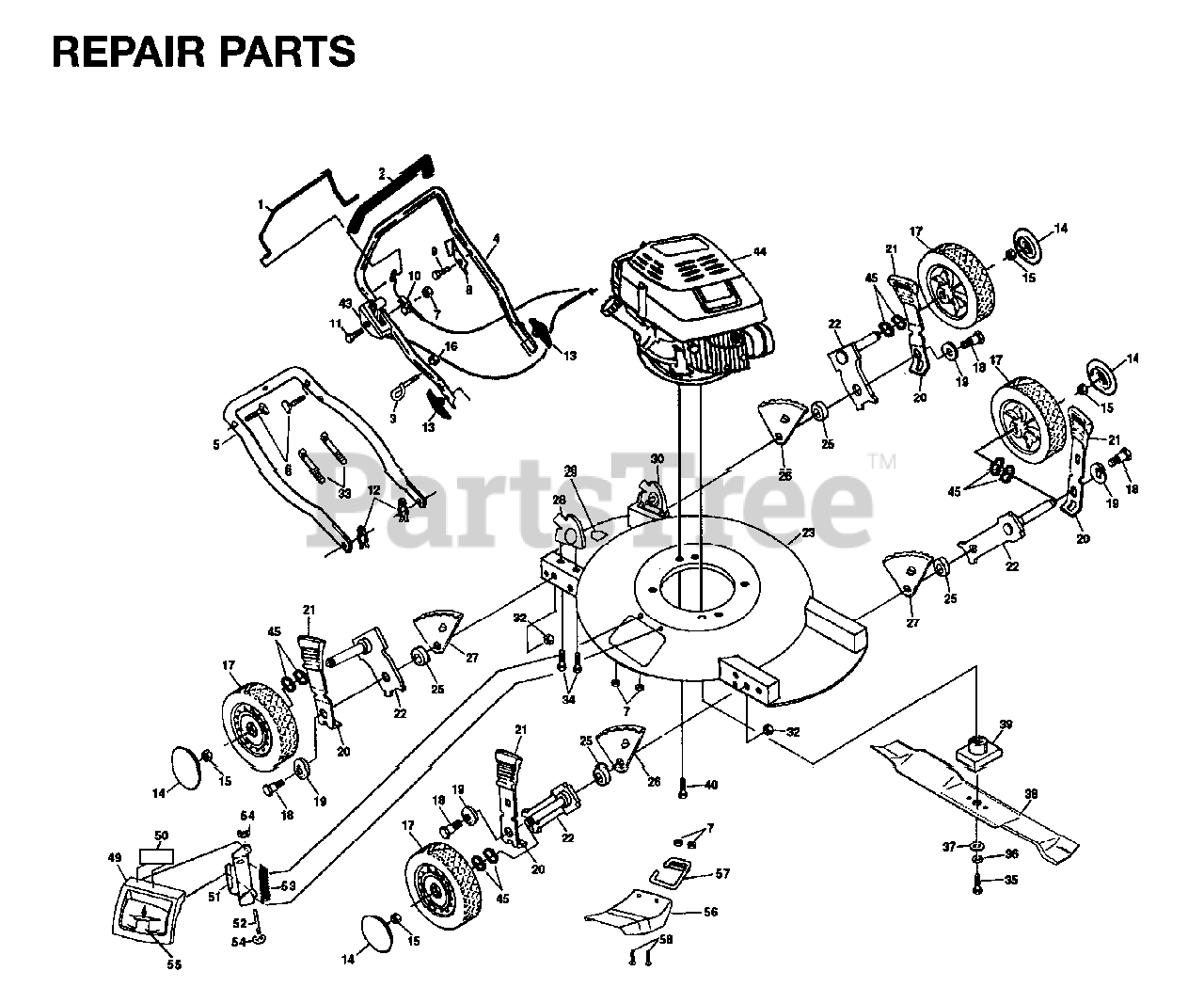

450 MII - Jonsered Walk-Behind Mower (1995-01) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

PRODUCT COMPLETE Parts Diagram

  • Title
1

Jonsered 532850735

CONTROL BAR/BLACK
(Superseded to 532800655)

$

$

Not available

2

Jonsered 532850724

HANDLE GRIP
(Superseded to 532155890)

$

$

Not available

3

Jonsered 532132001

ROPE GUIDE
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

4

Jonsered 532125161

No Description Available

$

$

Not available

5

Jonsered 532125160

LOWER HANDLE
(Superseded to 151516X479)

$

$

Not available

6

Jonsered 532131959

HANDLE BOLT
(Superseded to 532183724)

$

$

Not available

7

Jonsered 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

8

Jonsered 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

$4.99

$

In Stock, Qty 14

0

10

Jonsered 532130861

ENGINE ZONE CONTROL CABLE

$

$

Not available

11

Jonsered 532144929

SCREW 1/4-20 X 2.12
(Superseded to 532158755)

$

$

Not available

12

Jonsered 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

13

Jonsered 532136376

HANDLE KNOB
(Superseded to 532183724)

$

$

Not available

14

Jonsered 532008508

HUB CAP PM

$

$

Not available

15

Jonsered 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

16

Jonsered 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

17

Jonsered 532134105

No Description Available

$

$

Not available

18

Jonsered 532142748

BOLT
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

19

Jonsered 532062335

BELLEVILLE WASHER

$9.99

$

Usually ships in 3-10 days

0

20

Jonsered 532125066

SELECTOR SPRING

$6.49

$

In Stock, only 1 left!

0

21

Jonsered 532132800

SELECTOR KNOB
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

22

Jonsered 532125061

AXLE ARM ASSY FT
(Superseded to 532800754)

$

$

Not available

23

Jonsered 532145880

No Description Available

$330.99

$

Usually ships in 3-10 days

0

25

Jonsered 532084920

SPACER PM
(Superseded to 532146630)

$6.49

$

In Stock, only 4 left!

0

26

Jonsered 532088641

No Description Available

$

$

Not available

27

Jonsered 532088642

No Description Available
(Superseded to 88642)

$

$

Not available

28

Jonsered 532140465

HANDLE BRKT ASSY RH
(Superseded to 532150959)

$42.99

$

Usually ships in 3-10 days

0

29

Jonsered 532107339

No Description Available
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

30

Jonsered 532140466

HANDLE BRKT ASSY LH
(Superseded to 532150959)

$42.99

$

Usually ships in 3-10 days

0

32

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

33

Jonsered 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

34

Jonsered 532055187

SCREW
(Superseded to 817000512)

$6.49

$

In Stock, Qty 11

0

35

Jonsered 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

36

Jonsered 532850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

37

Jonsered 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 4 left!

0

38

Jonsered 532145106

BLADE.20.MULCH.(50DK,6020MD)

$20.99

$

Usually ships in 3-10 days

0

39

Jonsered 532851514

RP BLADE ADAPTOR
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

40

Jonsered 532850998

BOLT
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

43

Jonsered 532700583

THROTTLE CONTROL

$14.99

$

Usually ships in 3-10 days

0

45

Jonsered 532057143

WAVE WASHER
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

49

Jonsered 532140862

MULCHER DOOR

$

$

Not available

$

$

Not available

51

Jonsered 532130737

BRACKET HSG ASSY

$

$

Not available

52

$

$

Not available

53

Jonsered 532087589

SPRING PM

$6.49

$

Usually ships in 3-10 days

0

54

$7.49

$

In Stock, only 1 left!

0

55

Jonsered 532140864

DOOR LATCH

$

$

Not available

56

Jonsered 532752118

MULCHER DEFLECTOR

$

$

Not available

57

Jonsered 532751399

BRACKET.CHUTE.MTG

$13.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0
