450 M (1691416) - Simplicity 20" Snow Thrower, 3.5hp Auger Drive Group Parts Diagram

20" Snow Thrower, 3.5hp

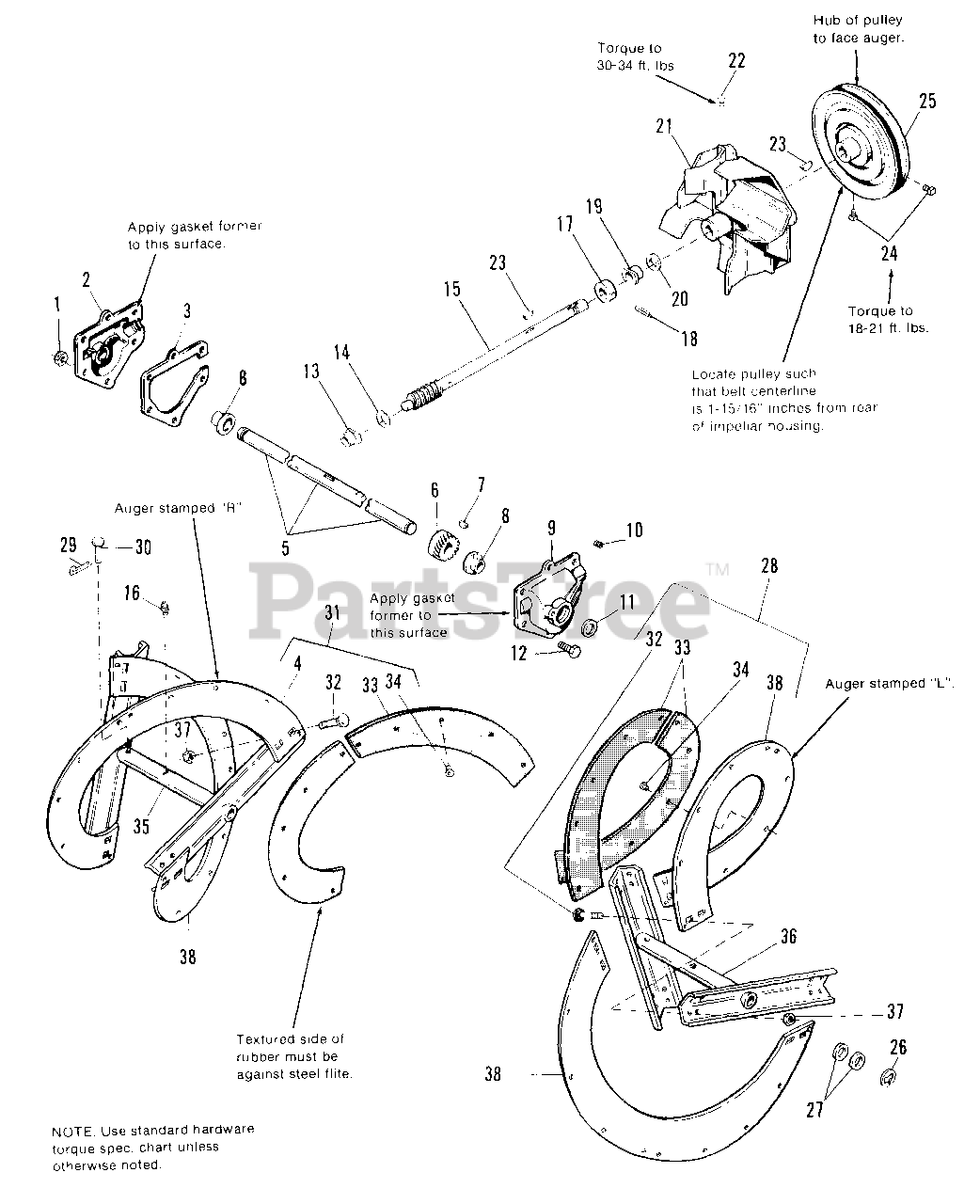

Auger Drive Group Parts Diagram

  • Title

1

Simplicity 1923358SM

NUT, Lock, 1/4-20 (Qty. 6 on 1691416 & 1691417)
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

2

Simplicity 1686821SM

GEAR CASE KIT, R.H. & L.H. (Incl. Ref. No. 2, 8 & 9) (1691172, 1691364 only)

Note: Kit contains both R.H. & L.H. gear case halves.

$

$

Not available

2

Simplicity 1686821SM

GEAR CASE ASSY., R.H. (Incl. Ref. No. 8) (1691416 & 1691417 only)

$

$

Not available

3

Simplicity 1611792SM

GASKET, Gear Case (1691172, 1691364 only)

$20.99

$

Usually ships in 2-12 days

0

4

AUGER BLADE, R.H. (See Ref. No. 31)

$

$

Not available

5

Simplicity 1678066

AUGER, Shaft

$

$

Not available

6

Simplicity 1676024SM

GEAR, Worm

$

$

Not available

7

Simplicity 2818312SM

KEY, Woodruff
(Superseded to 703891)

$4.99

$

In Stock, Qty 18

0

8

Simplicity 1676026SM

BUSHING, Auger Shaft

$7.99

$

In Stock, only 2 left!

0

9

Simplicity 1686821SM

GEAR CASE KIT, R.H. & L.H. (Incl. Ref. No. 2, 8 &9) (1691172, 1691364 only)

Note: Kit contains both R.H. & L.H. gear case halves.

$

$

Not available

10

Simplicity 2817673

PLUG, Pipe, 1/8-NPT, Gear Case

$

$

Not available

11

Simplicity 1676027SM

SEAL, Oil

$

$

Not available

12

Simplicity 1924009SM

CAPSCREW, Hex, 1/4-20 x 7/8 (Qty. 6 on 1691416 & 1691417)
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0

13

Simplicity 1666424SM

BUSHING, Worm Shaft

$27.99

$

Usually ships in 2-12 days

0

14

Simplicity 1670971SM

WASHER, Plain

$4.49

$

In Stock, Qty 6

0

15

Simplicity 1675162SM

WORM SHAFT

$93.99

$

Usually ships in 2-12 days

0

16

Simplicity 2821133SM

GREASE FITTING, Auger Support Assy.
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

17

Simplicity 1721680SM

COLLAR, Thrust, Worm Shaft

$

$

Not available

18

Simplicity 2836098SM

PIN, Driv-lok, 3/16 x 1-1/2, Thrust Collar

$18.99

$

In Stock, Qty 5

0

19

Simplicity 1666425SM

BUSHING, Worm Shaft

$20.99

$

In Stock, Qty 20+

0

20

Simplicity 1669372SM

SEAL, Oil, Impeller Assy. (1691172, 1691364 only)

$

$

Not available

21

Simplicity 1611795

IMPELLER ASSY.

$

$

Not available

22

Simplicity 1960474SM

SETSCREW, Sq. Hd., 3/8-16 x 1/2

$5.99

$

In Stock, Qty 5

0

23

Simplicity 2805123SM

KEY, Woodruff, 3/16 x 3/4
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

24

Simplicity 1928721SM

SETSCREW, Sq. Hd., 5/16-18 x 1/2

$4.99

$

In Stock, only 2 left!

0

25

Simplicity 1679655SM

PULLEY, Input, Auger

$69.99

$

Usually ships in 2-12 days

0

26

Simplicity 2827794SM

RING, Retaining

$3.49

$

In Stock, Qty 16

0

27

Simplicity 1960114SM

WASHER
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

28

Simplicity 1678028SM

AUGER FLITE ASSY., L.H. (Incl. Ref. No. 32, Qty. 4; Ref. No. 33, Qty. 2; Ref. No. 34, Qty. 20; & Ref. No. 38, Qty. 1)

$

$

Not available

29

Simplicity 1918447SM

PIN, Cotter, 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

30

Simplicity 1668344SM

PIN, Shear, Auger Support Assy.
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 1678027SM

AUGER FLITE ASSY., R.H. (Incl. Ref. No. 32, Qty. 4; Ref. No. 33, Qty. 2; Ref. No. 34, Qty. 20; & Ref. No. 4, Qty. 1)

$

$

Not available

32

Simplicity 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

In Stock, only 1 left!

0

33

Simplicity 1678031SM

FLITE, Rubber, Auger Blade

$8.99

$

Usually ships in 2-12 days

0

34

Simplicity 1673320SM

RIVET, 3/16" Tubular

$4.49

$

In Stock, Qty 8

0

35

Simplicity 1678065SM

AUGER SUPPORT ASSY., R.H. (Incl. Ref. No. 16, Qty. 1)

$77.99

$

Usually ships in 2-12 days

0

36

Simplicity 1678024SM

AUGER SUPPORT ASSY., L.H. (Incl. Ref. No. 16, Qty. 1)

$153.99

$

Usually ships in 2-12 days

0

37

Simplicity 1960294SM

NUT, Hex Lock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

38

AUGER BLADE, L.H. (See Ref. No. 28)

$

$

Not available
