450 (990165) - Simplicity Wonderboy Rear-Engine Riding Mower CONTROL LINKAGE AND POWER TAKE-OFF Model 450 Parts Diagram

Wonderboy Rear-Engine Riding Mower

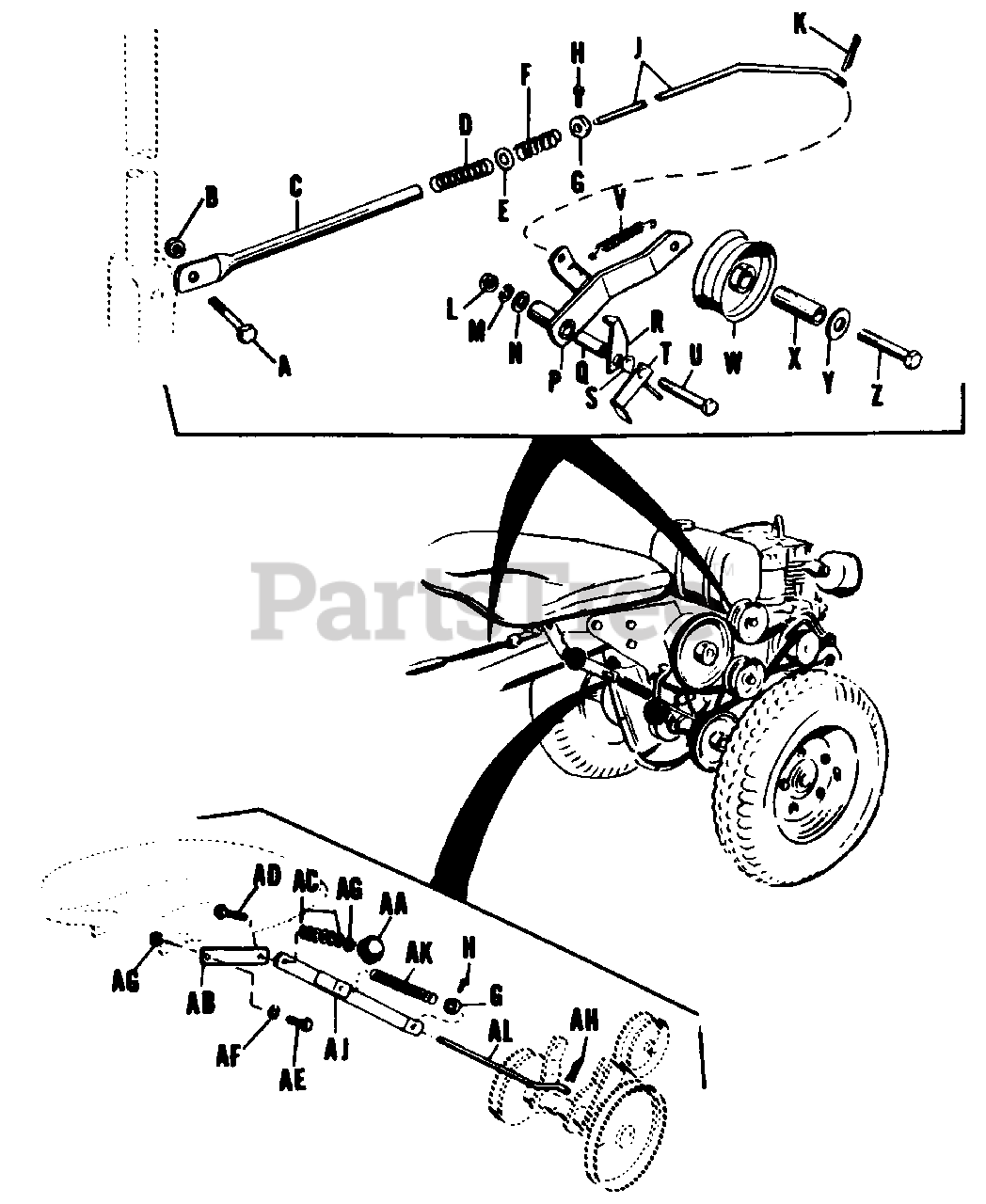

CONTROL LINKAGE AND POWER TAKE-OFF Model 450 Parts Diagram

  • Title
A

Simplicity 2705017

Capscrew, Hex Hd., 5/16-18 x 3/4

$

$

Not available

B

Simplicity 2717511

Nut, Lock, Full Hex, 5/16-18

$

$

Not available

C

Simplicity 121213

Rod, Front Clutch Assembly

$

$

Not available

$6.99

$

In Stock, only 1 left!

0

E

Simplicity 2719002

Washer, Plated, 5/16

$

$

Not available

$8.49

$

Usually ships in 2-12 days

0

G

Simplicity 1729276SM

Collar, Set

$

$

Not available

H

Simplicity 2713001

Set Screw, Sq. Hd., 1/4-20 x 3/8

$

$

Not available

J

Simplicity 121033

Rod, Rear Clutch

$

$

Not available

K

Simplicity 2722016

Pin, Cotter, 3/32 x 5/8

$

$

Not available

L

Simplicity 2717003

Nut, Full Hex, 3/8-16

$

$

Not available

M

Simplicity 2720002

Washer, Lock, 3/8

$

$

Not available

N

Simplicity 2719001

Washer, Plain, 3/8

$

$

Not available

P

Simplicity 121034

Lever Assembly, Idler

$

$

Not available

$13.99

$

Usually ships in 2-12 days

0

R

Simplicity 121038

Stop, Lever

$

$

Not available

S

Simplicity 121044

Pin, Lock

$

$

Not available

T

Simplicity 121135

Guide, Belt

$

$

Not available

U

Simplicity 705013

Capscrew, Hex Hd., 3/8-16 x 3

$8.99

$

In Stock, only 1 left!

0

$

$

Not available

W

Simplicity 2154534SM

Pulley, Idler

$32.99

$

In Stock, only 2 left!

0

X

Simplicity 8191020

Race, Inner Bearing

$

$

Not available

Y

Simplicity 2719001

Washer, Plain, 3/8

$

$

Not available

Z

Simplicity 2705006

Capscrew, Hex Hd., 3/8-16 x 2

$

$

Not available

$12.99

$

Usually ships in 2-12 days

0

$

$

Not available

AC

Simplicity 2719001

Washer, Plain, 3/8

$

$

Not available

AD

Simplicity 715007

Screw, Hex Hd. Cap, 3/8-16 x 1 3/4
(Superseded to 715588)

$14.99

$

Usually ships in 2-12 days

0

AE

Simplicity 2705009

Screw, Hex Hd. Cap, 3/8-16 x 1 1/2

$

$

Not available

AF

Simplicity 2719001

Washer, Plain, 3/8

$

$

Not available

AG

Simplicity 2717510

Hex Nut, Full Lock, 3/8-16

$

$

Not available

AH

Simplicity 2722016

Pin, Cotter, 3/32 x 5/8

$

$

Not available

AJ

Simplicity 1729265SM

Guide Assembly

$41.99

$

Usually ships in 2-12 days

0

$6.99

$

In Stock, only 1 left!

0

AL

Simplicity 121289

Rod, Clutch

$

$

Not available
