450 (190-450-100) - Cub Cadet 45" Snow Thrower Attachment Gear Box Parts Diagram

45" Snow Thrower Attachment

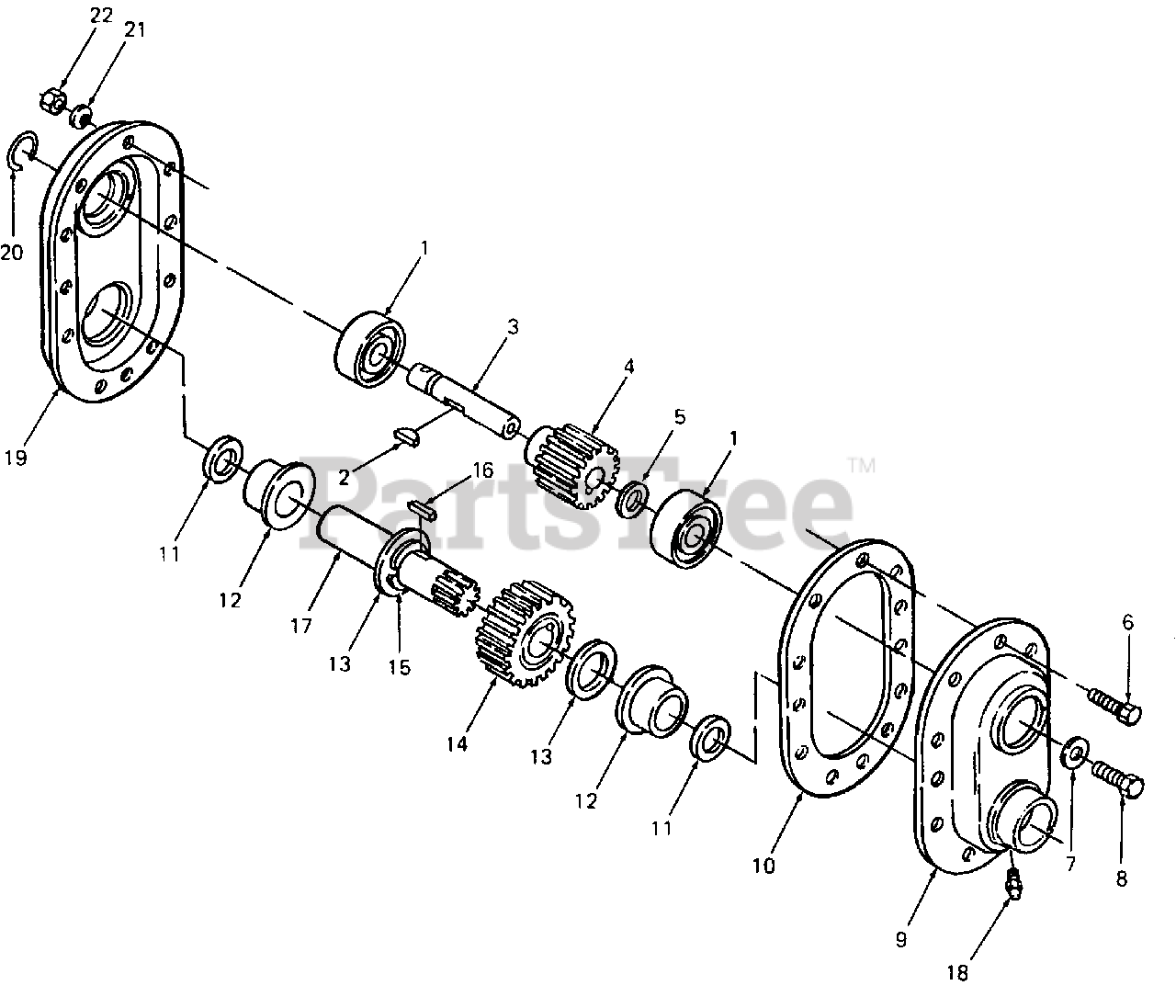

Gear Box Parts Diagram

  • Title

Cub Cadet 717-0869A

Gear Box Assy

$

$

Not available

1

Cub Cadet 741-0131

Bearing, Ball
(Superseded to 941-0131)

$53.99

$

In Stock, Qty 5

0

2

Cub Cadet 714-0135

Key, Woodruff, 1/4 X 3/4 HDN

$4.99

$

In Stock, only 2 left!

0

3

Cub Cadet 738-0361A

Shaft, Input

$

$

Not available

4

Cub Cadet 717-0361

Spur - Gear, 15T

$

$

Not available

5

Cub Cadet 736-0259

Washer, Flat, 1.0 X 1.625 X .090 Thk
(Superseded to 936-0259)

$

$

Not available

6

Cub Cadet 710-0299

Screw, Hex Cap, 1/4-28 X 1.0 Lg GR5

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 736-0247

Washer, Flat, .406 X 1.25 X .157 Thk HDN

$9.49

$

In Stock, Qty 12

0

8

Cub Cadet 710-0591

Screw, Hex Patch, 3/8-24 X 1.0 Lg GR5

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 717-0360

Housing Half - RH

$

$

Not available

10

Cub Cadet 721-0158

Gasket

$

$

Not available

11

Cub Cadet 721-0117

Seal, Oil, 1.25 ID X 1.75 OD

$

$

Not available

12

Cub Cadet 748-0194

Bearing, Flange, 1.252 ID

$32.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 736-0246

Washer, Flat, 1.25 X 2.0 X .060 Thk

$

$

Not available

14

Cub Cadet 717-0362

Spur - Gear, 28T
(Superseded to 917-0362)

$

$

Not available

15

Cub Cadet 716-0116

Ring, Snap

$4.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 714-0113

Key, Hi-Pro, 1/4 X 7/8

$6.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 738-0677

Shaft, Splined Output

$

$

Not available

18

Cub Cadet 737-0146

Fitting, Gear

$5.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 717-0359

Housing Half - LH

$

$

Not available

20

Cub Cadet 716-0118

Ring, Snap

$

$

Not available

21

Cub Cadet 736-0175

Washer, Spring, .270 X .51 X .030 Thk
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

22

Cub Cadet 712-0138

Nut, Hex, 1/4-28

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 737-0133

Grease, Gearbox 8 oz.
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 20+

0
