450 (190-450-100) - Cub Cadet 45" Snow Thrower Attachment att Undercarriage & Pivot Tube Parts Diagram

45" Snow Thrower Attachment

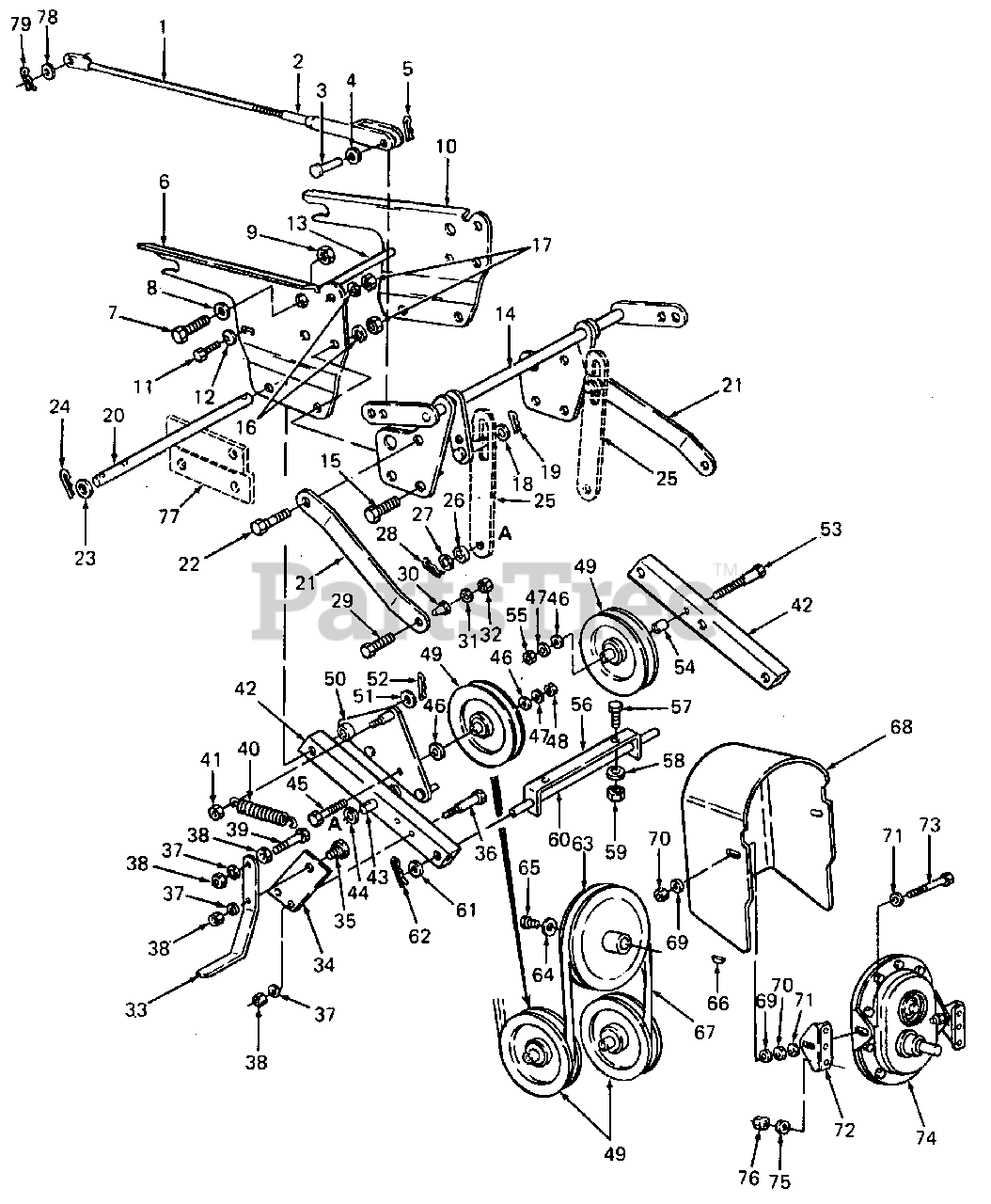

Undercarriage & Pivot Tube Parts Diagram

  • Title

1

Cub Cadet 747-0564

Rod, Lift Handle, .75 Dia X 29.0 Lg

$100.99

$

In Stock, only 2 left!

0

2

Cub Cadet 10991

Clevis Assy, Adj
(Superseded to 10991-0637)

Variations

Cub Cadet 10991-0637

Clevis Assembly Adj - POWDER BLACK (0637)

$137.99

$

In Stock, only 1 left!

0

$137.99

$

In Stock, only 1 left!

0

3

Cub Cadet 711-0654

Pin, Clevis

$16.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 736-0290

Washer, Flat, .625 X 1.0 X .067 Thk

$6.99

$

In Stock, only 3 left!

0

5

Cub Cadet 714-0147

Pin, Hitch Clip

$4.99

$

In Stock, Qty 7

0

6

Cub Cadet 784-5402A

Carriage Brkt - RH

$

$

Currently unavailable

7

Cub Cadet 710-3032

Screw, Hex Cap, 1/2-13 X 1.25 Lg GR5

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 736-0253

Washer, Belleville, .505 X 1.0 X .075 Thk

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0231

Nut, Pilot Weld, 1/2-13

$

$

Not available

10

Cub Cadet 784-5403A

Carriage Brkt - LH

$

$

Currently unavailable

11

Cub Cadet 710-0117

Screw, Hex Cap, 5/16-24 X 1.0 Lg
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 5

0

12

Cub Cadet 736-0242

Washer, Belleville, .345 X .88 X .060 Thk

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 747-0543

Rod, Carriage Brkt, Support

$

$

Not available

14

Cub Cadet 784-5249A

Pivot Assy

$

$

Currently unavailable

15

Cub Cadet 710-0504

Screw, Hex Cap, 1/2-20 X 1.25 Lg

$

$

Not available

16

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 5

0

17

Cub Cadet 712-0922

Nut, Hex Jam, 1/2-20
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

18

Cub Cadet 736-0290

Washer, Flat, .625 X 1.0 X .067 Thk

$6.99

$

In Stock, only 3 left!

0

19

Cub Cadet 714-0147

Pin, Hitch Clip

$4.99

$

In Stock, Qty 7

0

20

Cub Cadet 747-0544

Rod, 12.5 Lg

$

$

Not available

21

Cub Cadet 784-5413

Pivot Link, 15.5 Lg

$

$

Not available

22

Cub Cadet 738-0744

Bolt, Shoulder, .625 Dia X .36 Lg

$

$

Not available

23

Cub Cadet 736-0290

Washer, Flat, .625 X 1.0 X .067 Thk

$6.99

$

In Stock, only 3 left!

0

24

Cub Cadet 714-0147

Pin, Hitch Clip

$4.99

$

In Stock, Qty 7

0

25

Cub Cadet 784-5246

Lift Link, 10.2 Lg

$

$

Not available

26

Cub Cadet 748-0273

Spacer, .635 X .885 X .33 Lg

$

$

Not available

27

Cub Cadet 736-0290

Washer, Flat, .625 X 1.0 X .067 Thk

$6.99

$

In Stock, only 3 left!

0

28

Cub Cadet 714-0147

Pin, Hitch Clip

$4.99

$

In Stock, Qty 7

0

29

Cub Cadet 710-0191

Screw, Hex Cap, 3/8-24 X 1.25 Lg GR5

$4.99

$

In Stock, Qty 8

0

30

Cub Cadet 748-0241

Spacer, Shoulder, .38 ID

$

$

Not available

31

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 712-0116

Nut, Hex Insert Lock, 3/8-24

$4.99

$

In Stock, Qty 6

0

33

Cub Cadet 784-5410

Bracket, Spring

Variations

Cub Cadet 784-5410-0637

BRACKET-SPRING - POWDER BLACK (0637)

$

$

Not available

$

$

34

Cub Cadet 784-5411

Support, Spring Brkt

$

$

Not available

35

Cub Cadet 738-0322

Bolt, Shoulder, .625 Dia X .217 Lg
(Superseded to 738-0322A)

$6.99

$

In Stock, only 2 left!

0

36

Cub Cadet 710-0194

Screw, Hex Cap, 3/8-16 X 3.0 Lg

$

$

Not available

37

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 712-0798

Nut, Hex, 3/8-16

$4.49

$

In Stock, only 2 left!

0

39

Cub Cadet 710-0756

Screw, Hex Cap, 3/8-16 X 2.25 Lg

$

$

Not available

40

Cub Cadet 732-0262

Spring, Extension
(Superseded to 932-0262)

$

$

Not available

41

Cub Cadet 712-0116

Nut, Hex Insert Lock, 3/8-24

$4.99

$

In Stock, Qty 6

0

42

Cub Cadet 750-0701

Tubing, Square

$

$

Not available

43

Cub Cadet 711-0577

Pin, Clevis

$

$

Not available

44

Cub Cadet 736-0290

Washer, Flat, .625 X 1.0 X .067 Thk

$6.99

$

In Stock, only 3 left!

0

45

Cub Cadet 710-0489

Screw, Hex Cap, 1/2-13 X 2.0 Lg

$7.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 736-0326

Washer, Flat, .510 X 1.0 X .12 Thk

$4.49

$

In Stock, Qty 6

0

47

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 5

0

48

Cub Cadet 712-0206

Nut, Hex, 1/2-13

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 756-0507

Pulley, Idler, .50 ID X 6.0 OD

$77.99

$

In Stock, only 1 left!

0

50

Cub Cadet 784-5408

Bracket Assy, Idler

Variations

Cub Cadet 784-5408-0637

IDLER BRACKET ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

51

Cub Cadet 736-0290

Washer, Flat, .625 X 1.0 X .067 Thk

$6.99

$

In Stock, only 3 left!

0

52

Cub Cadet 714-0147

Pin, Hitch Clip

$4.99

$

In Stock, Qty 7

0

53

Cub Cadet 710-0465

Screw, Hex Cap, 1/2-20 X 4.5 Lg GR5

$11.99

$

In Stock, only 1 left!

0

54

Cub Cadet 750-0499

Spacer, .50 X .75 X .780 Lg

$23.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 712-0333

Nut, Hex,1/2-20
(Superseded to 912-0333)

$

$

Not available

56

Cub Cadet 784-5414

Pivot Brkt, Blower Hsg

$

$

Not available

57

Cub Cadet 710-0504

Screw, Hex Cap, 1/2-20 X 1.25 Lg

$

$

Not available

58

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 5

0

59

Cub Cadet 712-0922

Nut, Hex Jam, 1/2-20
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

60

Cub Cadet 747-0544

Rod, 12.5 Lg

$

$

Not available

61

Cub Cadet 736-0290

Washer, Flat, .625 X 1.0 X .067 Thk

$6.99

$

In Stock, only 3 left!

0

62

Cub Cadet 714-0147

Pin, Hitch Clip

$4.99

$

In Stock, Qty 7

0

63

Cub Cadet 756-0506

Pulley, 1.0 ID X 7.0 OD

Variations

Cub Cadet 756-0506-0637

V-PULLEY 7 IN. OD - POWDER BLACK (0637)

$

$

Not available

$

$

64

Cub Cadet 736-0247

Washer, Flat, .406 X 1.25 X .157 Thk HDN

$9.49

$

In Stock, Qty 16

0

65

Cub Cadet 710-0591

Screw, Hex Patch, 3/8-24 X 1.0 Lg GR5

$4.49

$

In Stock, only 1 left!

0

66

Cub Cadet 714-0154

Key, Hi-Pro, 1/4 X 3/4

$

$

Not available

67

Cub Cadet 754-0340

Belt, 5/8 X 84.0 Lg
(Superseded to 954-0340)

$66.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 731-0870

Cover, Belt

$

$

Not available

69

Cub Cadet 736-0159

Washer, Flat, .344 X .88 X .063 Thk

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 712-0267

Nut, Hex, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

71

Cub Cadet 736-0242

Washer, Belleville, .345 X .88 X .060 Thk

$4.49

$

In Stock, Qty 20+

0

72

Cub Cadet 05607

Bracket, Gear Box Support

$

$

Not available

73

Cub Cadet 710-0528

Screw, Hex Cap, 5/16-18 X 1.25 Lg GR5

$4.49

$

In Stock, Qty 20+

0

74

Cub Cadet 717-0869A

Gear Box Assy

Note: (Refer to Gear Box Assy for Components)

$

$

Not available

75

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

76

Cub Cadet 712-0138

Nut, Hex, 1/4-28

$6.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 784-5407

Bracket Ext

Variations

Cub Cadet 784-5407-0637

BRACKET- E - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-5407-0498

BRACKET- E - OLD CUB YELLOW (0498)

$

$

Not available

$

$

78

Cub Cadet 710-0504

Screw, Hex Cap, 1/2-20 X 1.25 Lg

$

$

Not available

79

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 5

0

Cub Cadet 712-0929

Nut, Hex Jam, 1/2-20

$

$

Currently unavailable

Cub Cadet 736-0272

Washer, Flat, .510 X 1.0 X .060 Thk

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 714-0145

Pin, Internal Cotter

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5415

Lift Handle Extension Bracket Assy

Variations

Cub Cadet 784-5415-0499

BRACKET EXT-LIFT HNDL(CUB BEIGE) - CUB BEIGE (0499)

$

$

Not available

$

$
