45-0403 (531307168) - Husqvarna 42" Front End Scoop for Tractors (2008-01) Front End Scoop Parts Diagram

42" Front End Scoop for Tractors

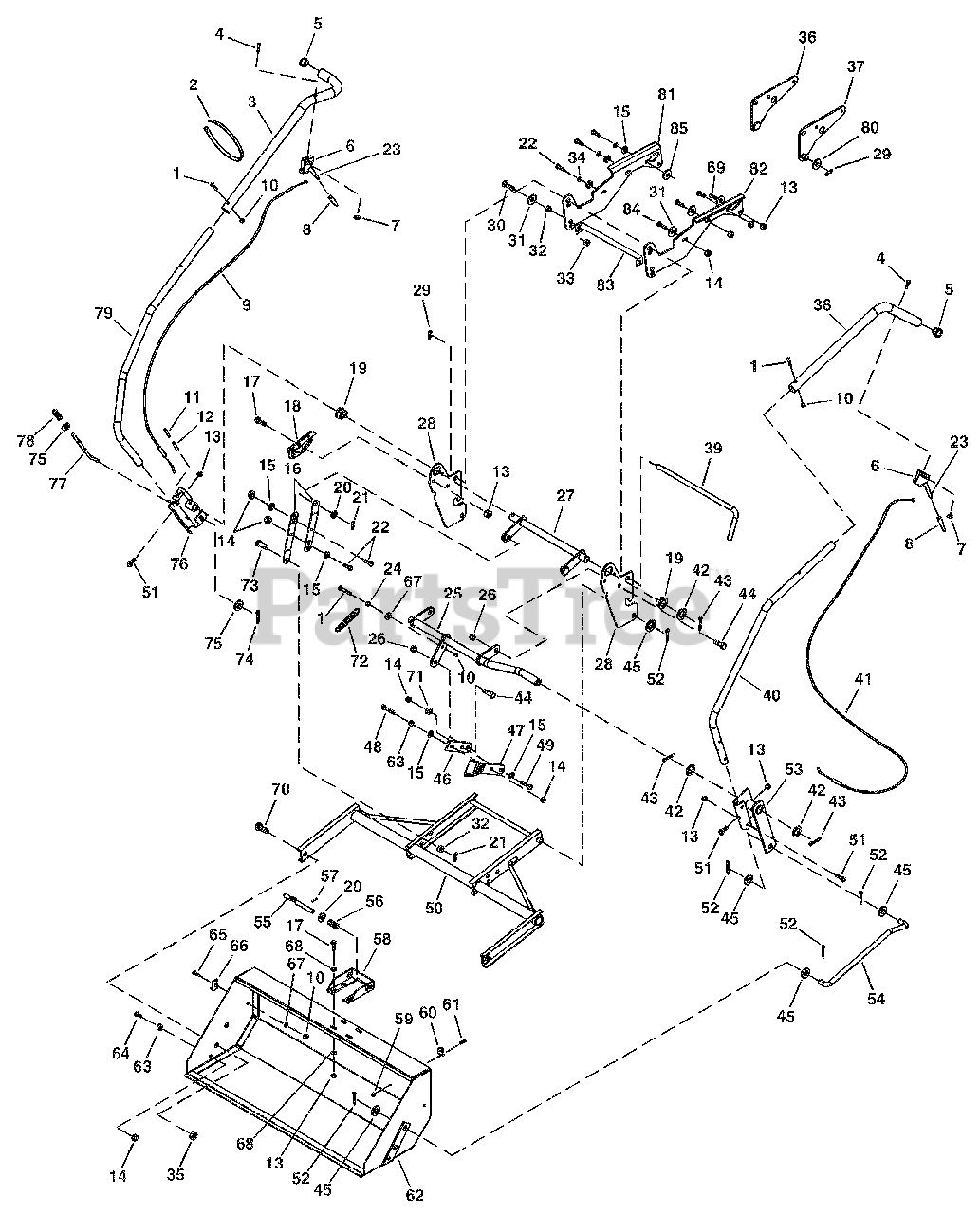

Front End Scoop Parts Diagram

  • Title

1

150969

Hex Bolt, 1/4-20 x 1-3/4"

Note: (Grade 5)

$

$

Not available

2

7260178

Cable Tie

$

$

Not available

3

Husqvarna 49265

Lift Handle Extension

$

$

Currently unavailable

4

Husqvarna 49266

Oval Screw, 10-24 x 1-1/2"

$

$

Currently unavailable

5

Husqvarna 47674

Plastic Plug, 1-1/4" O.D. Tube

$

$

Currently unavailable

6

Husqvarna 47554

Trigger Housing Assembly

$

$

Currently unavailable

7

Husqvarna 7120127

Square Nut, #10-24

$

$

Currently unavailable

8

Husqvarna 47317

Grip, Black

$

$

Currently unavailable

9

Husqvarna 47555

Cable, Lift

$

$

Currently unavailable

10

Husqvarna 47189

Nylock Nut, 1/4"

$

$

Currently unavailable

11

Husqvarna 47369

Roll Pin, 3/16" x 1-3/4"

$

$

Currently unavailable

12

Husqvarna 47368

Roll Pin, 5/16" x 1-3/4"

$

$

Currently unavailable

13

Husqvarna 47810

Nylock Nut, 5/16-18

$

$

Currently unavailable

14

Husqvarna HA21362

Nylock Nut, 3/8-16

$

$

Currently unavailable

15

Husqvarna 43070

Flat Washer, 3/8"

$

$

Not available

16

Husqvarna 25350

Lift Strap

$

$

Currently unavailable

17

Husqvarna 43063

Hex Bolt, 5/16-18x1"

Note: (Grade 5)

$

$

Not available

18

Husqvarna 25343

Lift Bracket

$

$

Currently unavailable

19

Husqvarna 7410192

Flange Bearing with Flats

$

$

Currently unavailable

20

Husqvarna R19171616

Flat Washer, 1/2" x 1"

Note: (Small)

$

$

Currently unavailable

21

Husqvarna 43055

Hairpin Cotter, 3/32" x 1.8"

$

$

Currently unavailable

22

Husqvarna 43001

Hex Bolt, 3/8-16x1"

Note: (Grade 5)

$

$

Not available

23

Husqvarna 63755

Trigger Assembly

$

$

Currently unavailable

24

Husqvarna 43178

Hex Nut, 1/4-20

$

$

Not available

25

Husqvarna 64964

Tilt Anchor Assembly

$

$

Currently unavailable

26

Husqvarna 48115

Nylock Jam Nut, 1/2-13

$

$

Currently unavailable

27

Husqvarna 63675

Lift Arm Assembly

$

$

Currently unavailable

28

Husqvarna 25510

Mounting Bracket

$

$

Currently unavailable

29

Husqvarna 43343

Hairpin Cotter, 3/32" x 2-5/16"

$

$

Not available

30

Husqvarna R74780828

Hex Bolt 1/2-13 x 1-3/4"

Note: (Grade 5)

$

$

Currently unavailable

31

Husqvarna R19172410

Flat Washer, 1/2" x 1-1/2"

Note: (Large)

$

$

Currently unavailable

32

Husqvarna 24817

Spacer, 0.52" x 0.75" x 0.5"

$

$

Currently unavailable

33

Husqvarna 7123083

Nylock Nut, 1/2-13

$

$

Currently unavailable

34

Husqvarna 43003

Lock Washer, 3/8"

$

$

Not available

35

7120261

Nylock Nut, 5/8-11

$

$

Not available

36

Husqvarna 63568

Right (Short) Side Plate

$

$

Currently unavailable

37

Husqvarna 63569

Left (Short) Side Plate

$

$

Currently unavailable

38

Husqvarna 49270

Dump Handle Tube Extension

$

$

Currently unavailable

39

Husqvarna 47066

Attachment Rod

$

$

Currently unavailable

40

Husqvarna 49271

Dump Handle Tube

$

$

Currently unavailable

41

Husqvarna 49483

Dump Control Cable

$

$

Currently unavailable

42

Husqvarna 43601

Washer, 1.59" x 1.032" x 0.60"

$

$

Currently unavailable

43

Husqvarna 43093

Cotter Pin, 1/8" x 1-1/2"

$

$

Currently unavailable

44

Husqvarna 7100865

Hex Bolt, 1/2-13 x 1"

Note: (Grade 5)

$

$

Currently unavailable

45

Husqvarna R19212016

Flat Washer, 5/8" x 1-1/4" x 16 Ga.

$

$

Currently unavailable

46

Husqvarna 25362

Tilt Bracket Extension Strap

$

$

Currently unavailable

47

Husqvarna 64983

Tilt Bracket

$

$

Currently unavailable

48

Husqvarna HA6441

Hex Bolt, 3/8-16 x 2"

Note: (Grade 5)

$

$

Currently unavailable

49

Husqvarna 41576

Hex Bolt, 3/8-16 x 1 -3/4"

Note: (Grade 5)

$

$

Currently unavailable

50

Husqvarna 64963

Lift Frame Assembly

$

$

Currently unavailable

51

Husqvarna 43084

Hex Bolt, 5/16-18x1 -3/4"

Note: (Grade 5)

$

$

Currently unavailable

52

Husqvarna 43010

Cotter Pin, 1/8" x 1-1/4"

$

$

Not available

53

Husqvarna 64968

Dump Pivot Bracket

$

$

Currently unavailable

54

Husqvarna 49273

Dump Control Rod

$

$

Currently unavailable

55

Husqvarna 49268

Dump Control Pin

$

$

Currently unavailable

56

Husqvarna 48905

Compression Spring

$

$

Currently unavailable

57

Husqvarna 46055

Spring Pin, 1/8" x 1"

$

$

Currently unavailable

58

Husqvarna 25335

Pin Stop Bracket

$

$

Currently unavailable

59

Husqvarna 47171

Nylock Nut, #10-32

$

$

Currently unavailable

60

Husqvarna HA23761

Hose Clamp

$

$

Currently unavailable

61

Husqvarna 43346

Truss-Head Bolt #10-32 x 5/8"

$

$

Not available

62

Husqvarna 64962

Bucket Assembly

$

$

Currently unavailable

63

Husqvarna 43015

Hex Nut, 3/8-16

$

$

Not available

64

Husqvarna 43087

Hex Bolt, 3/8-16 x 1-1/4"

Note: (Grade 5)

$

$

Not available

65

Husqvarna 44950

Carriage Bolt, 1/4-20x3/4"

Note: (Grade 5)

$

$

Currently unavailable

66

Husqvarna 25331

Tilt Stop Bracket

$

$

Currently unavailable

67

Husqvarna 7360142

Flat Washer, 1/4"

$

$

Currently unavailable

68

Husqvarna 43081

Flat Washer, 5/16"

$

$

Not available

69

Husqvarna 44326

Carriage Bolt, 5/16" x 1"

Note: (Grade 5)

$

$

Currently unavailable

70

Husqvarna 7100367

Hex Bolt, 5/8-11 x 1-1/2"

Note: (Grade 5)

$

$

Currently unavailable

71

Husqvarna 25408

Spacer, 3/8" I.D. x 7/8" O.D. x 3/8"

$

$

Currently unavailable

Husqvarna 23625

Spacer, 3/8" I.D. x 5/8" O.D. x 1/4"

$

$

Currently unavailable

72

Husqvarna 43000

Extension Spring

$

$

Currently unavailable

73

Husqvarna 44062

Clevis Pin, 1/2" x 1"

$

$

Currently unavailable

74

Husqvarna 142

Cotter Pin, 1/8" x3/4"

$

$

Currently unavailable

75

Husqvarna R19131316

Flat Washer, 3/8" x 13/16" x 1/16"

$

$

Currently unavailable

76

Husqvarna 63773

Index Bracket Assembly

$

$

Currently unavailable

77

Husqvarna 48049

Index Rod

$

$

Not available

78

Husqvarna 7320306

Spring, Compression

$

$

Currently unavailable

79

Husqvarna 49264

Lift Handle Tube

$

$

Currently unavailable

80

Husqvarna 43009

Flat Washer, 3/4"

$

$

Currently unavailable

81

Husqvarna 25562

Right (Long) Side Plate

$

$

Currently unavailable

82

Husqvarna 25563

Left (Long) Side Plate

$

$

Currently unavailable

83

Husqvarna 25722

Frame Brace

$

$

Currently unavailable

84

Husqvarna 43350

Bolt, Carriage 3/8-16x1"

Note: (Grade 5)

$

$

Not available

85

Husqvarna 7360235

Washer, .375" x 1.26" x .172"

$

$

Currently unavailable

Husqvarna 40121

Owner's Manual

$

$

Currently unavailable
