45-0302 - Husqvarna Sleeve Hitch (2005-06) Sleeve Hitch Parts Diagram

Sleeve Hitch

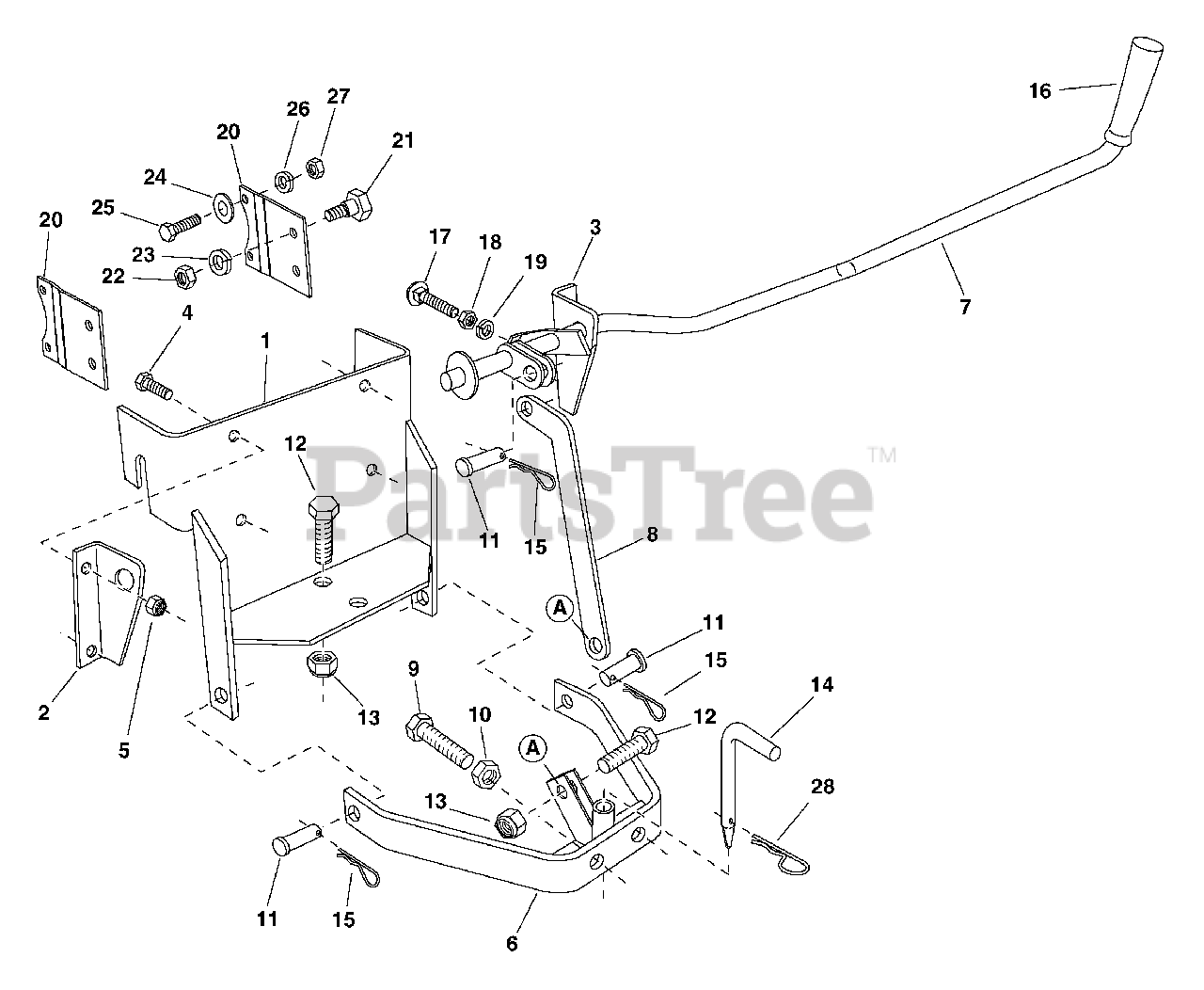

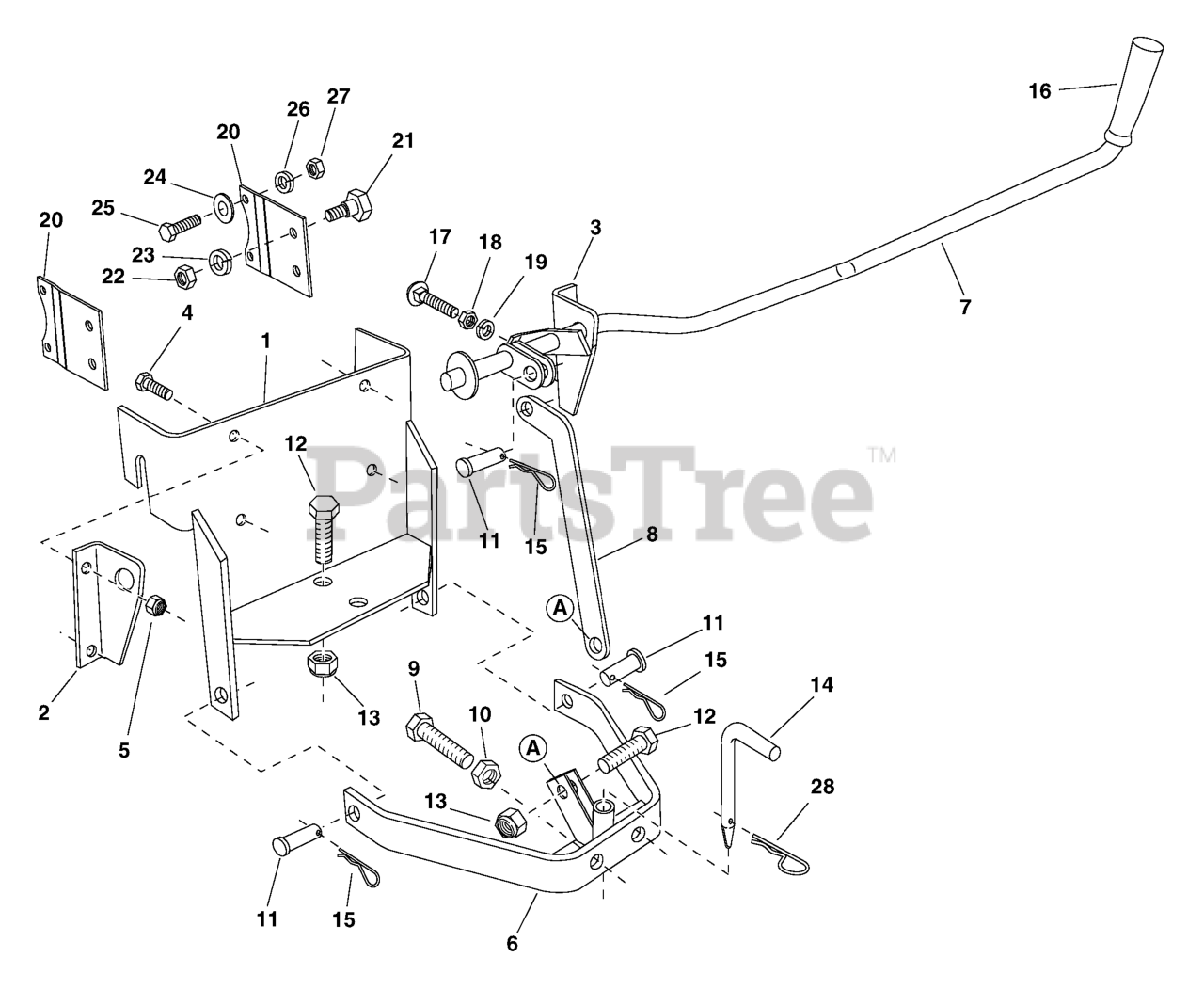

Sleeve Hitch Parts Diagram

  • Title

1

Husqvarna 65086

Sleeve Hitch Frame

$

$

Currently unavailable

2

Husqvarna 24723

Pivot Bracket, L.H.

$

$

Not available

3

Husqvarna 24792

Pivot Bracket, R.H.

$

$

Currently unavailable

4

Husqvarna 43001

Bolt, Hex 3/8-16 x 1"

$

$

Not available

5

Husqvarna HA21362

Nylock Nut, 3/8-16

$

$

Currently unavailable

6

Husqvarna 64098

Sleeve Hitch Lift Assembly

$

$

Currently unavailable

7

Husqvarna 64982

Lift Lever Assembly

$

$

Currently unavailable

8

Husqvarna 24732

Lifting Link Plate

$

$

Currently unavailable

9

Husqvarna 47947

Bolt, Hex 5/8-11 x 2"

$

$

Currently unavailable

10

Husqvarna 712-0242

Hex Jam Nut, 5/8-11

$

$

Currently unavailable

11

Husqvarna HA3980

Clevis Pin, 5/8" x 1-3/4"

$

$

Currently unavailable

12

Husqvarna 47951

Bolt, Hex 5/8-11 x 1-3/4"

$

$

Currently unavailable

13

Husqvarna 712-0261

Nylock Nut, 5/8-11

$

$

Currently unavailable

14

Husqvarna 47950

Pin, Sleeve Hitch

$

$

Currently unavailable

15

Husqvarna 43343

Pin, Hair Cotter 3/32"

$

$

Not available

16

Husqvarna 46471

Grip, Plastic

$

$

Currently unavailable

17

Husqvarna 44215

Carriage Bolt, 5/16-18 x 1-3/4"

$

$

Not available

18

Husqvarna 43083

Hex Nut, 5/16-18

$

$

Not available

19

Husqvarna 43086

Lock Washer, 5/16"

$

$

Not available

20

Husqvarna 25203

Mounting Bracket

$

$

Currently unavailable

21

Husqvarna 47363

Bolt, Shoulder

$

$

Currently unavailable

22

Husqvarna HA120371

Hex Nut, 1/2-20

$

$

Currently unavailable

23

Husqvarna 43353

Lock Washer, 1/2"

$

$

Not available

24

Husqvarna 43070

Flat Washer

$

$

Not available

25

Husqvarna 43087

Bolt, Hex 3/8-16 x 1-1/4"

$

$

Not available

26

Husqvarna 43003

Lock Washer, 3/8"

$

$

Not available

27

Husqvarna 43015

Hex Nut, 3/8-16

$

$

Not available

28

Husqvarna 714-0117

Pin, Hair Cotter, 5/32"

$

$

Currently unavailable

Husqvarna 49412

Owner's Manual

$

$

Currently unavailable
