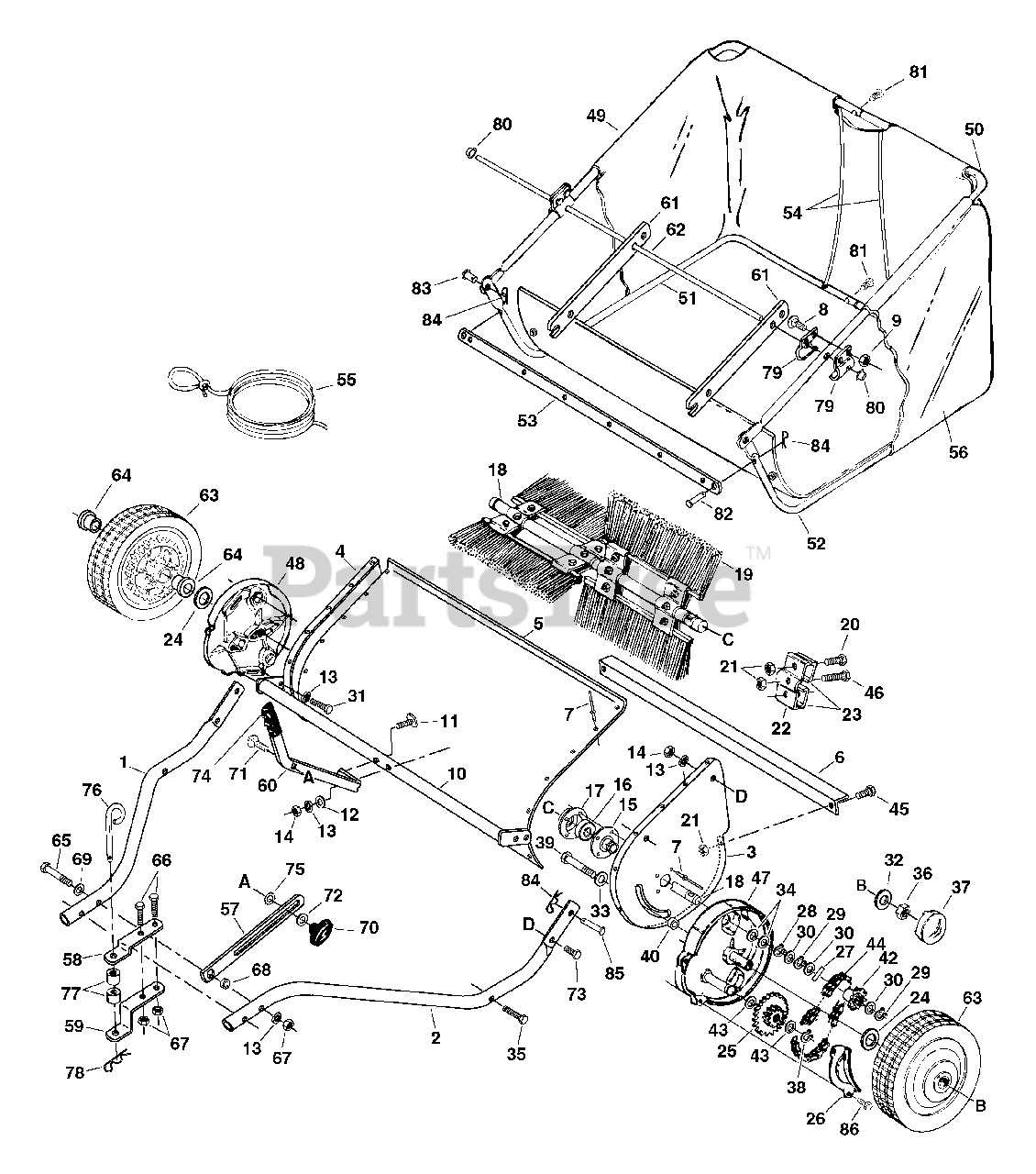

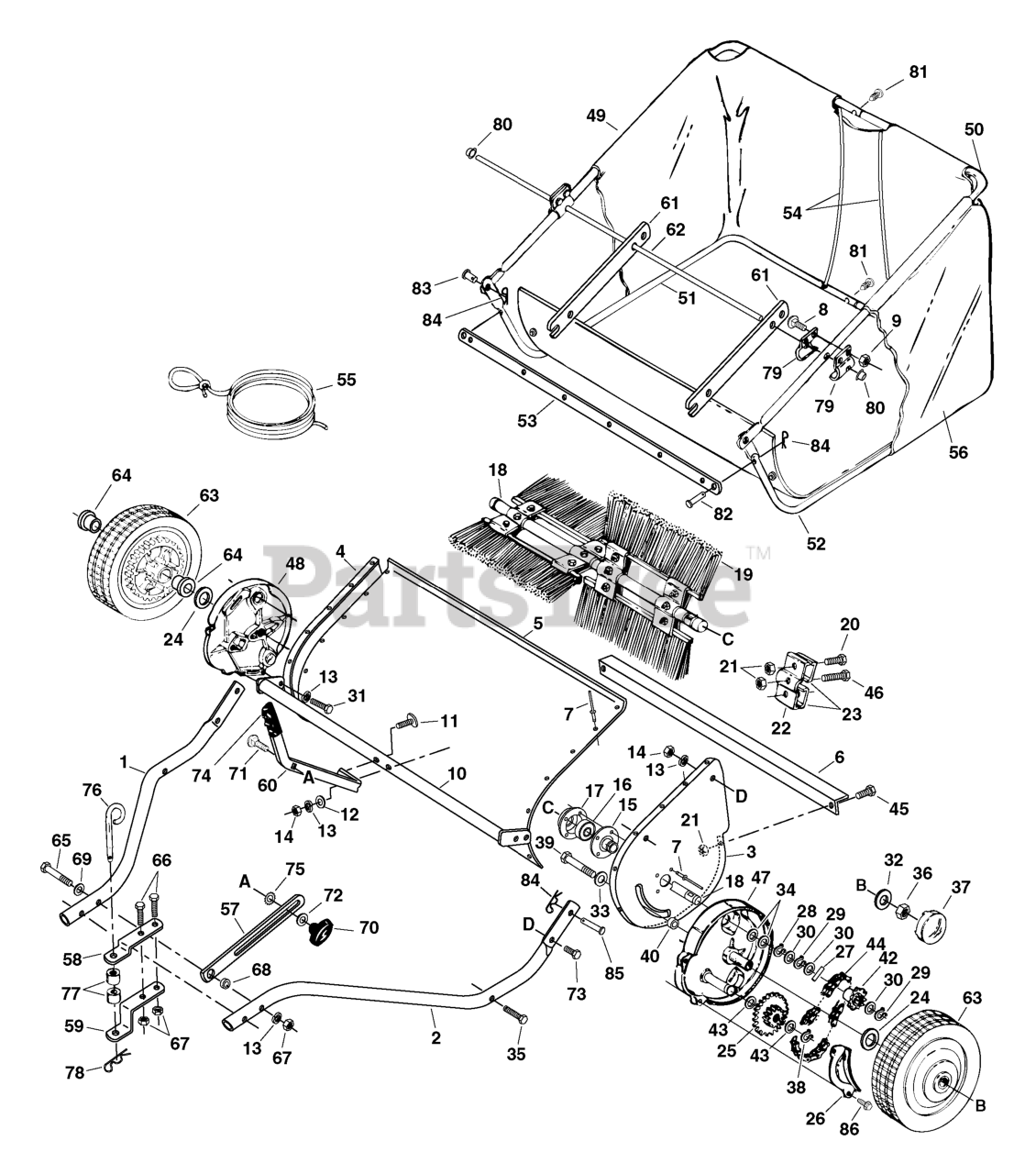

45-01972 - Husqvarna 38" Tow-Behind Sweeper (2005-06) High Performance Lawnsweepers Parts Diagram

38" Tow-Behind Sweeper

High Performance Lawnsweepers Parts Diagram

  • Title

1

Husqvarna 47370

Hitch Tube, R.H.

$

$

Currently unavailable

2

Husqvarna 47371

Hitch Tube, L.H.

$

$

Currently unavailable

3

Husqvarna 24195

End Plate, L.H.

$

$

Currently unavailable

4

Husqvarna 24196

End Plate, R.H.

$

$

Currently unavailable

5

Husqvarna 24485

Wrapper

$

$

Currently unavailable

6

Husqvarna 23854

Brace, Rear Support

$

$

Currently unavailable

7

Husqvarna C-9M5732

Rivet, Pop

$

$

Currently unavailable

8

Husqvarna 43080

Bolt, Carriage 5/16-18 x 3/4"

$

$

Not available

9

Husqvarna 46980

Nut, Hex 5/16-18 (SEMS)

$

$

Currently unavailable

10

Husqvarna 63777

Height Adjustment Ass'y.

$

$

Currently unavailable

11

Husqvarna 44947

Bolt, Cv. Hd. 5/16-18 x 1-5/8" Lg.

$

$

Currently unavailable

12

Husqvarna 44695

Washer, Bowed 1" x .32" x .06"

$

$

Currently unavailable

13

Husqvarna 43086

Lock Washer, 5/16"

$

$

Not available

14

Husqvarna 43083

Nut, Hex 5/16-18 Thread

$

$

Not available

15

Husqvarna 62489

Brush Bushing Ass'y.

$

$

Currently unavailable

16

Husqvarna 44232

Ball Bearing

$

$

Currently unavailable

17

Husqvarna 1629-56

Retainer, Dust Cover

$

$

Currently unavailable

18

Husqvarna 23574

Brush Shaft, 38"

$

$

Currently unavailable

19

Husqvarna 47488

Brush, 38"

$

$

Currently unavailable

20

Husqvarna 43012

Bolt, Hex 1/4-20 x 3/4" Lg.

$

$

Not available

21

Husqvarna 43013

Nut, Hex Lock 1/4-20 Thread

$

$

Currently unavailable

22

Husqvarna 23580

Retainer, Brush (Double)

$

$

Currently unavailable

23

Husqvarna 23581

Retainer, Brush (Single)

$

$

Currently unavailable

24

Husqvarna 44008

Washer, Flat 1-1/8" x .78" x .025"

$

$

Currently unavailable

25

Husqvarna 62490

Sprocket / Gear

$

$

Currently unavailable

26

Husqvarna 23573

Dust Cover

$

$

Currently unavailable

27

Husqvarna 47046

Dowel Pin (Drive)

$

$

Currently unavailable

28

Husqvarna 43655

Ring, Retaining 3/4"

$

$

Currently unavailable

29

Husqvarna 1650-21

Ring, Retaining .594"

$

$

Currently unavailable

30

Husqvarna 44007

Washer, Shim 1-1/8" x .594" x .025"

$

$

Currently unavailable

31

Husqvarna 43182

Bolt, Hex 5/16-18 x 3/4" Lg.

$

$

Currently unavailable

32

Husqvarna 141

Washer, Flat 1-1/2" x .375" x .062"

$

$

Currently unavailable

33

Husqvarna 43070

Washer, 3/8" Std. Wrt.

$

$

Not available

34

Husqvarna 1540-31

Washer, Flat .78" x 1.25" x .06"

$

$

Currently unavailable

35

Husqvarna 43084

Bolt, Hex 5/16-18 x 1-3/4" Lg.

$

$

Currently unavailable

36

Husqvarna 1038

Nut, Hex Lock 3/8-24 Thread

$

$

Currently unavailable

37

Husqvarna 2674-32

Hub Cap

$

$

Currently unavailable

38

Husqvarna 43894

Ring, Retaining 1/2"

$

$

Currently unavailable

39

Husqvarna 43932

Bolt, Hex 3/8-24 x 3-1/2" Lg.

$

$

Currently unavailable

40

Husqvarna 23400

Bushing, Spacer

$

$

Currently unavailable

41

Husqvarna 43890

Sprocket, Ratchet R.H.

Note: (not shown)

$

$

Currently unavailable

42

Husqvarna 43889

Sprocket, Ratchet L.H.

$

$

Currently unavailable

43

Husqvarna 44137

Washer, 1/2" x 1" x .02"

$

$

Currently unavailable

44

Husqvarna 44542

Chain, Roller

$

$

Currently unavailable

45

Husqvarna 43175

Bolt, Hex 1/4-20 x 1/2" Lg.

$

$

Currently unavailable

46

Husqvarna 43661

Bolt, Hex 1/4-20 x 1" Lg.

$

$

Currently unavailable

47

Husqvarna 62791

Housing, Wheel Drive Ass'y. L.H.

$

$

Currently unavailable

48

Husqvarna 62792

Housing, Wheel Drive Ass'y. R.H.

$

$

Currently unavailable

49

Husqvarna 43966

Tube, Upper Hopper Frame R.H.

$

$

Currently unavailable

50

Husqvarna 43967

Tube, Upper Hopper Frame L.H.

$

$

Currently unavailable

51

Husqvarna 43968

Tube, Lower Hopper Frame R.H.

$

$

Currently unavailable

52

Husqvarna 43969

Tube, Lower Hopper Frame L.H.

$

$

Currently unavailable

53

Husqvarna 23352

Strap, Bag Frame

$

$

Currently unavailable

54

Husqvarna 43938

Rod, Hopper Support

$

$

Currently unavailable

55

Husqvarna 43737

Hopper Rope

$

$

Currently unavailable

56

Husqvarna 48553

Hopper Bag, 38"

$

$

Currently unavailable

57

Husqvarna 24191

Strap, Height Adjustment

$

$

Currently unavailable

58

Husqvarna 23687

Bracket, Hitch

$

$

Currently unavailable

59

Husqvarna 23014

Bracket, Hitch

$

$

Currently unavailable

60

Husqvarna 24193

Handle, Height Adjustment

$

$

Currently unavailable

61

Husqvarna 24487

Bag Arm

$

$

Currently unavailable

62

Husqvarna 47373

Rod, Hopper Bag Pivot

$

$

Currently unavailable

63

Husqvarna 44985

Wheel & Tire Ass'y. (White)

$

$

Currently unavailable

64

Husqvarna 45088

Wheel Bearing

$

$

Currently unavailable

65

Husqvarna 46782

Bolt, Hex 5/16-18 x 3" Lg.

$

$

Currently unavailable

66

Husqvarna 43224

Bolt, Hex 5/16-18 x 2-1/4" Lg.

$

$

Currently unavailable

67

Husqvarna 43064

Nut, Hex Lock 5/16-18 Thread

$

$

Not available

68

Husqvarna 46847

Bushing, Spacer

$

$

Currently unavailable

69

Husqvarna R19111116

Washer, Flat 11/32" x 11/16"

$

$

Currently unavailable

70

Husqvarna 43720

Knob, Wing 5/16-18 Thread

$

$

Currently unavailable

71

Husqvarna 43080

Bolt, Carriage 5/16-18 x 3/4" Lg.

$

$

Not available

72

Husqvarna 43081

Washer, Flat 5/16" Std. Wrt.

$

$

Not available

73

Husqvarna 43063

Bolt, Hex 5/16-18 x 1" Lg.

$

$

Not available

74

Husqvarna 43943

Grip, Height Adjust

$

$

Currently unavailable

75

Husqvarna 44732

Washer, Tooth Lock 5/16"

$

$

Currently unavailable

76

Husqvarna 23353

Pin, Hitch

$

$

Currently unavailable

77

Husqvarna 23368

Tube, Hitch Spacer

$

$

Currently unavailable

78

Husqvarna 43343

Hairpin Cotter, 1/8" #4

$

$

Not available

79

Husqvarna 23331

Clamp, Hopper Mount

$

$

Currently unavailable

80

Husqvarna 44917

Palnut, 3/8"

$

$

Currently unavailable

81

Husqvarna 48402

Plug, 1/4"

$

$

Not available

82

Husqvarna 48365

Pin, Clevis 1/4" x 1-1/8" (Special)

$

$

Not available

83

Husqvarna 48366

Pin, Clevis 3/8" x 1/2" (Special)

$

$

Not available

84

Husqvarna 43055

Pin, Hair Cotter 3/32" #3

$

$

Currently unavailable

85

Husqvarna 44044

Pin, Clevis 3/8" x 3/4" Lg.

$

$

Currently unavailable

86

Husqvarna 49102

Screw, #12 x 1/2" Hex Head

$

$

Currently unavailable

Husqvarna 48554

Owners Manual

$

$

Currently unavailable
