44Y977-0002-H5 - Briggs & Stratton Vertical Engine Crankcase Cover/Sump Group Parts Diagram

Vertical Engine

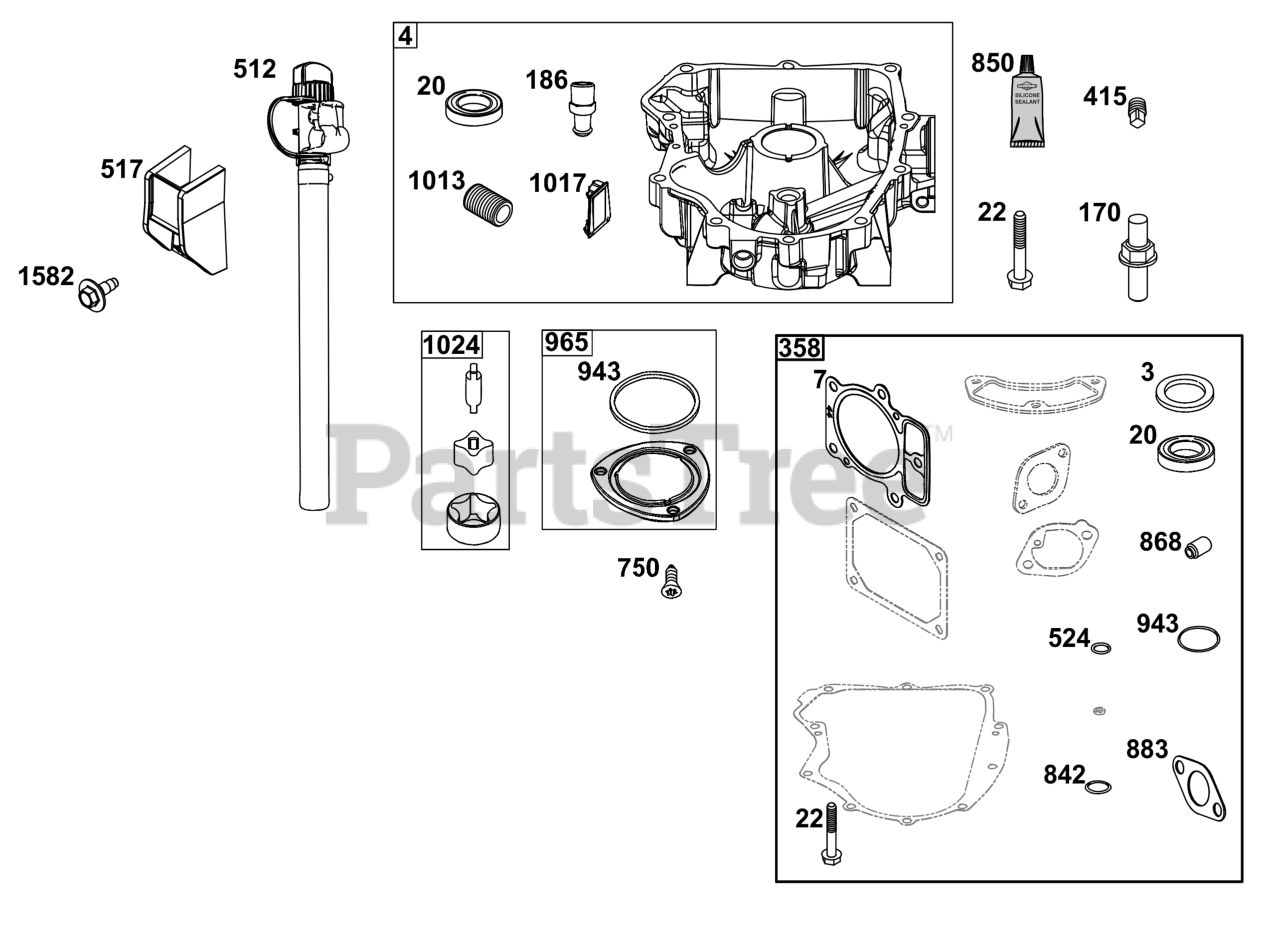

Crankcase Cover/Sump Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

4

Briggs & Stratton 84004575

SUMP, Engine

$217.99

$

Usually ships in 2-12 days

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

20

Briggs & Stratton 795387

SEAL, Oil

Note: (PTO Side)

$7.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 694966

SCREW

Note: (Crankcase Cover/Sump)

$5.99

$

Usually ships in 2-12 days

0

170

Briggs & Stratton 593903

STUD

Note: (Crankcase Cover/Sump)

$16.99

$

Usually ships in 2-12 days

0

186

CONNECTOR, Hose

Note: (Part information located in Lubrication Group.)

$

$

Not available

358

Briggs & Stratton 594213

GASKET SET, Engine
(Superseded to 84001915)

Note: (Service Kits may include extra parts not specific to this engine.)

$110.99

$

In Stock, only 1 left!

0

415

Briggs & Stratton 794903

PLUG

$5.49

$

Usually ships in 2-12 days

0

512

HOSE, Oil Drain

Note: (Part information located in Lubrication Group.)

$

$

Not available

517

RETAINER, Oil Drain

Note: (Part information located in Lubrication Group.)

$

$

Not available

524

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

750

SCREW

Note: (Part information located in Lubrication Group.)

$

$

Not available

842

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

850

Briggs & Stratton 100106

SEALANT, Liquid

$14.99

$

In Stock, Qty 20+

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

Briggs & Stratton 690970

GASKET, Exhaust

Note: (Part information located in Cylinder Head Group.)

$4.99

$

In Stock, Qty 20+

0

943

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

965

COVER, Oil Pump

Note: (Part information located in Lubrication Group.)

$

$

Not available

1013

Briggs & Stratton 690957

RETAINER, Breather

$6.99

$

In Stock, only 1 left!

0

1017

SCREEN, Oil Pump

Note: (Part information located in Lubrication Group.)

$

$

Not available

1024

PUMP, Oil

Note: (Part information located in Lubrication Group.)

$

$

Not available

1582

SCREW

Note: (Part information located in Lubrication Group.)

$

$

Not available
