44U877-0023-B5 - Briggs & Stratton Vertical Engine Carburetor and Fuel Supply Group Parts Diagram

Vertical Engine

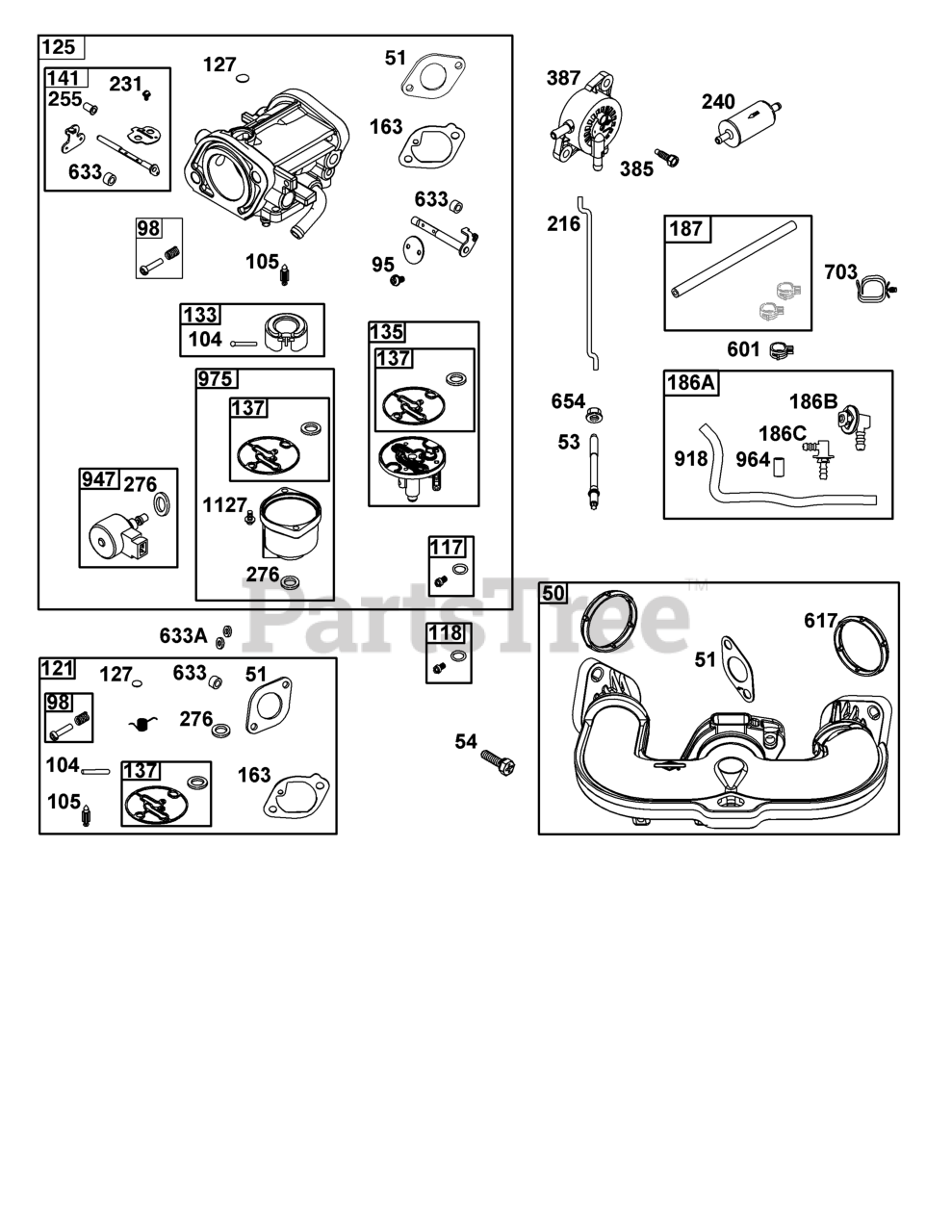

Carburetor and Fuel Supply Group Parts Diagram

  • Title

50

MANIFOLD, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

53

Briggs & Stratton 690951

STUD

Note: (Carburetor)

$7.49

$

In Stock, only 1 left!

0

54

SCREW

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 695408

KIT, Idle Speed

$13.99

$

In Stock, only 1 left!

0

98

Briggs & Stratton 695408

KIT, Idle Speed

$13.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 694918

PIN, Float Hinge

$7.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 698537

VALVE, Float Needle

$15.99

$

In Stock, Qty 17

0

117

Briggs & Stratton 842585

JET, Main

Note: (Standard)

$20.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 792296

JET, Main

Note: (High Altitude)

$17.99

$

In Stock, Qty 8

0

121

Briggs & Stratton 594212

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$52.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 596375

CARBURETOR
(Superseded to 597128)

$247.99

$

In Stock, only 2 left!

0

127

Briggs & Stratton 699810

PLUG, Welch

$5.49

$

In Stock, Qty 8

0

133

Briggs & Stratton 694914

FLOAT, Carburetor

$28.99

$

In Stock, Qty 8

0

135

Briggs & Stratton 591701

TUBE, Fuel Transfer

$38.99

$

In Stock, only 2 left!

0

137

Briggs & Stratton 698781

GASKET, Float Bowl

$9.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 698781

GASKET, Float Bowl

$9.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 595218

KIT, Choke Shaft

$39.99

$

In Stock, only 1 left!

0

141

Briggs & Stratton 595218

KIT, Choke Shaft

$39.99

$

In Stock, only 1 left!

0

141

Briggs & Stratton 595218

KIT, Choke Shaft

$39.99

$

In Stock, only 1 left!

0

163

Briggs & Stratton 594203

GASKET, Intake

$4.49

$

In Stock, Qty 20+

0

186A

Briggs & Stratton 799158

CONNECTOR, Hose

$10.99

$

In Stock, Qty 15

0

186B

Briggs & Stratton 845141

CONNECTOR, Hose

$10.99

$

In Stock, only 4 left!

0

186C

Briggs & Stratton 594428

CONNECTOR, Hose

$4.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 791766

LINE, Fuel

$7.99

$

In Stock, Qty 20+

0

187

Briggs & Stratton 791766

LINE, Fuel

$7.99

$

In Stock, Qty 20+

0

216

LINK, Choke

Note: (Part information located in Controls Group.)

$

$

Not available

231

Briggs & Stratton 690991

SCREW

Note: (Choke Valve)

$3.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.49

$

In Stock, Qty 20+

0

255

Briggs & Stratton 690721

BUSHING, Choke Shaft

$8.49

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 695410

WASHER, Sealing

$6.99

$

In Stock, Qty 15

0

385

Briggs & Stratton 797409

SCREW

Note: (Fuel Pump)

$3.99

$

In Stock, only 2 left!

0

387

Briggs & Stratton 597338

PUMP, Fuel

$27.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 17

0

617

SEAL, O-Ring

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

633

Briggs & Stratton 699813

SEAL, Choke/Throttle Shaft

$6.99

$

In Stock, only 1 left!

0

633A

Briggs & Stratton 806131

SEAL, Choke/Throttle Shaft

$5.99

$

Usually ships in 2-12 days

0

654

Briggs & Stratton 690958

NUT

Note: (Carburetor)

$3.49

$

In Stock, only 3 left!

0

703

Briggs & Stratton 691010

CLIP

$6.99

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 799160

HOSE, Vacuum

$7.99

$

In Stock, only 1 left!

0

947

Briggs & Stratton 596039

SOLENOID, Fuel

$166.99

$

In Stock, only 1 left!

0

964

CAP, Connector

Note: (Part information located in Blower Housing and Air Cleaner Group.)

$

$

Not available

975

Briggs & Stratton 591699

BOWL, Float

$64.99

$

Usually ships in 2-12 days

0

1127

Briggs & Stratton 695407

SCREW

Note: (Float Bowl to Carburetor Body)

$4.49

$

In Stock, Qty 20+
